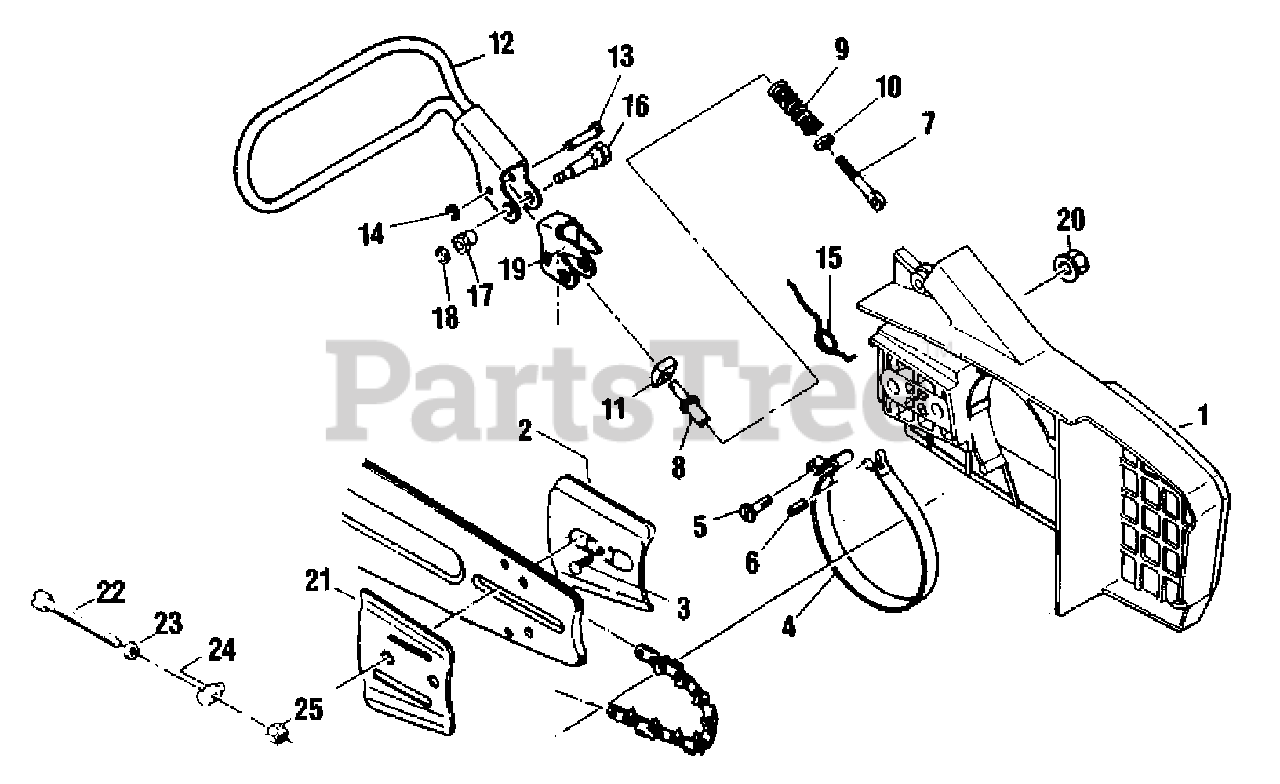

345 - Shindaiwa Chainsaw Clutch Parts Diagram

Chainsaw

Clutch Parts Diagram

  • Title

Echo 72159-54005

CHAIN BRAKE ASSY
(Superseded to Discontinued)

$

$

Not available

Echo 72159-54100

CLUTCH COVER ASSY
(Superseded to Discontinued)

$

$

Not available

1

COVER, CLUTCH

Note: ORDER P/N 72159-54100

$

$

Not available

2

Echo 22104-53120

PLATE, GUIDE - OUTER
(Superseded to C305000160)

$4.99

$

Usually ships in 2-4 days

0

3

Echo 1710025640

RIVET

$

$

Currently unavailable

Echo 72139-53130

NAME PLATE (A)

$

$

Currently unavailable

4

Echo 22116-54210

BAND, BRAKE
(Superseded to C328000200)

$10.99

$

Usually ships in 2-4 days

0

5

Echo 22120-54220

BOLT
(Superseded to V203001430)

$1.99

$

In Stock, only 3 left!

0

6

Echo 22120-54230

PIN, SPRING

$1.49

$

Usually ships in 2-4 days

0

7

Echo 72152-54310

ROD, ADJUST
(Superseded to V253000630)

$

$

Not available

8

Echo 72152-54320

SCREW, ADJUST
(Superseded to A613000050)

$4.49

$

Usually ships in 2-4 days

0

9

Echo 22120-54330

SPRING, BRAKE
(Superseded to V450001150)

$

$

Not available

10

Echo 22120-54340

WASHER
(Superseded to V303000310)

$1.49

$

Usually ships in 2-4 days

0

11

Echo 22120-54410

BLOCK
(Superseded to C321000020)

$7.99

$

Usually ships in 2-4 days

0

12

Echo 22135-54510

LEVER
(Superseded to C320000270)

$52.99

$

Usually ships in 2-4 days

0

13

Echo 22135-54520

STOPPER PIN
(Superseded to V641000190)

$

$

Not available

14

Echo 22120-54530

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

15

Echo 22135-54540

RELIEF SPRING
(Superseded to V452000830)

$

$

Not available

16

Echo 72229-54580

BOLT, LEVER
(Superseded to Discontinued)

$

$

Not available

17

Echo 72229-54590

NUT
(Superseded to Discontinued)

$

$

Not available

18

Echo 02434-30060

RING, SNAP 3 MM
(Superseded to 9240303000)

$1.49

$

In Stock, Qty 6

0

19

Echo 72171-54560

LEVER C
(Superseded to C320000280)

$13.99

$

Usually ships in 2-4 days

0

20

Echo 22120-53210

NUT
(Superseded to V265000190)

$1.99

$

Usually ships in 2-4 days

0

21

Echo 22100-53340

PLATE, GUIDE - INNER
(Superseded to Discontinued)

$

$

Not available

22

Echo 22100-53310

SCREW, ADJUST
(Superseded to 22155-53310)

$1.99

$

In Stock, only 2 left!

0

23

Echo 01610-05080

WASHER, FLAT 5.5×10×0.8
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

24

Echo 22100-53320

STUD, ADJUST
(Superseded to C309000090)

$3.49

$

Usually ships in 2-4 days

0

25

Echo 22100-53330

LOCKNUT
(Superseded to V263000280)

$1.49

$

In Stock, only 3 left!

0
