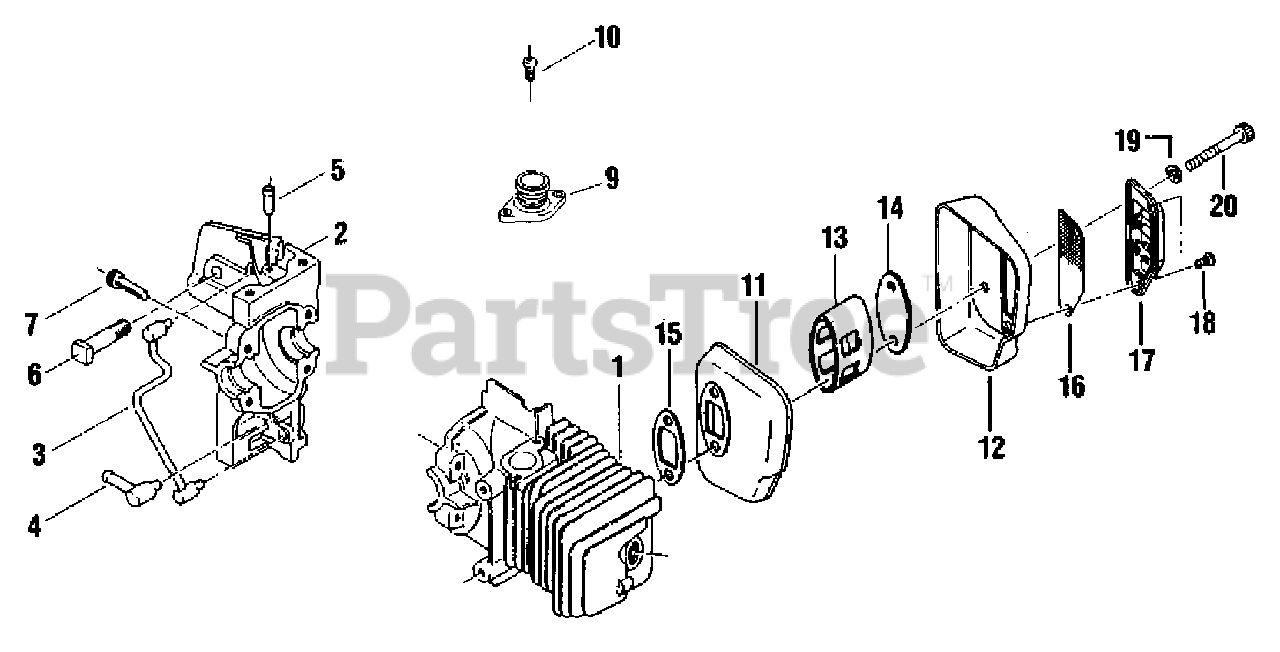

345 - Shindaiwa Chainsaw Crankcase, Cylinder, Muffler Parts Diagram

Chainsaw

Crankcase, Cylinder, Muffler Parts Diagram

  • Title

1

Echo 22106-12110

CYLINDER
(Superseded to Discontinued)

$

$

Not available

Echo 22140-12200

CRANKCASE ASSY

$

$

Currently unavailable

2

------------------

CRANKCASE

Note: ORDER P/N 22140-12200

$

$

Not available

3

Echo 22106-12230

TUBE, CRANKCASE OIL

$10.99

$

Usually ships in 2-4 days

0

4

Echo 22102-12240

ELBOW

Note: SB 13

$

$

Currently unavailable

5

Echo 22102-12250

PULSE JOINT
(Superseded to V186000300)

$2.49

$

Usually ships in 2-4 days

0

6

Echo 22120-12260

BOLT, BAR
(Superseded to V225000130)

$2.49

$

Usually ships in 2-4 days

0

7

Echo 01020-05180

SCREW - 5X18
(Superseded to 90010505018)

$1.49

$

Usually ships in 2-4 days

0

9

Echo 22136-14130

BOOT
(Superseded to A202000120)

Note: REPLACES P/N 22102-14130

$19.99

$

Usually ships in 2-4 days

0

10

Echo 11205-04140

SCREW - 4X14
(Superseded to 9157304014)

$0.99

$

Usually ships in 2-4 days

0

Echo 72159-15002

MUFFLER ASSY
(Superseded to Discontinued)

$

$

Not available

11

Echo 22104-15110

BASE, MUFFLER
(Superseded to A300001340)

$8.99

$

Usually ships in 2-4 days

0

12

Echo 72159-15120

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

13

Echo 22135-15130

BAFFLE, MUFFLER

$9.49

$

Usually ships in 2-4 days

0

14

Echo 22135-15140

PLATE, MUFFLER

$1.99

$

Usually ships in 2-4 days

0

15

Echo 22115-15210

GASKET
(Superseded to V104001520)

$2.49

$

In Stock, only 4 left!

0

16

Echo 72164-15150

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

$

$

Not available

17

Echo 72159-15160

COVER, SCREEN
(Superseded to Discontinued)

$

$

Not available

18

Echo 01210-04080

SCREW - 4X8
(Superseded to 9146104008)

$1.49

$

Usually ships in 2-4 days

0

19

Echo 22100-31210

WASHER
(Superseded to V303000260)

$1.49

$

In Stock, only 1 left!

0

20

Echo 01020-05450

SCREW - 5X45
(Superseded to 90010505045)

$1.49

$

In Stock, Qty 5

0
