345 - Shindaiwa Chainsaw Fuel Tank Parts Diagram

Chainsaw

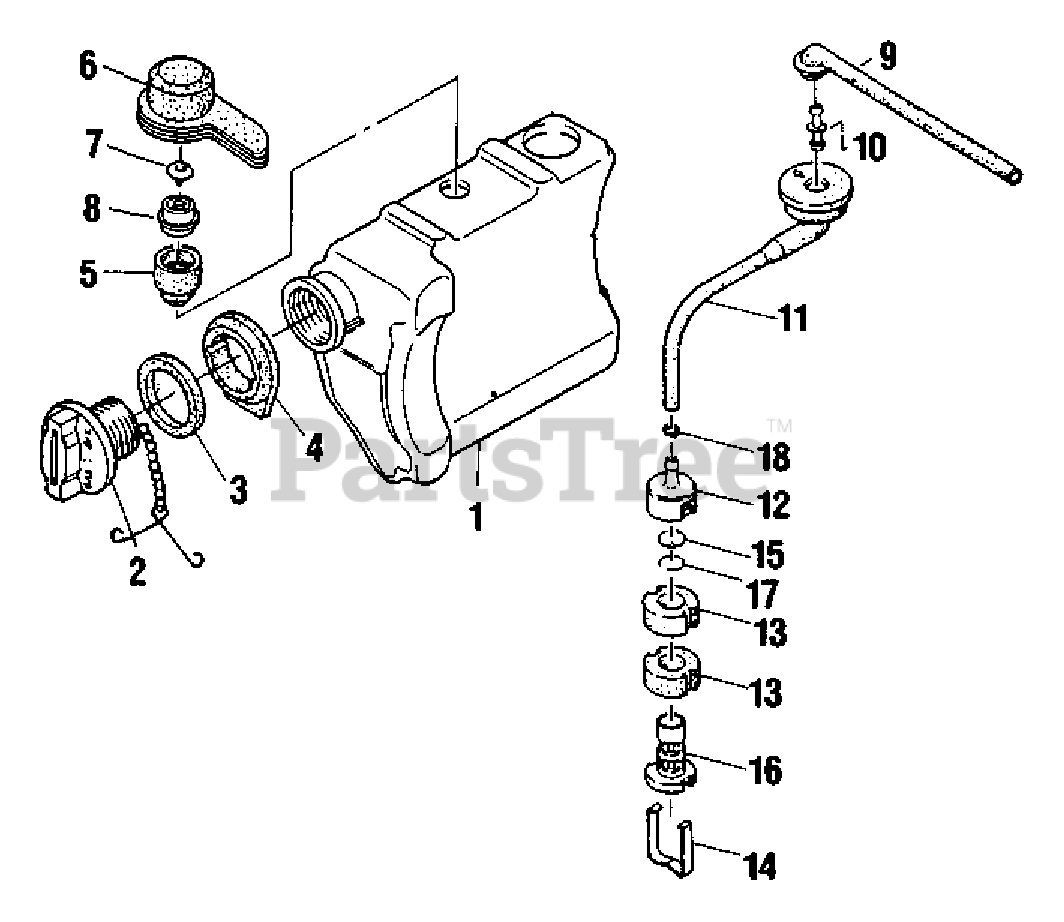

Fuel Tank Parts Diagram

  • Title

Echo 72116-85001

FUEL TANK ASSY
(Superseded to Discontinued)

$

$

Not available

1

Echo 72116-85001

FUEL TANK ASSY
(Superseded to Discontinued)

$

$

Not available

Echo 22128-85200

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 22128-85200

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo 22100-85281

GASKET, CAP
(Superseded to V107000060)

$5.99

$

In Stock, Qty 9

0

4

Echo 22122-85230

SUPPORT, FUEL TANK

$3.49

$

Usually ships in 2-4 days

0

5

Echo 22122-85240

HOLDER, VALVE
(Superseded to V137000110)

$2.49

$

In Stock, Qty 20+

0

6

Echo 22122-85250

CAP, BREATHER
(Superseded to A359000020)

$4.99

$

In Stock, Qty 10

0

7

Echo 22100-85260

VALVE, BREATHER
(Superseded to A356000090)

$4.99

$

In Stock, Qty 8

0

8

Echo 22122-85270

RETAINER, BREATHER
(Superseded to A358000050)

$2.49

$

In Stock, Qty 15

0

9

Echo 22104-85310

PIPE - FUEL
(Superseded to V470001340)

$5.49

$

In Stock, Qty 18

0

10

Echo 22100-85320

CONNECTOR, PIPE
(Superseded to V186000310)

$0.99

$

In Stock, Qty 20+

0

Echo 22115-85301

FUEL PIPE ASSY
(Superseded to P021034110)

$27.99

$

In Stock, only 1 left!

0

11

Echo 22128-85330

PIPE - FUEL
(Superseded to V470001350)

$9.49

$

In Stock, Qty 20+

0

Echo 22115-85401

FILTER, FUEL
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

12

Echo 22128-85410

WEIGHT, FUEL FILTER
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

13

Echo 22128-85421

FILTER, FUEL
(Superseded to A371000000)

$2.99

$

In Stock, Qty 18

0

14

Echo 22128-85440

CLIP, FILTER
(Superseded to V490000750)

$9.49

$

In Stock, Qty 20+

0

15

Echo 22118-85461

SCREEN, FILTER

$

$

Currently unavailable

16

Echo 22128-85470

CASE, FILTER
(Superseded to A372000000)

$

$

Not available

17

Echo 22128-85480

RING, RETAINING
(Superseded to V583000200)

$9.49

$

In Stock, Qty 20+

0

18

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0
