345 - Shindaiwa Chainsaw Oil Pump Parts Diagram

Chainsaw

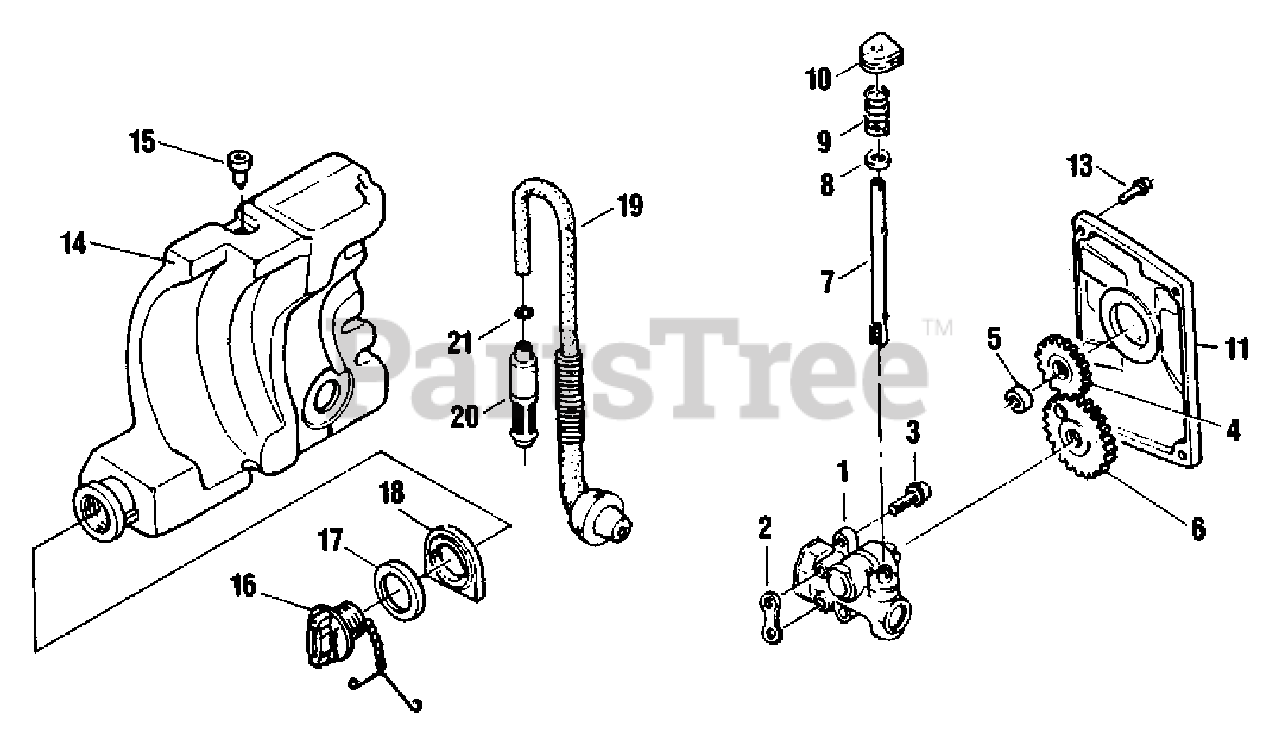

Oil Pump Parts Diagram

  • Title

1

Echo 22136-55200

OIL PUMP ASSY
(Superseded to C022000100)

$98.99

$

Usually ships in 2-4 days

0

2

Echo 22100-55310

GASKET, OIL PUMP
(Superseded to V111000060)

$1.49

$

Usually ships in 2-4 days

0

3

Echo 11206-04140

SCREW - 4X14
(Superseded to 9157404014)

$0.99

$

Usually ships in 2-4 days

0

4

Echo 22102-55130

GEAR - PINION
(Superseded to V060000100)

$9.49

$

In Stock, only 1 left!

0

5

Echo 22102-55141

COLLAR

$8.99

$

Usually ships in 2-4 days

0

6

Echo 22128-55120

GEAR
(Superseded to 22100-55121)

$9.49

$

In Stock, only 1 left!

0

7

Echo 22100-55610

SHAFT, OIL PUMP

$3.99

$

Usually ships in 2-4 days

0

8

Echo 01610-04050

WASHER - 4
(Superseded to 90060000004)

$0.99

$

In Stock, Qty 9

0

9

Echo 22100-55640

SPRING

$

$

Not available

10

Echo 22100-55650

GROMMET

$0.99

$

Usually ships in 2-4 days

0

11

Echo 22104-56110

COVER, PUMP
(Superseded to C236000030)

$4.99

$

Usually ships in 2-4 days

0

13

Echo 11205-04140

SCREW - 4X14
(Superseded to 9157304014)

$0.99

$

Usually ships in 2-4 days

0

Echo 72247-57001

OIL TANK ASSY

Note: PR 70

$

$

Currently unavailable

14

TANK, OIL

Note: ORDER P/N 72247-57001

$

$

Not available

15

Echo 22115-57120

VALVE, OIL
(Superseded to A356000130)

Note: PR 70

$4.99

$

Usually ships in 2-4 days

0

Echo 22128-57200

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

16

------------------

CAP, OIL

Note: ORDER P/N 22128-57200

$

$

Not available

17

Echo 22100-57230

GASKET, CAP
(Superseded to V106000070)

$1.99

$

In Stock, only 1 left!

0

18

Echo 22122-57240

TANK, OIL

$3.49

$

Usually ships in 2-4 days

0

Echo 22122-57301

OIL TUBE ASSY
(Superseded to C021000010)

$16.99

$

Usually ships in 2-4 days

0

19

TUBE, OIL

Note: ORDER P/N 22122-57301

$

$

Not available

20

Echo 22100-57360

FILTER, OIL

$

$

Currently unavailable

21

Echo 22100-57370

CLIP
(Superseded to V490000740)

$0.99

$

Usually ships in 2-4 days

0
