3450 - Poulan Chainsaw Handle & Bar Assembly Parts Diagram

Chainsaw

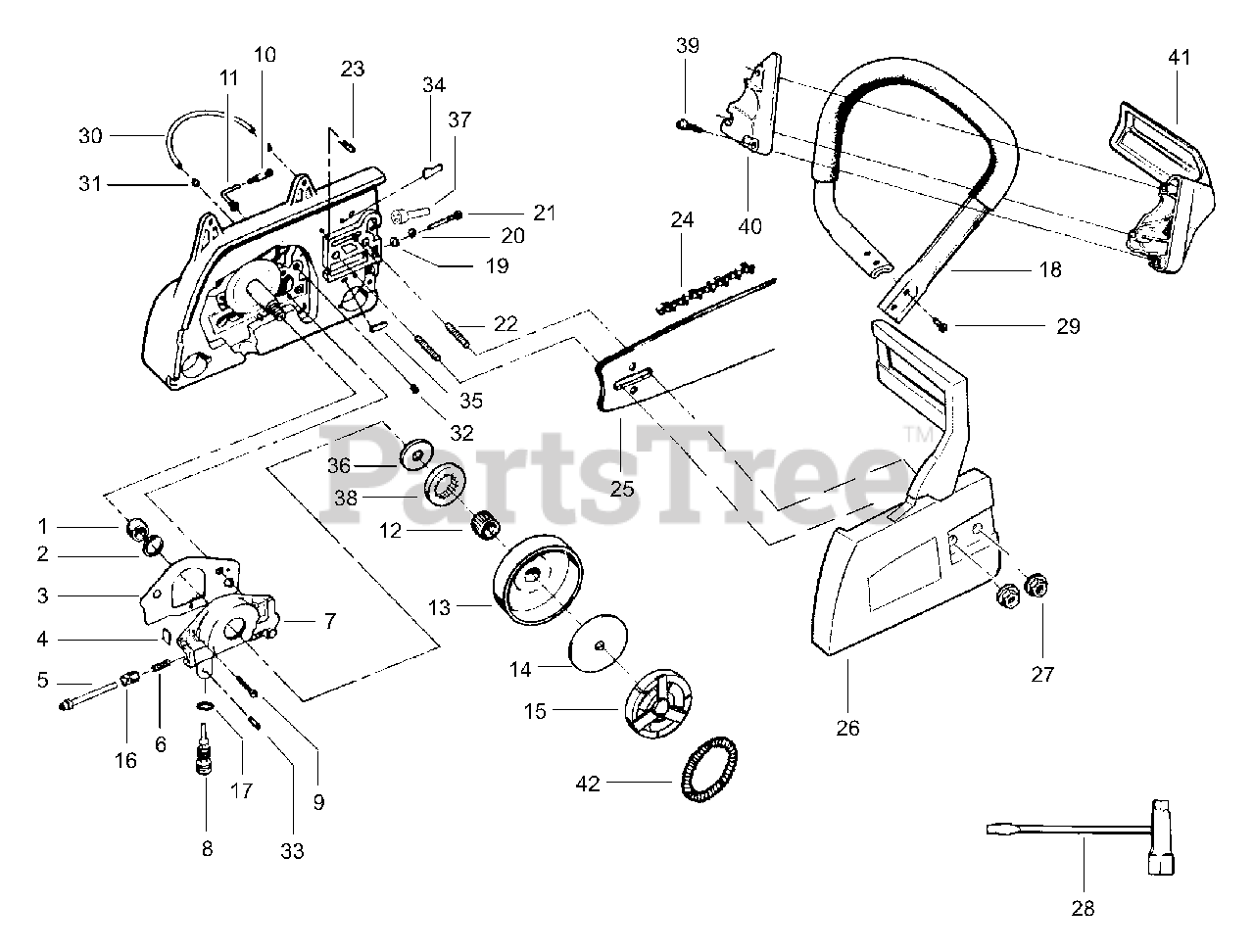

Handle & Bar Assembly Parts Diagram

  • Title

1

Poulan 530027140

Worm Gear

$

$

Not available

2

Poulan 530019147

Seal

$

$

Not available

3

Poulan 530069487

Gasket Kit

$

$

Not available

4

Poulan 530027128

Dust Plug

$

$

Not available

5

Poulan 530014204

Plunger

$

$

Not available

6

Poulan 530027126

Spring

$

$

Not available

7

Poulan 530069218

Oil Pump Ass'y.

$

$

Not available

8

Poulan 530015873

Oiler Adjustment Screw

$

$

Not available

9

Poulan 530015871

Screw
(Superseded to 530015650)

$

$

Not available

10

Poulan 530027272

Oil Pickup & Filter

$

$

Not available

11

Poulan 530027192

Oiler Intake Line

$

$

Not available

12

Poulan 530032049

Clutch Bearing

$

$

Not available

13

Poulan 530048083

Drum Sprocket

$

$

Not available

14

Poulan 530027161

Clutch Plate

$

$

Not available

15

Poulan 530014161

Clutch Ass'y. Model 3450 T1 & T2 & T4

$

$

Not available

15

Poulan 530049418

Clutch Ass'y. Model 3750 T1 & T2, 3450 T3

$

$

Not available

16

Poulan 530027129

Oiler Gear Spur

$

$

Not available

17

Poulan 530019079

"O" Ring

$

$

Not available

18

Poulan 530047163

Handlebar Ass'y.
(Superseded to 530053350)

$

$

Not available

19

Poulan 530023064

Bar Adjusting Pin

$5.99

$

Usually ships in 3-10 days

0

20

Poulan 530038593

Retainer

$3.49

$

In Stock, Qty 12

0

21

Poulan 530016110

Screw

$3.49

$

In Stock, Qty 10

0

22

Poulan 530016238

Bar Stud

$

$

Not available

23

Poulan 530015108

Vent Pin

$3.49

$

In Stock, only 2 left!

0

24

Poulan 952051266

Chain Model 3450-20" (72LXP)

$

$

Not available

24

Poulan 952051459

Chain Model 3750-22" (72LXP)

$

$

Not available

25

Poulan 952044544

Bar Model 3450-20" (SN)
(Superseded to 530044739)

$

$

Not available

25

Poulan 952044723

Bar Model 3750-22" (SN)

$37.99

$

Usually ships in 3-10 days

0

26

Poulan 507476721

Chainbrake (Type 4)

$

$

Not available

27

Poulan 530015251

Nut

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 530031135

Scrench Silver finish (1/2" x 3/4")
(Superseded to 587417201)

$9.49

$

In Stock, Qty 5

0

28

Poulan 530031146

Scrench Gold finish (9/16" x 3/4")
(Superseded to 501691701)

$

$

Not available

29

Poulan 530016058

Screw

$

$

Not available

30

Poulan 530021061

Oiler Discharge Line

$

$

Not available

31

Poulan 530002464

Oiler Discharge Sleeve

$3.49

$

In Stock, only 1 left!

0

32

Poulan 530015422

Tubing Nut

$

$

Not available

33

Poulan 530015752

Oiler Adjustment Pin

$

$

Not available

34

Poulan 530027222

Chain Pad- Top

$

$

Not available

35

Poulan 530027223

Chain Pad

$

$

Not available

36

Poulan 530015733

Thrust Washer

$4.99

$

In Stock, only 4 left!

0

37

Poulan 530029236

Crankcase Plug

$

$

Not available

38

Poulan 530048098

Rim Floating (3/8)

$

$

Not available

39

Poulan 530015509

Screw-Handguard (Type 1-3 only

$3.49

$

In Stock, only 2 left!

0

40

Poulan 530024467

Cap-Handguard (Type 1-3 only)

$

$

Not available

41

Poulan 530024466

Handguard (Type 1-3 only)

$

$

Not available

42

Poulan 530027160

Spring- Clutch

$

$

Not available
