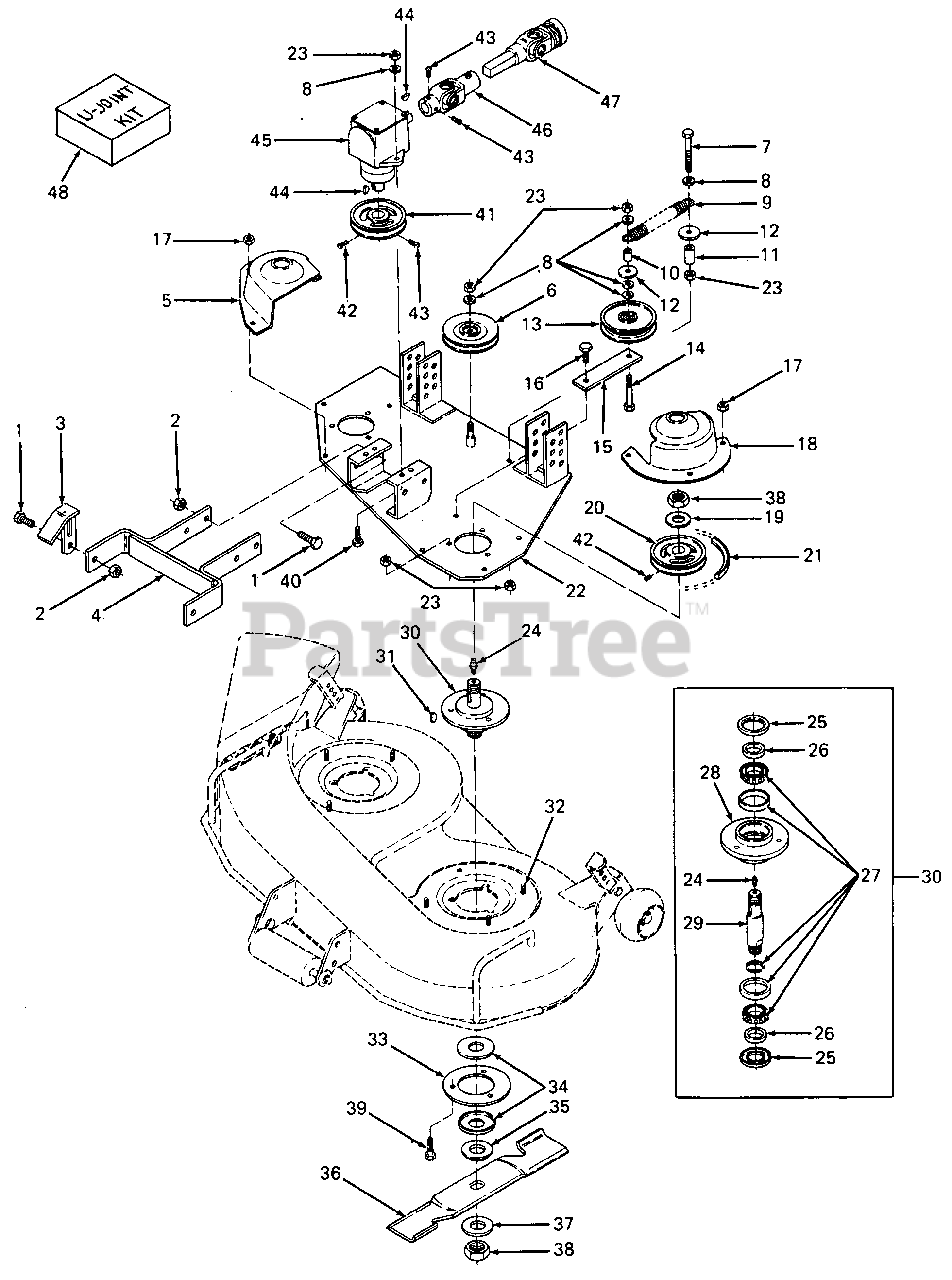

346 (190D346-100) - Cub Cadet 38" Mower Deck for GMT Deck Plate Assembly, Spindles & Blades Parts Diagram

38" Mower Deck for GMT

Deck Plate Assembly, Spindles & Blades Parts Diagram

  • Title

1

Cub Cadet 710-0865

Screw, Hex Cap, 1/2-13 X 1.0 Lg GR5

$

$

Not available

2

Cub Cadet 712-0384

Nut, Hex Center Lock, 1/2-13
(Superseded to 912-0384)

$7.49

$

In Stock, only 3 left!

0

3

Cub Cadet TE-1000566

Hanger Assy, Deck w/Graphic

$

$

Not available

4

Cub Cadet TE-1000332

Deck Yoke

$

$

Not available

5

Cub Cadet TE-1000368

Cover, Belt, RH
(Superseded to 703-3237-4021)

$66.99

$

Usually ships in 3-6 days

0

6

Cub Cadet TE-1000312

Pulley, Idler

$

$

Not available

7

Cub Cadet 710-0756

Screw, Hex Cap, 3/8-16 X 2.25 Lg

$

$

Not available

8

Cub Cadet 736-0185

Washer, Flat, .406 X .734 X .063

$4.49

$

In Stock, only 4 left!

0

9

Cub Cadet TE-1000298

Spring, Idler Extension

$

$

Not available

10

Cub Cadet TE-1000424

Spacer

$

$

Currently unavailable

11

Cub Cadet TE-1000193

Spacer

$

$

Currently unavailable

12

Cub Cadet TE-1000361

Washer

$

$

Currently unavailable

13

Cub Cadet TE-1000311

Pulley, Idler

$

$

Not available

14

Cub Cadet 710-3066

Screw, Hex Cap, 3/8-16 X 2-3/4 Lg

$5.99

$

In Stock, Qty 7

0

15

Cub Cadet TE-1000407

Idler, Mower

$

$

Not available

16

Cub Cadet 738-0269

Screw, Shoulder

$

$

Not available

17

Cub Cadet 712-0158

Nut, Hex Center Lock, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

18

Cub Cadet TE-1000370

Cover, Belt, LH

$

$

Currently unavailable

19

Cub Cadet TE-131019

Washer, Flat

$

$

Not available

20

Cub Cadet TE-1000396

Pulley, Spindle

$

$

Not available

21

Cub Cadet TE-1000313

Belt, Mower

$

$

Not available

22

Cub Cadet TE-1000568

Plate, Deck

$

$

Not available

23

Cub Cadet 712-0375

Nut, Hex Center Lock, 3/8-16

$4.99

$

In Stock, only 1 left!

0

24

Cub Cadet TE-1000340

Fitting, Grease

$

$

Not available

25

Cub Cadet TE-1000397

Seal, Lip

$

$

Currently unavailable

26

Cub Cadet TE-1000392

Ring, Seal

$

$

Currently unavailable

27

Cub Cadet TE-1000398

Bearing Assy, Tapered

$

$

Not available

28

Cub Cadet TE-1000395

Housing, Spindle

$

$

Currently unavailable

29

Cub Cadet TE-1000391

Shaft, Spindle

$

$

Not available

30

Cub Cadet TE-1000399

Spindle Assy

$

$

Not available

31

Cub Cadet 714-0134

Key, Hi-Pro, 1/4 X 1
(Superseded to 714-04059)

$7.49

$

In Stock, only 4 left!

0

32

Cub Cadet TE-942517

Bolt, Tap

$

$

Currently unavailable

33

Cub Cadet TE-1000335

Ring, Spindle

$

$

Currently unavailable

34

Cub Cadet TE-1000394

Shield, Bearing
(Superseded to 703-2184)

$12.99

$

Usually ships in 3-6 days

0

35

Cub Cadet TE-1000393

Ring, Blade Support

$

$

Currently unavailable

36

Cub Cadet 759-3497

Blade, Mower, 19.38 Lg

$

$

Not available

Cub Cadet 759-3498

Blade, Mower, Hard Coated, 19.38 Lg

$

$

Not available

37

Cub Cadet TE-131002

Washer, Flat

$

$

Currently unavailable

38

Cub Cadet TE-426899

Nut, Jam

$

$

Not available

39

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 X 1-1/2 Lg GR5

$4.99

$

In Stock, Qty 20+

0

40

Cub Cadet 710-0342

Screw, Hex Cap, 3/8-16 X 1-1/4 Lg
(Superseded to 710-3005)

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet TE-1000314

Pulley, Deck Gearbox

$

$

Not available

42

Cub Cadet TE-102882

Setscrew, 5/16-18 x 5/8 Sq Hd Cup

$

$

Not available

43

Cub Cadet TE-102881

Setscrew, 5/16-18 x .50 Sq Hd Cup

$

$

Not available

44

Cub Cadet 714-0126

Key, Hi-Pro, 3/16 X .75 HDN

$4.99

$

In Stock, Qty 20+

0

45

Cub Cadet TE-1000315

Gearbox, Right Angle

$

$

Currently unavailable

46

Cub Cadet TE-1000316

Driveshaft, Female

$

$

Not available

47

Cub Cadet TE-1000317

Driveshaft, Quick Disconnect

$

$

Not available

48

Cub Cadet TE-1000544

Kit, U-Joint Service

$

$

Not available
