346 XP - Husqvarna Chainsaw (2011-01) CHAIN BRAKE CLUTCH COVER Parts Diagram

Chainsaw

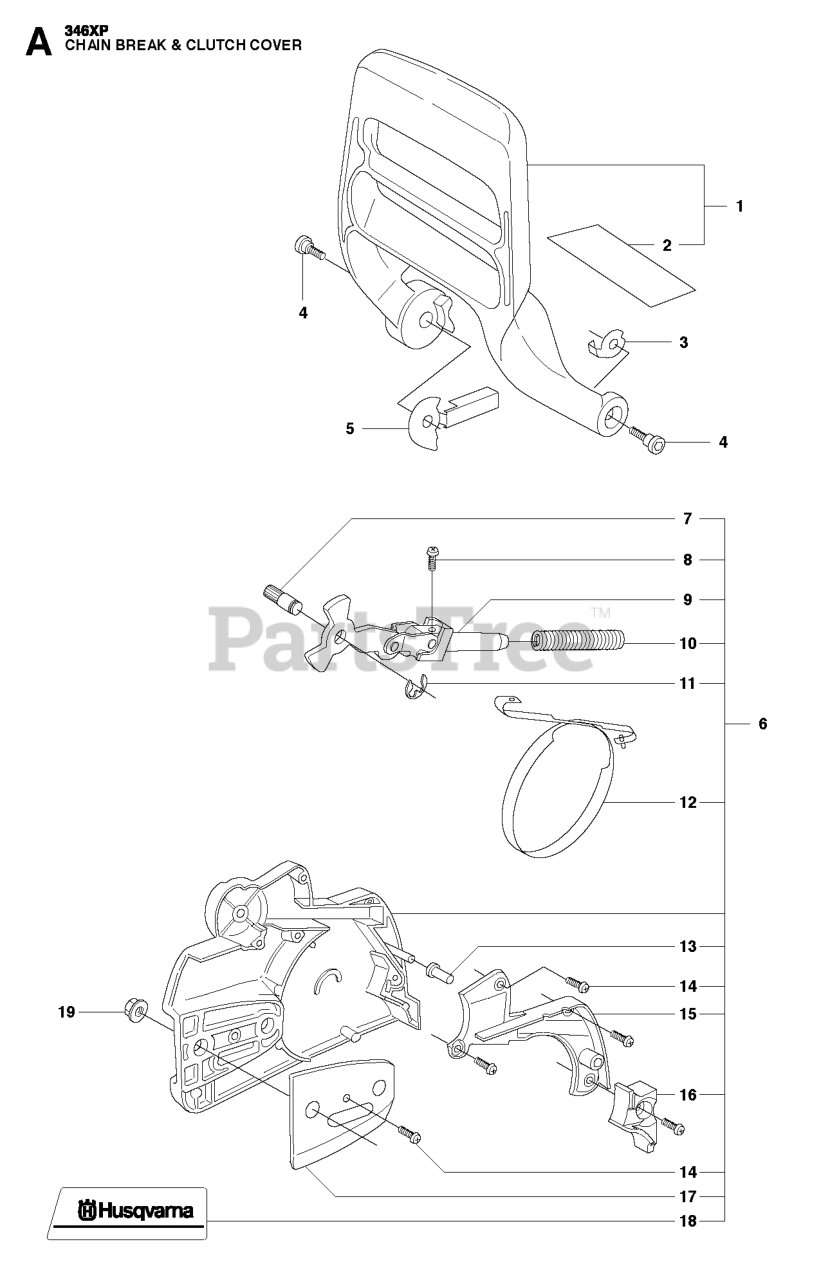

CHAIN BRAKE CLUTCH COVER Parts Diagram

  • Title

1

Husqvarna 537152801

CHAINBRAKE HANDLE

$53.99

$

In Stock, only 4 left!

0

2

Husqvarna 537152701

PROTECTOR
(Superseded to 537159302)

$33.99

$

In Stock, only 1 left!

0

3

Husqvarna 503929501

WASHER

Note: . 1

$

$

Not available

4

Husqvarna 503893003

SCREW

$

$

Not available

5

Husqvarna 537029901

PROTECTOR

$

$

Not available

6

Husqvarna 537107804

CHAIN BRAKE SILVER

Note: grey 346XP

$

$

Not available

7

Husqvarna 503892901

PIN

Note: . 6

$3.99

$

In Stock, Qty 7

0

8

Husqvarna 503217010

SCREW

Note: . 6

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 503890802

JOINT

Note: . 6

$26.99

$

In Stock, Qty 5

0

10

Husqvarna 503465901

SPRING

Note: . 6

$8.49

$

In Stock, Qty 13

0

11

Husqvarna 735310820

E-RING 4

Note: . 6

$3.99

$

In Stock, Qty 6

0

12

Husqvarna 537043001

BRAKE BAND

Note: . 6

$

$

Not available

13

Husqvarna 503855201

SLEEVE

Note: . 6

$5.99

$

In Stock, only 2 left!

0

14

Husqvarna 503217072

SCREW

Note: . 6

$4.99

$

In Stock, only 3 left!

0

15

Husqvarna 537108002

COVER

Note: . 6

$13.99

$

In Stock, Qty 5

0

16

Husqvarna 537089001

PROTECTOR

Note: . 6

$7.49

$

In Stock, only 2 left!

0

17

Husqvarna 503856601

PLATE

Note: . 6

$6.99

$

In Stock, only 2 left!

0

18

Husqvarna 537370401

DECAL

Note: . 6

$

$

Not available

19

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0
