346 XP - Husqvarna Chainsaw (2011-01) HANDLE CONTROLS Parts Diagram

Chainsaw

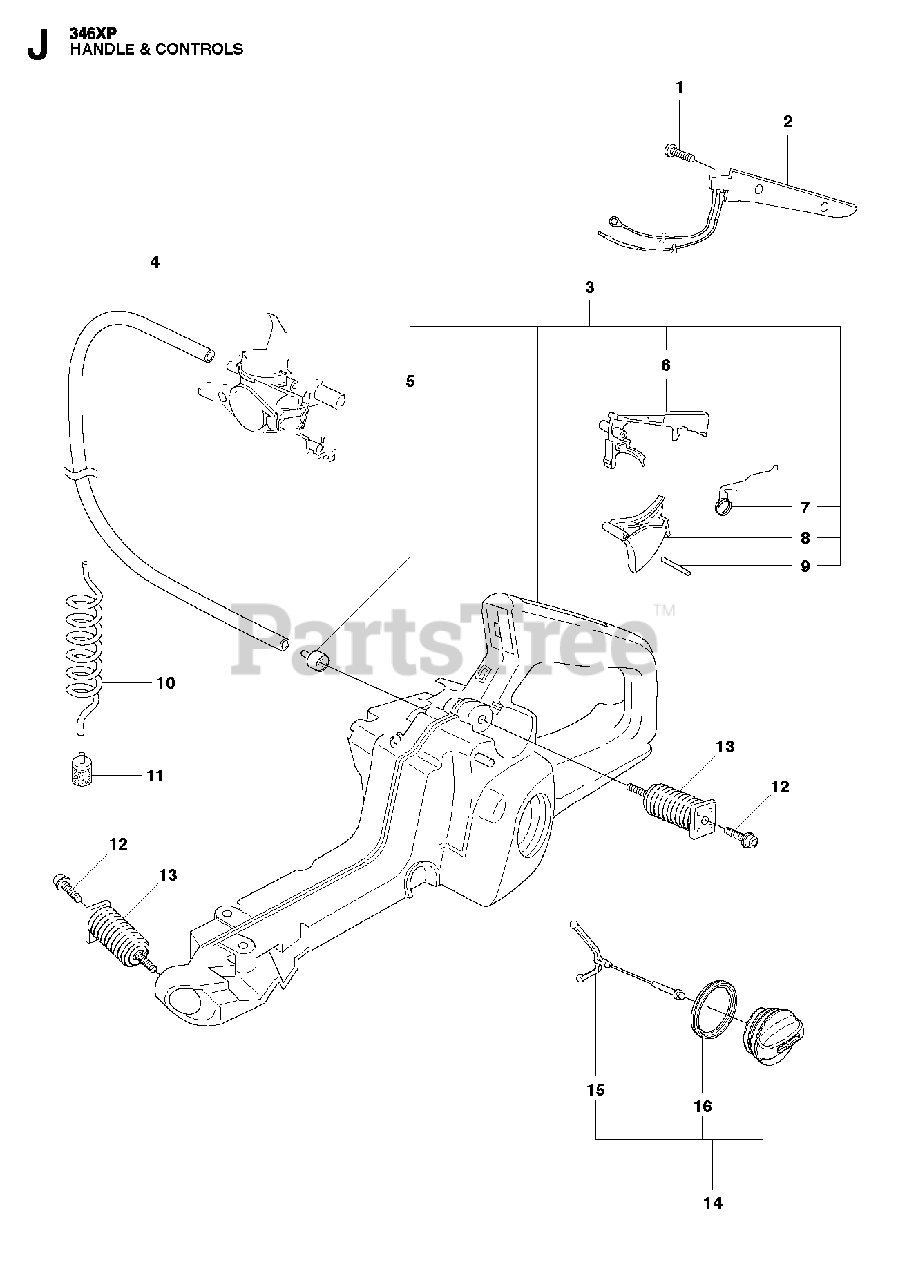

HANDLE CONTROLS Parts Diagram

  • Title

1

Husqvarna 503213801

SCREW

Note: XPG

$

$

Not available

2

Husqvarna 503926102

HANDLE CIRCUIT

Note: XPG

$

$

Not available

3

Husqvarna 503863703

TANK UNIT

$

$

Not available

4

Husqvarna 544324920

FUEL HOSE
(Superseded to 581756120)

$

$

Not available

5

Husqvarna 537359501

FUEL TANK VENT
(Superseded to 501152901)

Note: . 3

$20.99

$

In Stock, Qty 5

0

6

Husqvarna 503854401

THROTTLE LOCK

Note: . 3

$7.99

$

In Stock, only 3 left!

0

7

Husqvarna 503998601

SPRING

Note: . 3

$9.49

$

In Stock, Qty 6

0

8

Husqvarna 503854501

TRIGGER

Note: . 3

$6.99

$

In Stock, only 1 left!

0

9

Husqvarna 720182520

PIN

Note: . 3

$2.99

$

In Stock, Qty 10

0

10

Husqvarna 544325002

FUEL HOSE
(Superseded to 591375201)

$5.99

$

In Stock, Qty 10

0

11

Husqvarna 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

12

Husqvarna 503218876

SCREW

$5.99

$

In Stock, Qty 7

0

13

Husqvarna 503854101

VIBRATION ABSORBER

$17.99

$

In Stock, only 2 left!

0

14

Husqvarna 537215202

TANK CAP
(Superseded to 537215207)

Note: Std

$11.99

$

In Stock, Qty 16

0

14

Husqvarna 537215203

TANK CAP
(Superseded to 537215208)

Note: E-tech

$13.99

$

In Stock, only 1 left!

0

15

Husqvarna 503578901

TANK LOCK

Note: . 14

$5.99

$

In Stock, Qty 10

0

16

Husqvarna 537215001

SEALING
(Superseded to 589241101)

Note: . 14

$6.99

$

In Stock, Qty 5

0
