346 XP - Husqvarna Chainsaw (SN: 20012200001 - 20032200000) STARTER Parts Diagram

Chainsaw

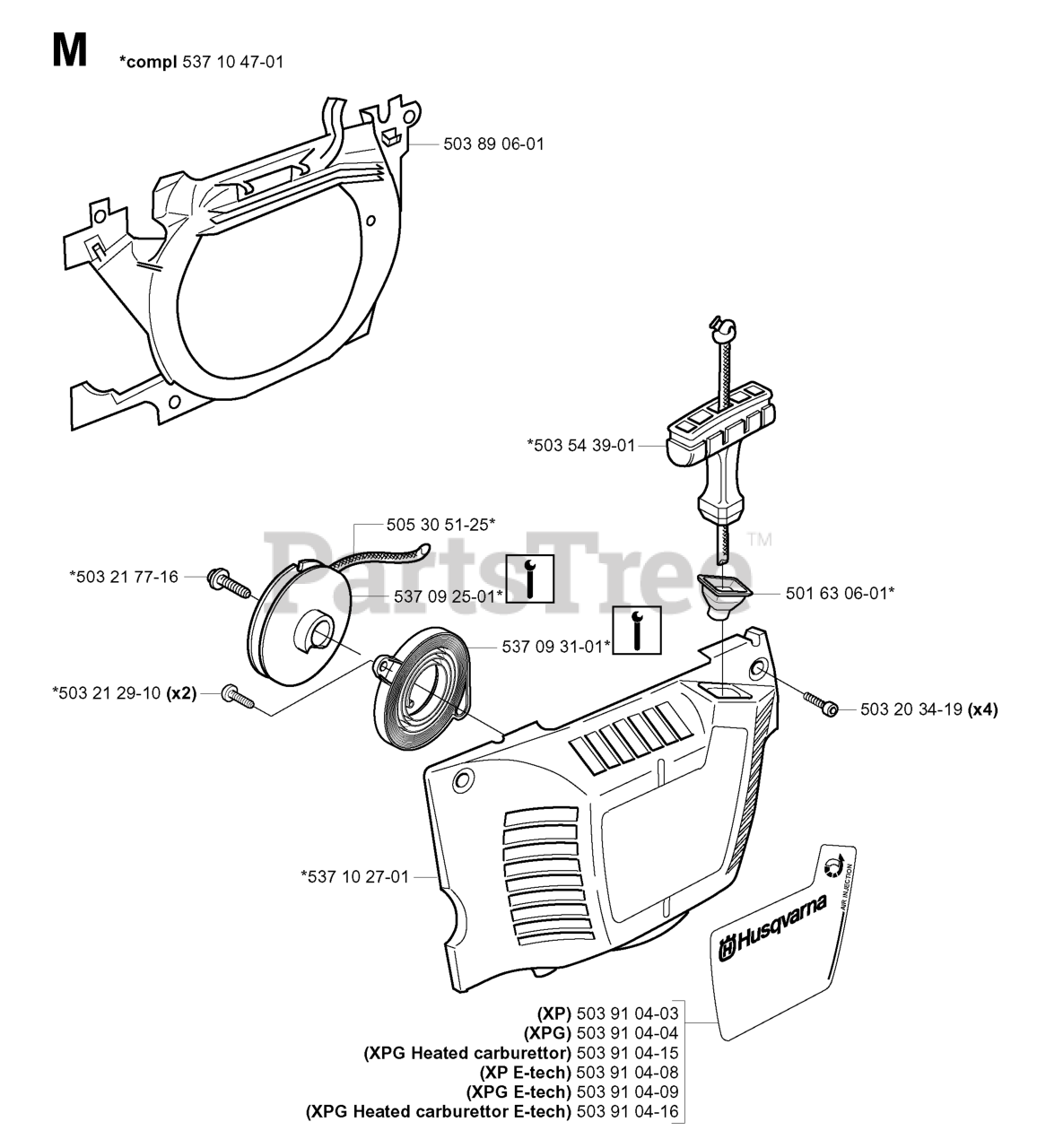

STARTER Parts Diagram

  • Title

503 20 34-19

Husqvarna 503203419

SCREW.CCRPANMO.M5X19 10.9 TBO

$3.99

$

In Stock, Qty 20+

0

503 91 04-08

Husqvarna 503910408

Decal

Note: XP E-TECH

$

$

Not available

503 91 04-15

Husqvarna 503910415

(XPG Heated carburetor)

Note: XPG HEATED CARBURETTOR

$

$

Not available

503 54 39-01

Husqvarna 503543901

STARTER HANDLE

$11.99

$

In Stock, only 1 left!

0

537 10 47-01

Husqvarna 537104701

STARTER ASSY
(Superseded to 537104702)

$

$

Not available

503 21 29-10

Husqvarna 503212910

SCREW

$3.49

$

In Stock, only 2 left!

0

537 10 27-01

Husqvarna 537102701

%HOUSING
(Superseded to 537102702)

$

$

Not available

503 21 77-16

Husqvarna 503217716

SCREW

$4.99

$

In Stock, only 2 left!

0

503 91 04-03

Husqvarna 503910403

DECAL
(Superseded to 537370504)

Note: XP

$

$

Not available

503 89 06-01

Husqvarna 503890601

AIR CONDUCTOR
(Superseded to 598007601)

$8.49

$

In Stock, Qty 6

0

505 30 51-25

Husqvarna 505305125

STARTER ROPE

$10.99

$

In Stock, Qty 9

0

537 09 31-01

Husqvarna 537093101

RETURN SPRING

$21.99

$

Usually ships in 3-10 days

0

503 91 04-04

Husqvarna 503910404

Decal

Note: XPG

$

$

Not available

501 63 06-01

Husqvarna 501630601

SLEEVE

$10.99

$

In Stock, only 3 left!

0

503 91 04-16

Husqvarna 503910416

(XPG Heated carburetor E-tech)

Note: XPG HEATED CARBURETTOR E-TECH

$

$

Not available

503 91 04-09

Husqvarna 503910409

Decal

Note: XPG E-TECH

$

$

Not available

537 09 25-01

Husqvarna 537092501

PULLEY
(Superseded to 537092502)

$17.99

$

In Stock, only 3 left!

0
