346 XP - Husqvarna Chainsaw (SN: 20032200001 - 20041000000) CRANKCASE Parts Diagram

Chainsaw

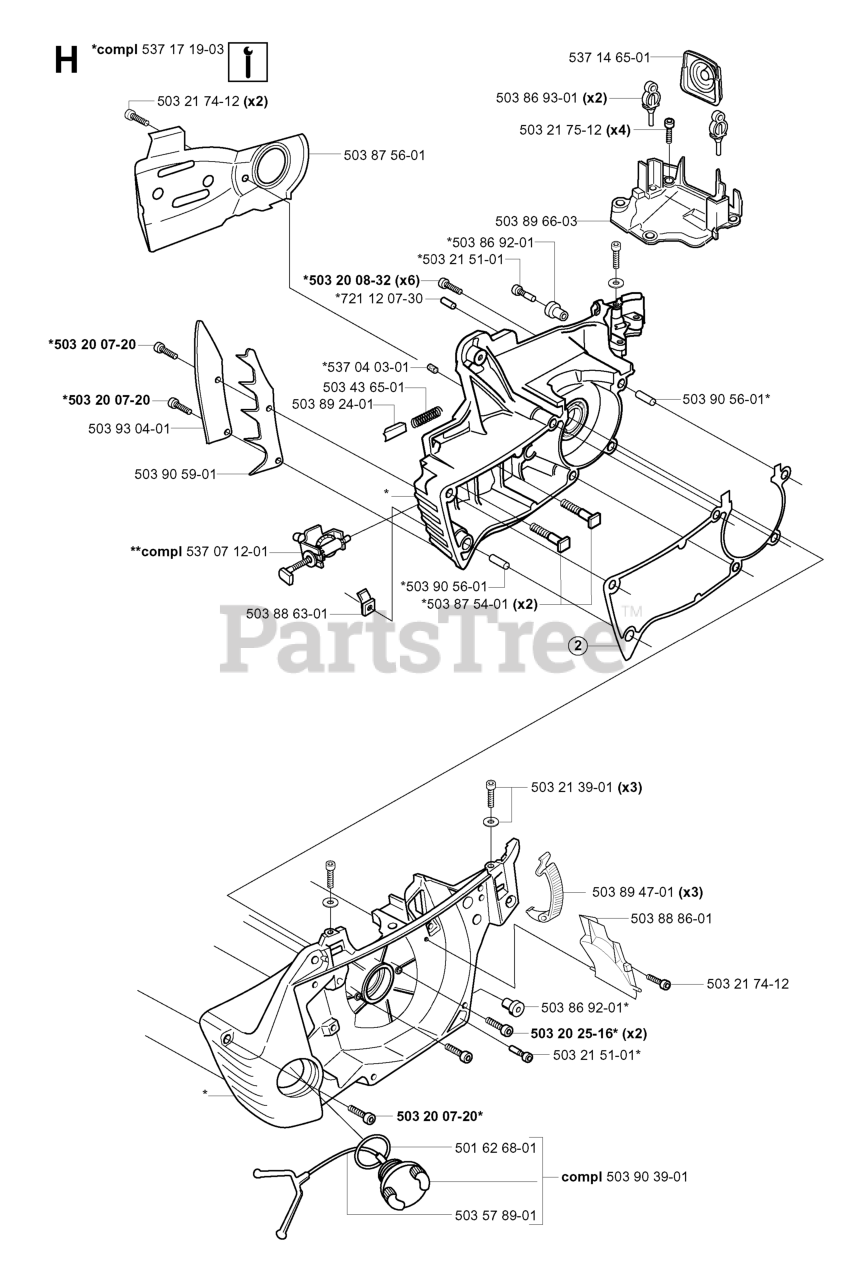

CRANKCASE Parts Diagram

  • Title

503 21 51-01

Husqvarna 503215101

SCREW

$7.49

$

In Stock, Qty 11

0

503 90 39-01

Husqvarna 503903901

OIL CAP
(Superseded to 537281502)

$13.99

$

In Stock, only 2 left!

0

503 21 74-12

Husqvarna 503217412

SCREW

$6.49

$

In Stock, Qty 10

0

503 57 89-01

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

503 21 39-01

Husqvarna 503213901

SCREW

$4.99

$

Usually ships in 3-10 days

0

503 88 63-01

Husqvarna 503886301

CHAIN CATCHER

$10.99

$

In Stock, Qty 15

0

537 14 65-01

Husqvarna 537146501

BELLOWS

$24.99

$

In Stock, Qty 7

0

503 89 47-01

Husqvarna 503894701

BUCKLE ORANGE

$14.99

$

In Stock, Qty 14

0

503 20 07-20

Husqvarna 503200720

SCREW
(Superseded to 503200220)

$6.49

$

In Stock, Qty 20+

0

503 86 93-01

Husqvarna 503869301

SUPPORT

$8.49

$

Usually ships in 3-10 days

0

503 20 08-32

Husqvarna 503200832

SCREW

$5.99

$

In Stock, only 2 left!

0

503 43 65-01

Husqvarna 503436501

LOCK SPRING

$7.49

$

In Stock, Qty 14

0

503 90 56-01

Husqvarna 503905601

Sleeve

$

$

Not available

503 21 75-12

Husqvarna 503217512

SCREW

$4.99

$

In Stock, only 2 left!

0

503 89 24-01

Husqvarna 503892401

CATCH

$9.99

$

In Stock, Qty 5

0

503 21 74-12

Husqvarna 503217412

SCREW

$6.49

$

In Stock, Qty 10

0

503 20 25-16

Husqvarna 503202516

SCREW

$4.99

$

In Stock, only 2 left!

0

503 93 04-01

Husqvarna 503930401

BUMPER

$9.99

$

Usually ships in 3-10 days

0

721 12 07-30

Husqvarna 721120730

PIN

$4.99

$

In Stock, only 1 left!

0

537 17 19-03

Husqvarna 537171903

CRANKCASE ASSY.
(Superseded to 537171905)

$261.99

$

Usually ships in 3-10 days

0

503 86 92-01

Husqvarna 503869201

MOVEMENT LIMITER

$9.99

$

In Stock, Qty 16

0

503 90 59-01

Husqvarna 503905901

SPIKE

$14.99

$

In Stock, only 1 left!

0

503 87 54-01

Husqvarna 503875401

BOLT

$9.99

$

In Stock, Qty 14

0

537 07 12-01

Husqvarna 537071201

CHAIN TENSIONER

$47.99

$

In Stock, only 4 left!

0

503 87 56-01

Husqvarna 503875601

PLATE

$15.99

$

In Stock, only 4 left!

0

501 62 68-01

Husqvarna 501626801

OILCAP GASKET

$7.49

$

In Stock, Qty 8

0

503 88 86-01

Husqvarna 503888601

DEFLECTOR

$10.99

$

In Stock, only 1 left!

0

503 89 66-03

Husqvarna 503896603

BASE

$4.99

$

Usually ships in 3-10 days

0

537 04 03-01

Husqvarna 537040301

VALVE

$6.99

$

In Stock, Qty 11

0
