346 XP - Husqvarna Chainsaw (SN: 20032200001 - 20041000000) CYLINDER PISTON Parts Diagram

Chainsaw

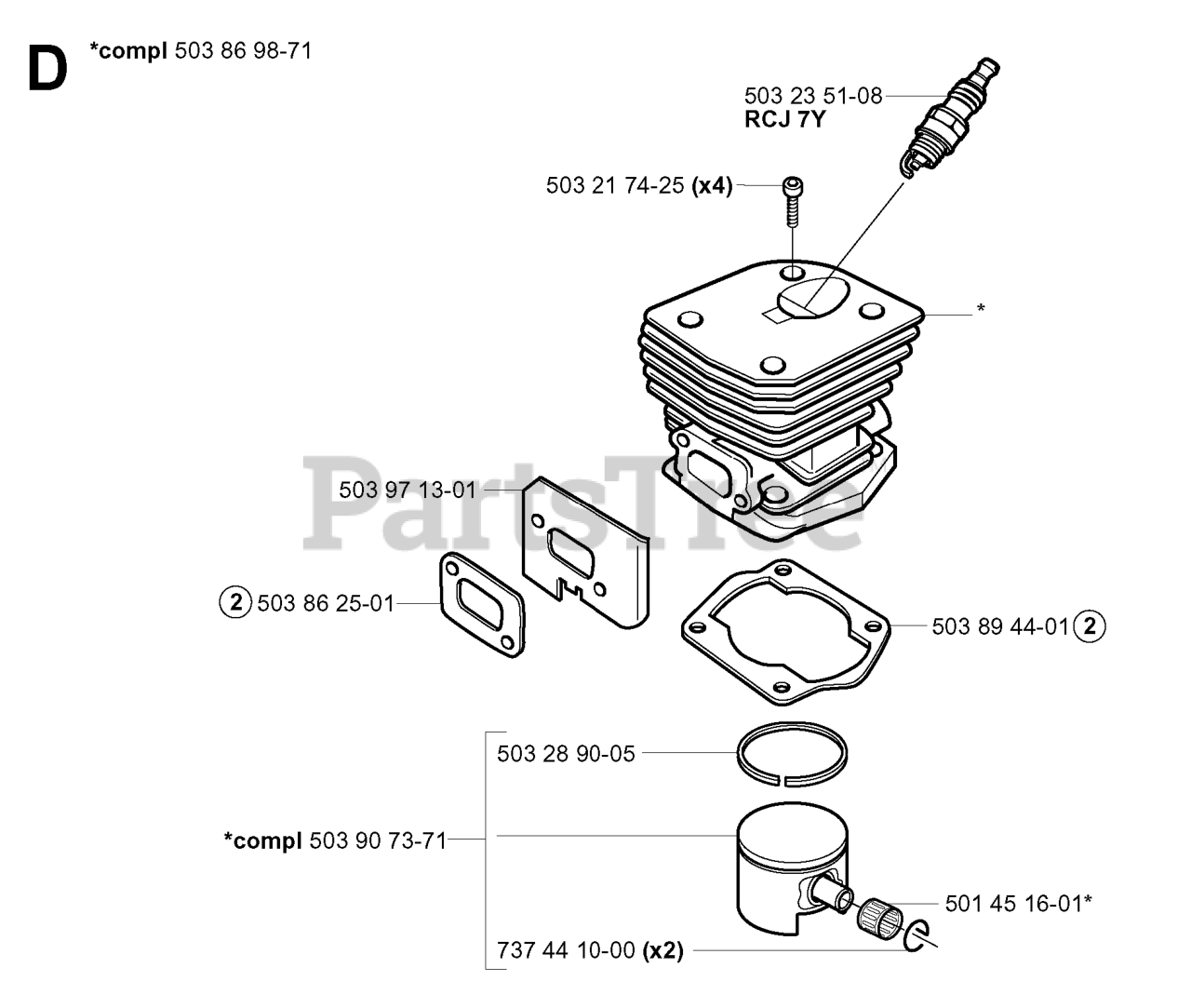

CYLINDER PISTON Parts Diagram

  • Title

503 23 51-08

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235111)

Note: RCJ 7Y

$3.99

$

In Stock, Qty 20+

0

503 97 13-01

Husqvarna 503971301

GUARD

$12.99

$

In Stock, only 3 left!

0

503 89 44-01

Husqvarna 503894401

GASKET

$8.99

$

In Stock, Qty 20+

0

503 86 25-01

Husqvarna 503862501

GASKET

$7.49

$

In Stock, Qty 20+

0

503 86 98-71

Husqvarna 503869871

CYLINDER

$

$

Not available

503 28 90-05

Husqvarna 503289005

PISTON RING

$31.99

$

In Stock, only 3 left!

0

501 45 16-01

Husqvarna 501451601

SUPPORT BUSHING
(Superseded to 503256302)

$27.99

$

In Stock, only 1 left!

0

503 21 74-25

Husqvarna 503217425

SCREW
(Superseded to 503215525)

$6.49

$

In Stock, Qty 11

0

737 44 10-00

Husqvarna 737441000

LOCKING RING

$6.49

$

In Stock, Qty 8

0

503 90 73-71

Husqvarna 503907371

PISTON ASSY

$102.99

$

In Stock, only 1 left!

0
