346 XP - Husqvarna Chainsaw (SN: 20032200001 - 20041000000) FUEL TANK Parts Diagram

Chainsaw

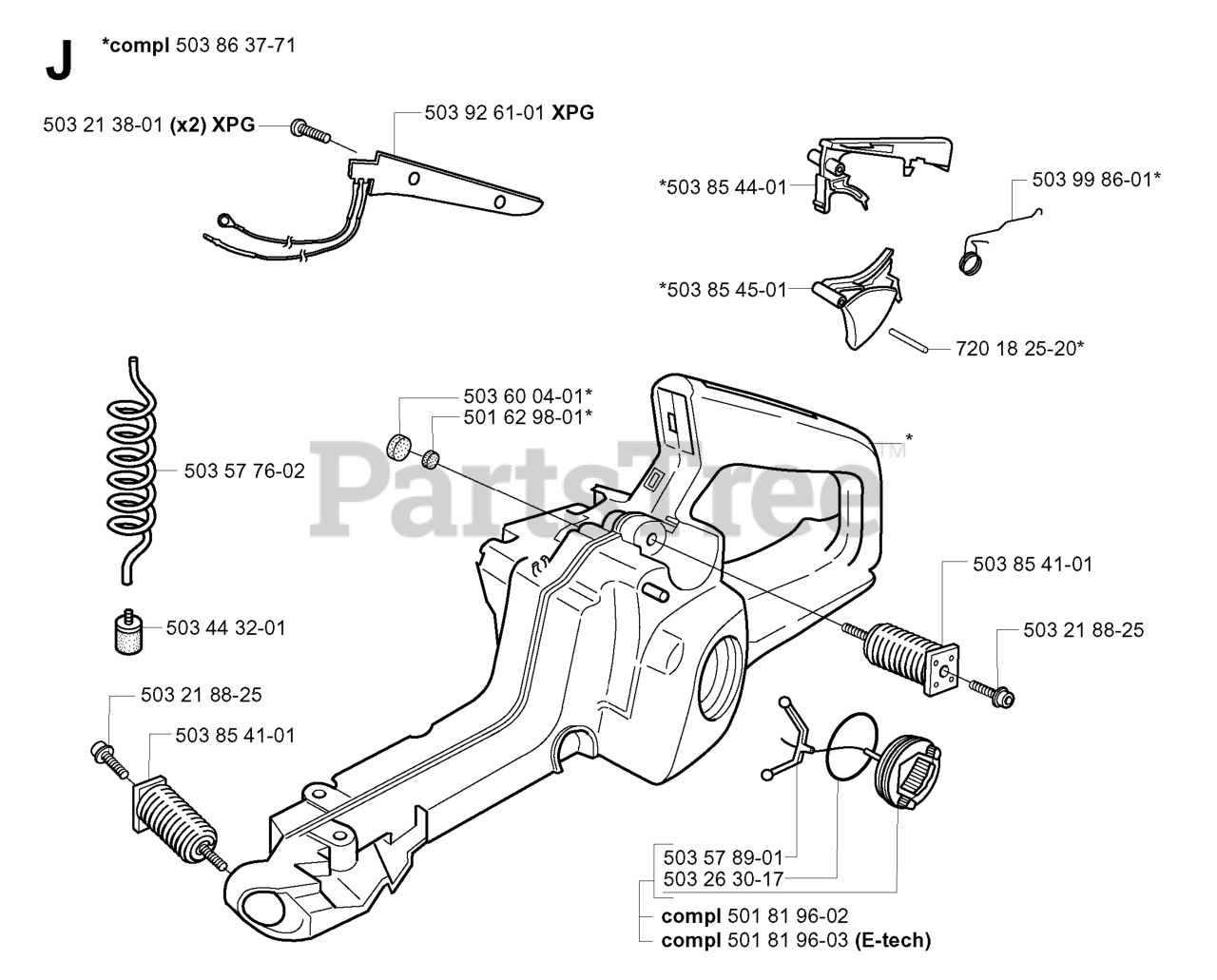

FUEL TANK Parts Diagram

  • Title

501 81 96-03

Husqvarna 501819603

FUEL CAP/GREEN
(Superseded to 537215208)

Note: E-TECH

$10.99

$

In Stock, only 1 left!

0

503 57 89-01

Husqvarna 503578901

TANK LOCK

$7.49

$

In Stock, Qty 5

0

503 85 41-01

Husqvarna 503854101

VIBRATION ABSORBER

$21.99

$

In Stock, Qty 5

0

503 99 86-01

Husqvarna 503998601

SPRING

$9.49

$

In Stock, Qty 7

0

503 57 76-02

Husqvarna 503577602

HOSE
(Superseded to 581756202)

$7.49

$

In Stock, Qty 20+

0

501 62 98-01

Husqvarna 501629801

VALVE PLUG

$5.99

$

In Stock, Qty 20+

0

501 81 96-02

Husqvarna 501819602

FUEL/OIL CAP
(Superseded to 537215207)

$11.99

$

Usually ships in 3-10 days

0

503 60 04-01

Husqvarna 503600401

FILTER PLUG

$7.49

$

In Stock, Qty 6

0

503 26 30-17

Husqvarna 503263017

O-RING

$7.49

$

In Stock, Qty 11

0

503 86 37-71

Husqvarna 503863771

TANK
(Superseded to 503863703)

$

$

Not available

503 85 45-01

Husqvarna 503854501

TRIGGER

$8.49

$

In Stock, only 2 left!

0

503 21 88-25

Husqvarna 503218825

%SCREW
(Superseded to 503218876)

$5.99

$

In Stock, Qty 13

0

503 92 61-01

Husqvarna 503926101

Plate (g) (XPG)

Note: XPG

$

$

Not available

503 44 32-01

Husqvarna 503443201

RP FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

720 18 25-20

Husqvarna 720182520

PIN

$3.99

$

In Stock, Qty 20+

0

503 85 44-01

Husqvarna 503854401

THROTTLE LOCK

$8.49

$

In Stock, Qty 9

0

503 21 38-01

Husqvarna 503213801

SCREW

Note: XPG

$

$

Not available
