346 XP - Husqvarna Chainsaw (SN: 20041000001 - 20070500000) CYLINDER PISTON Parts Diagram

Chainsaw

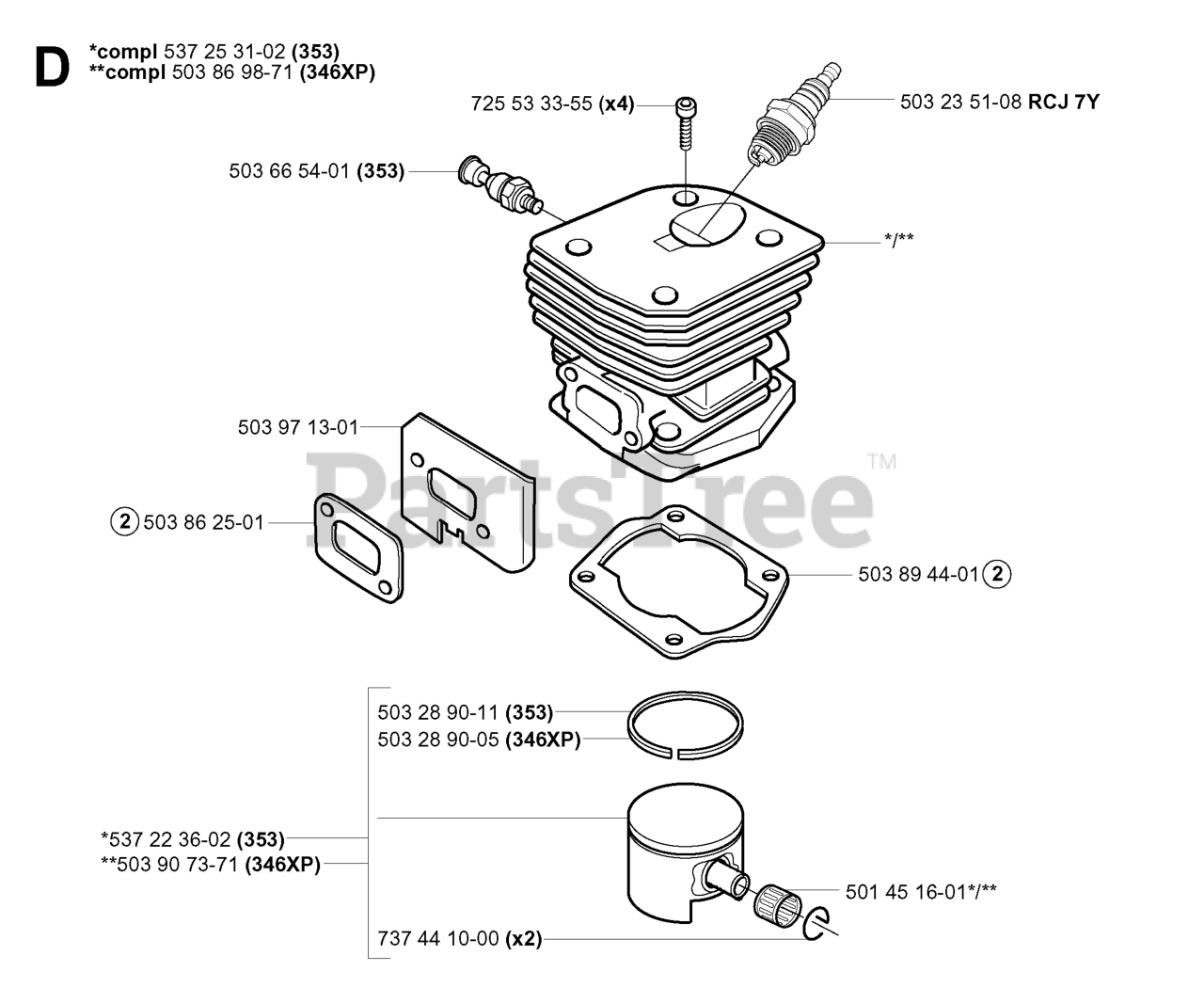

CYLINDER PISTON Parts Diagram

  • Title

501 45 16-01

Husqvarna 501451601

SUPPORT BUSHING
(Superseded to 503256302)

$27.99

$

In Stock, only 1 left!

0

503 23 51-08

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235111)

Note: RCJ 7Y

$3.99

$

In Stock, Qty 20+

0

503 89 44-01

Husqvarna 503894401

GASKET

$6.99

$

In Stock, Qty 17

0

503 86 98-71

Husqvarna 503869871

CYLINDER

Note: 346XP

$

$

Not available

503 97 13-01

Husqvarna 503971301

GUARD

$7.99

$

In Stock, only 2 left!

0

503 90 73-71

Husqvarna 503907371

PISTON ASSY

Note: 346XP

$125.99

$

In Stock, only 1 left!

0

737 44 10-00

Husqvarna 737441000

LOCKING RING

$3.49

$

In Stock, Qty 6

0

503 28 90-11

Husqvarna 503289011

%PISTON RING
(Superseded to 544435001)

Note: 353

$31.99

$

In Stock, only 1 left!

0

503 86 25-01

Husqvarna 503862501

GASKET

$5.99

$

In Stock, Qty 6

0

503 28 90-05

Husqvarna 503289005

PISTON RING

Note: 346XP

$20.99

$

In Stock, only 2 left!

0

503 66 54-01

Husqvarna 503665401

DECOMPRESSION VALVE
(Superseded to 544200001)

Note: 353

$37.99

$

In Stock, Qty 5

0

537 25 31-02

Husqvarna 537253102

PISTON CYLINDER KIT 353
(Superseded to 537253104)

Note: 353

$

$

Not available

725 53 33-55

Husqvarna 725533355

SCREW MC6S 5X25

$3.49

$

In Stock, Qty 15

0

537 22 36-02

Husqvarna 537223602

PISTON
(Superseded to 537223604)

Note: 353

$170.99

$

Usually ships in 3-10 days

0
