346 XP - Husqvarna Chainsaw (SN: 20070500001 - 20071300000) FUEL TANK Parts Diagram

Chainsaw

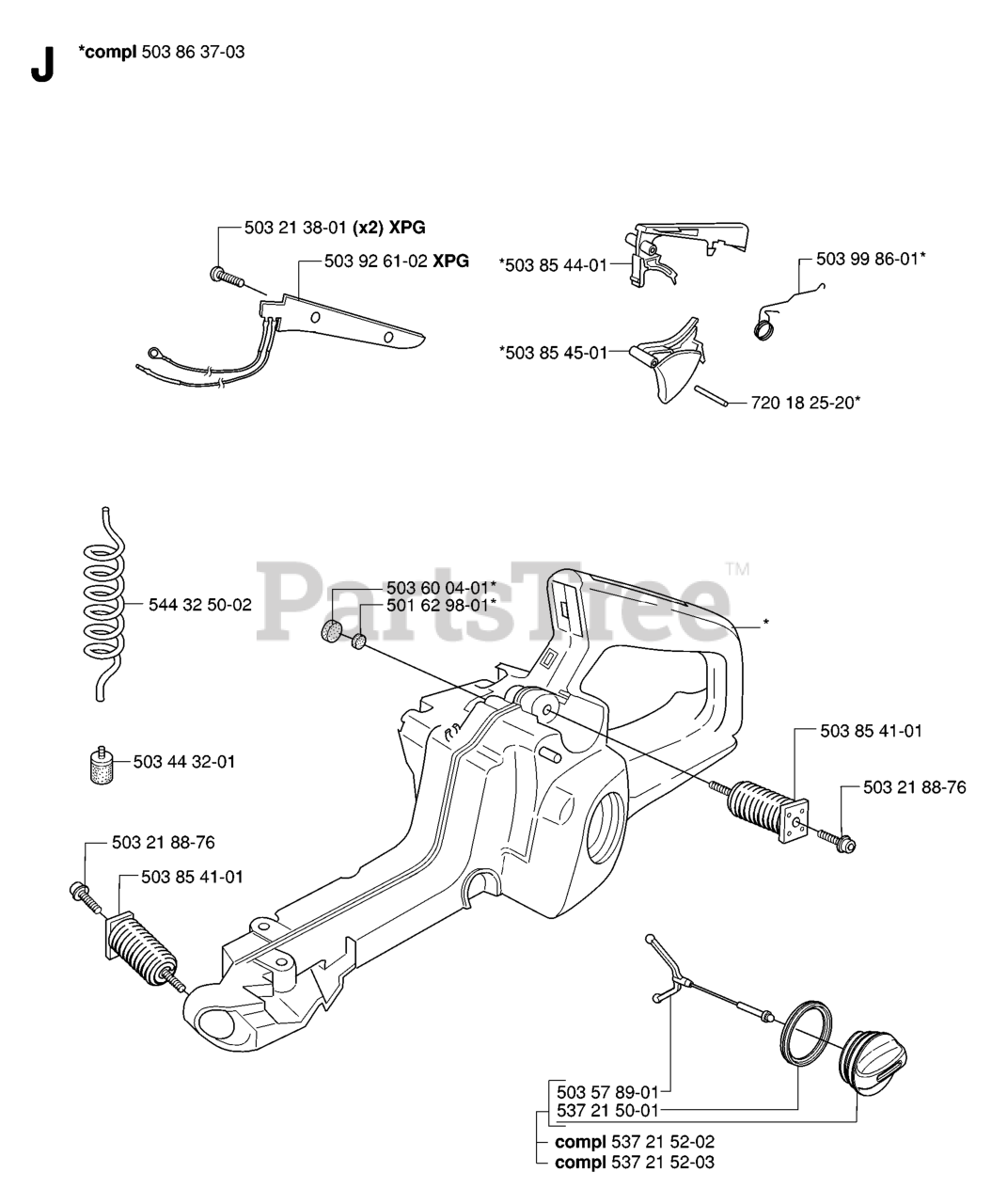

FUEL TANK Parts Diagram

  • Title

501 62 98-01

Husqvarna 501629801

VALVE PLUG

$5.99

$

In Stock, Qty 5

0

720 18 25-20

Husqvarna 720182520

PIN

$2.99

$

In Stock, Qty 11

0

537 21 50-01

Husqvarna 537215001

SEALING
(Superseded to 589241101)

$6.99

$

In Stock, Qty 5

0

503 60 04-01

Husqvarna 503600401

FILTER PLUG

$6.99

$

In Stock, only 2 left!

0

503 99 86-01

Husqvarna 503998601

SPRING

$9.49

$

In Stock, Qty 7

0

503 21 88-76

Husqvarna 503218876

SCREW

$5.99

$

In Stock, Qty 7

0

503 57 89-01

Husqvarna 503578901

TANK LOCK

$5.99

$

In Stock, Qty 10

0

503 92 61-02

Husqvarna 503926102

HANDLE CIRCUIT

$

$

Not available

503 86 37-03

Husqvarna 503863703

TANK UNIT

$

$

Not available

503 85 41-01

Husqvarna 503854101

VIBRATION ABSORBER

$17.99

$

In Stock, only 2 left!

0

503 85 45-01

Husqvarna 503854501

TRIGGER

$6.99

$

In Stock, only 2 left!

0

503 21 38-01

Husqvarna 503213801

SCREW

$

$

Not available

537 21 52-02

Husqvarna 537215202

TANK CAP
(Superseded to 537215207)

$11.99

$

In Stock, Qty 16

0

503 85 44-01

Husqvarna 503854401

THROTTLE LOCK

$7.99

$

In Stock, only 4 left!

0

544 32 50-02

Husqvarna 544325002

FUEL HOSE
(Superseded to 591375201)

$5.99

$

In Stock, Qty 11

0

537 21 52-03

Husqvarna 537215203

TANK CAP
(Superseded to 537215208)

$13.99

$

In Stock, only 1 left!

0

503 44 32-01

Husqvarna 503443201

RP FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0
