346 XP - Husqvarna Chainsaw (SN: 20090500001 - 20152999999) CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

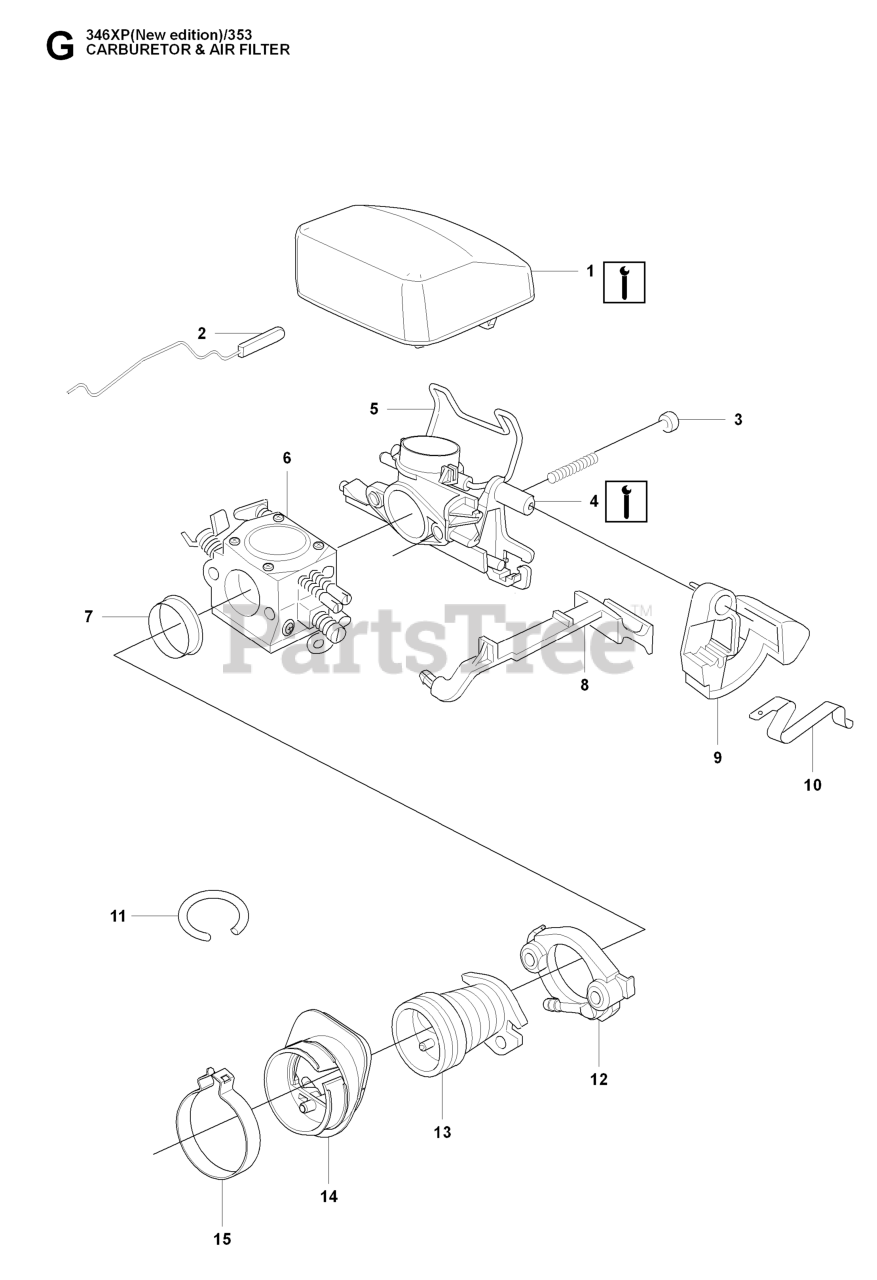

CARBURETOR & AIR FILTER Parts Diagram

  • Title

5

Husqvarna 537393102

FILTER CLAMP

$

$

Not available

2

Husqvarna 503889201

THROTTLE ROD

$20.99

$

In Stock, only 2 left!

0

3

Husqvarna 503217450

SCREW

$3.49

$

In Stock, only 4 left!

0

14

Husqvarna 537422801

PARTITION

$

$

Not available

4

Husqvarna 544360501

INLET ELBOW

$

$

Not available

1

Husqvarna 537264903

AIR FILTER - FELT

Note: FELT White

$17.99

$

In Stock, only 2 left!

0

15

Husqvarna 537438801

CLAMP, INTAKE

$

$

Not available

8

Husqvarna 503869601

CHOKE CONTROL

$9.49

$

In Stock, only 2 left!

0

6

Husqvarna 503283210

CARBURETOR

Note: C3-EL32 B

$62.99

$

In Stock, Qty 10

0

11

Husqvarna 544325101

HOSE, IMPULSE

$4.99

$

In Stock, Qty 20+

0

1

Husqvarna 537264901

AIR FILTER - NYLON (B)

Note: NYLON 80my Black

$

$

Not available

12

Husqvarna 544452901

FLANGE
(Superseded to 597995401)

$

$

Not available

13

Husqvarna 503866302

BELLOWS

$26.99

$

In Stock, only 2 left!

0

1

Husqvarna 537264902

AIR FILTER - NYLON (Y)

Note: NYLON 44my Yellow

$

$

Not available

7

Husqvarna 537029001

RING

$13.99

$

In Stock, only 3 left!

0

9

Husqvarna 503869502

CONTROL

$6.99

$

In Stock, Qty 9

0

10

Husqvarna 503869702

SPRING

$3.49

$

In Stock, only 2 left!

0
