346 XP - Husqvarna Chainsaw (SN: 20090500001 - 20152999999) HANDLE & CONTROLS Parts Diagram

Chainsaw

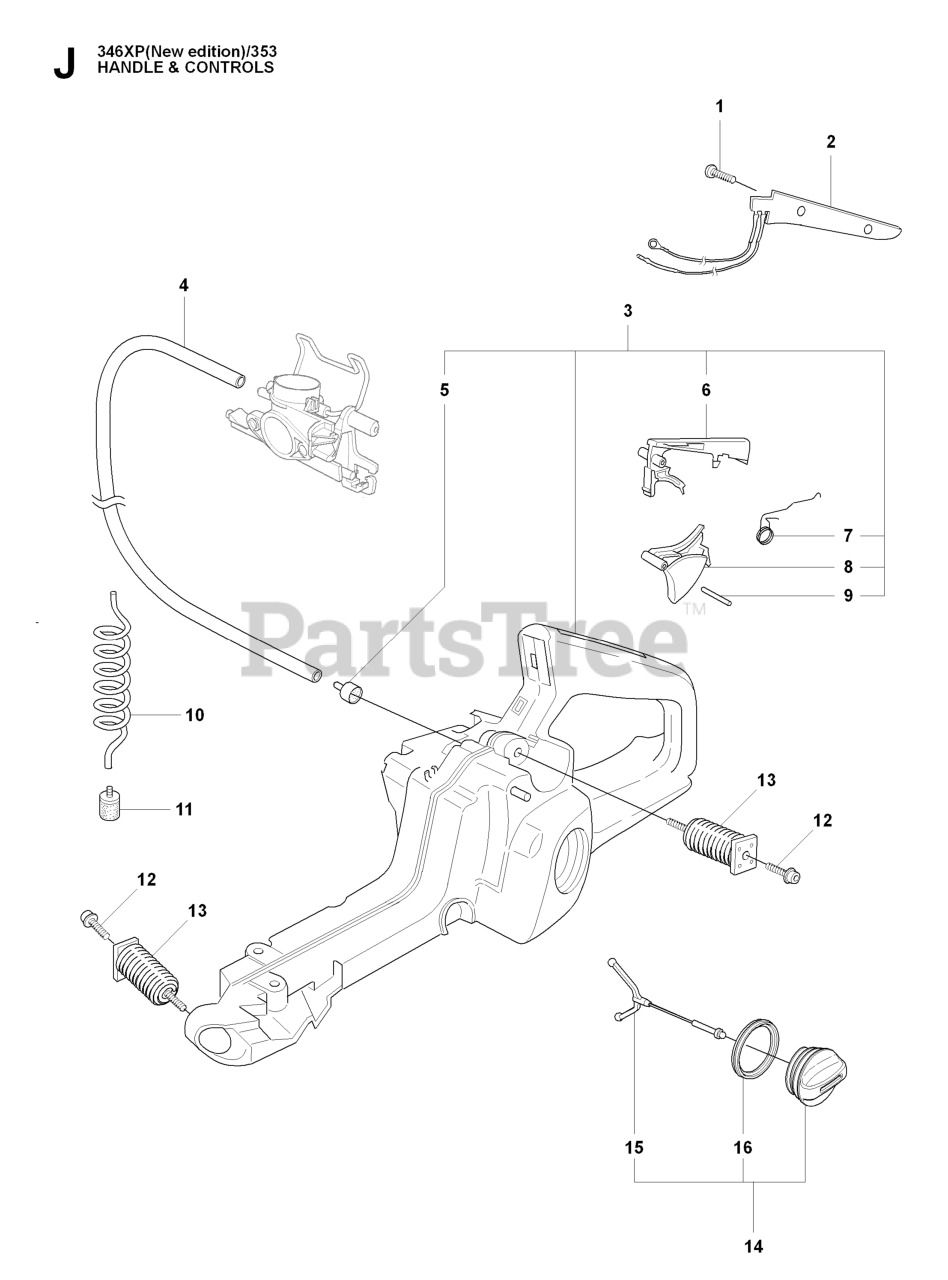

HANDLE & CONTROLS Parts Diagram

  • Title

16

Husqvarna 537215001

SEALING

$8.99

$

In Stock, Qty 17

0

15

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

9

Husqvarna 720182520

PIN

$2.49

$

In Stock, Qty 20+

0

7

Husqvarna 503998601

SPRING

$9.99

$

In Stock, Qty 14

0

8

Husqvarna 503854501

TRIGGER

$9.99

$

In Stock, Qty 9

0

6

Husqvarna 503854401

THROTTLE LOCK

$12.99

$

In Stock, only 4 left!

0

11

Husqvarna 503443201

RP FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

10

Husqvarna 544325002

FUEL HOSE
(Superseded to 591375201)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 537359501

FUEL TANK VENT
(Superseded to 501152901)

$15.99

$

In Stock, Qty 18

0

14

Husqvarna 537215202

TANK CAP
(Superseded to 537215207)

Note: Std

$10.99

$

In Stock, Qty 20+

0

14

Husqvarna 537215203

TANK CAP
(Superseded to 537215208)

Note: E-tech

$12.99

$

In Stock, only 1 left!

0

1

Husqvarna 503213801

SCREW

Note: XPG

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 503218876

SCREW

$6.49

$

In Stock, Qty 20+

0

13

Husqvarna 503854101

VIBRATION ABSORBER

$24.99

$

In Stock, Qty 14

0

2

Husqvarna 503926102

HANDLE CIRCUIT

Note: XPG

$39.99

$

Usually ships in 3-10 days

0

3

Husqvarna 503863703

TANK UNIT

$148.99

$

Usually ships in 3-10 days

0

4

Husqvarna 544324920

FUEL HOSE
(Superseded to 581756120)

$9.49

$

In Stock, only 4 left!

0
