346 XP - Husqvarna Chainsaw CYLINDER PISTON Parts Diagram

Chainsaw

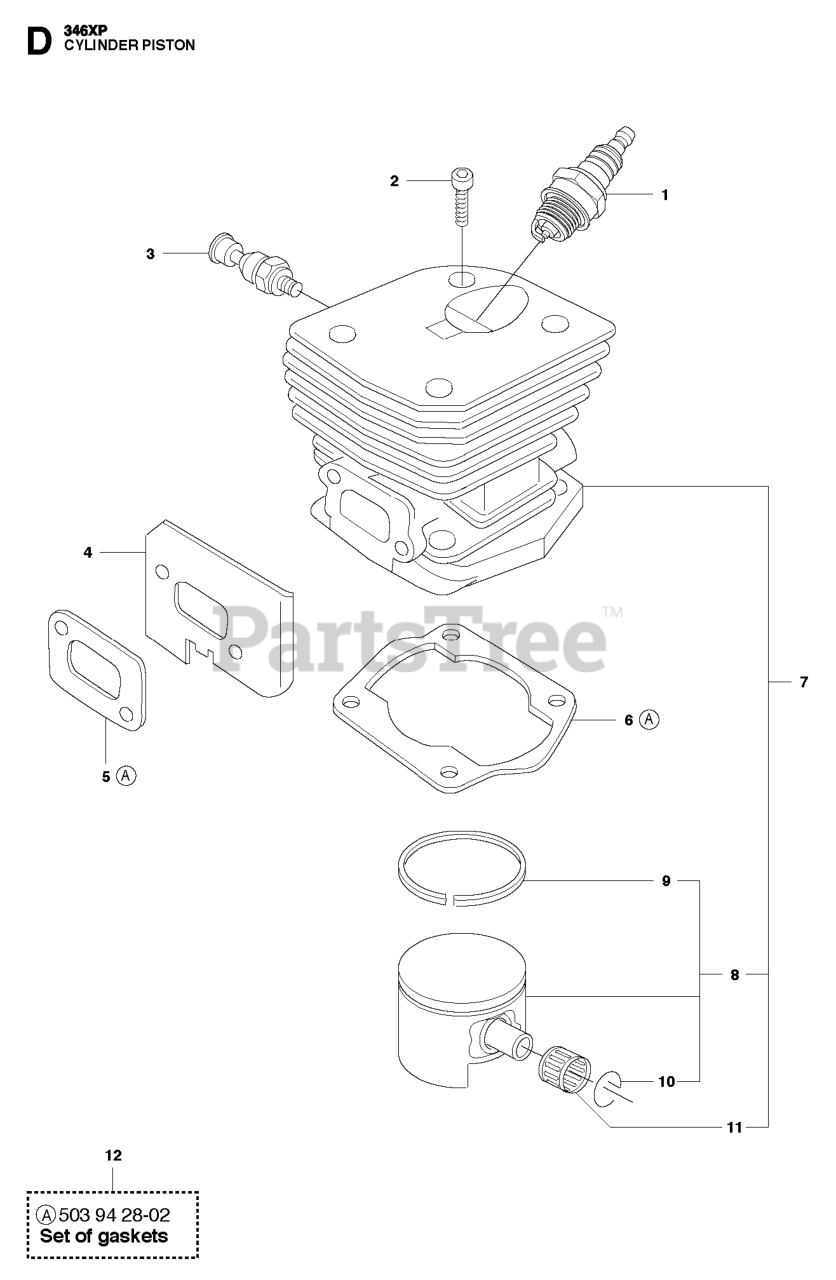

CYLINDER PISTON Parts Diagram

  • Title

4

Husqvarna 503971301

GUARD

$12.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503289056

PISTON RING
(Superseded to 544807601)

Note: 346XP 50 cc, 346XP decomp 50 cc

$29.99

$

Usually ships in 3-10 days

0

11

Husqvarna 501451601

SUPPORT BUSHING

$24.99

$

In Stock, only 4 left!

0

5

Husqvarna 503862501

GASKET

$7.49

$

In Stock, Qty 15

0

12

Husqvarna 503942802

GASKET SET

Note: A = Set of gaskets

$24.99

$

In Stock, only 2 left!

0

7

Husqvarna 503869872

Note: 346XP Japan 45 cc

$

$

Currently unavailable

1

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

2

Husqvarna 725533355

SCREW MC6S 5X25

Note: From s/n 20034100201 -

$6.49

$

In Stock, Qty 20+

0

10

Husqvarna 737441000

LOCKING RING

$6.49

$

In Stock, only 2 left!

0

9

Husqvarna 503289005

PISTON RING

Note: 346XP Japan 45 cc

$31.99

$

In Stock, only 3 left!

0

7

Husqvarna 544142907

CYLINDER

Note: 346XP 50 cc

$157.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503907371

PISTON ASSY

Note: 346XP Japan 45 cc

$136.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503894401

GASKET

$8.99

$

In Stock, Qty 9

0

3

Husqvarna 503665401

DECOMPRESSION VALVE
(Superseded to 544200001)

$67.99

$

In Stock, only 2 left!

0

8

Husqvarna 525470102

PISTON ASSY

Note: 346XP 50 cc, 346XP decomp 50 cc

$125.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544142908

CYLINDER

Note: 346XP decomp 50 cc

$169.99

$

Usually ships in 3-10 days

0
