34690 (8199 KT) - Gravely Lawn Tractor, 19hp, With Hydraulic Lift DIRECTION CONTROL Parts Diagram

Lawn Tractor, 19hp, With Hydraulic Lift

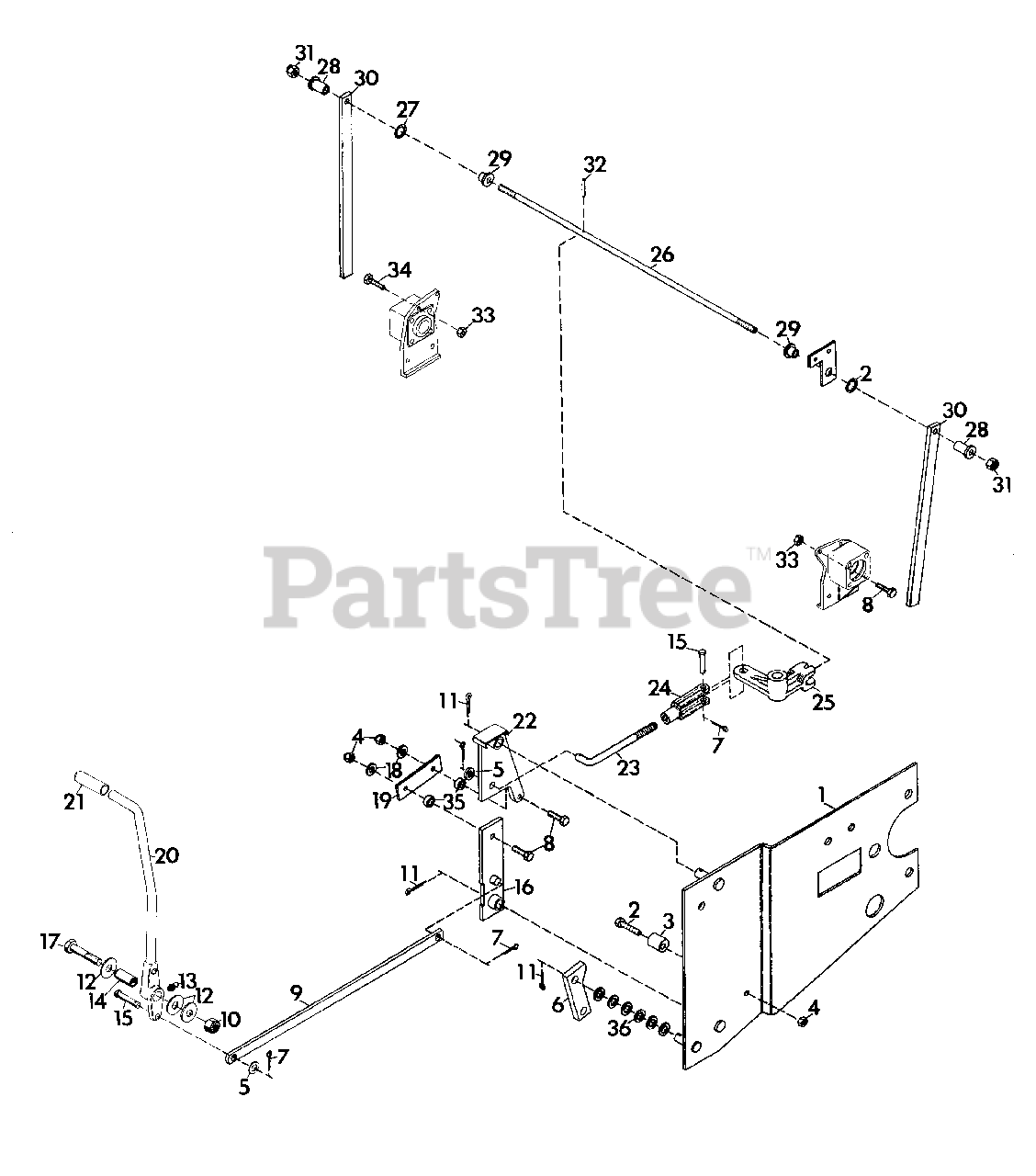

DIRECTION CONTROL Parts Diagram

  • Title

1

Gravely 034741

WLDMT,FWD-REV MTG PLATE
(Superseded to 21233700)

$

$

Not available

2

Gravely 180083

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

3

Gravely 034722

BUSH.,S.328X.750X1.00 ST
(Superseded to 20607000)

$

$

Not available

4

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

5

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 034719

CAM,BRAKE
(Superseded to 20606900)

$

$

Not available

7

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

8

Gravely 180081

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

9

Gravely 034735

LINK,FWD-REV SHIFTER
(Superseded to 21233500)

$

$

Not available

10

Gravely 414074

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

11

Gravely 137185

PIN-CTR .12X1.00 EXTPRSQCT YZ
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

12

Gravely 120390

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

14

Gravely 011074

BSHG-SLV .510X.750X1.437
(Superseded to 05518800)

$12.99

$

Usually ships in 4-12 days

0

15

Gravely 138078

PIN-CLEV .375X.948 YWZC
(Superseded to 06811900)

$5.49

$

In Stock, only 3 left!

0

16

Gravely 034718

WLDMT,OVER-CENTER ARM
(Superseded to 21232800)

$

$

Not available

17

Gravely 180188

BLT-HEX .50-13X2.75 GR5 YWZC
(Superseded to 05901720)

$5.49

$

Usually ships in 4-12 days

0

18

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 034721

STRAP,OVER-CENTER
(Superseded to 21232900)

$

$

Not available

20

Gravely 024450

LVR,FOR-REV
(Superseded to 21174000)

$

$

Not available

21

Gravely 024452

GRIP,HANDLE
(Superseded to 07522000)

$

$

Not available

22

Gravely 034716

WLDMT,CLUTCH ARM
(Superseded to 21232700)

$

$

Not available

23

Gravely 034717

ROD,CLUTCH
(Superseded to 20606800)

$

$

Not available

24

Gravely 018380

CLEVIS, .38-24 ADJ.
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

25

Gravely 034733

LVR,SLIDE ROD
(Superseded to 08910900)

$

$

Not available

26

Gravely 035479

ROD,FWD-REV CLUTCH
(Superseded to 09027400)

$56.99

$

Usually ships in 4-12 days

0

27

Gravely 034737

RG-RTNG 1.000X.748
(Superseded to 05715100)

$

$

Not available

28

Gravely 038074

BUSH.,F.512X.880X1.35 ST
(Superseded to 08926900)

$79.99

$

In Stock, only 1 left!

0

29

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$2.99

$

In Stock, Qty 20+

0

30

Gravely 034715

SPRG,FWD-REV CLUTCH
(Superseded to 08736253)

$

$

Not available

31

Gravely 190171

NUT-LK-NYL .50-20 PL(ND)
(Superseded to 06516400)

$2.99

$

Usually ships in 4-12 days

0

32

Gravely 034709

PIN-DWL .188X1.25
(Superseded to 05807800)

$

$

Not available

33

Gravely 120376

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

34

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 034712

BUSH.,S.329X.505X.280 ST
(Superseded to 20606700)

$

$

Not available

36

Gravely 446548

WSHR-FL-STL .375X.734X.065 PL
(Superseded to 06431100)

$

$

Not available
