34691 - Gravely Rear PTO for 4-Wheel Tractor REAR PTO Parts Diagram

Rear PTO for 4-Wheel Tractor

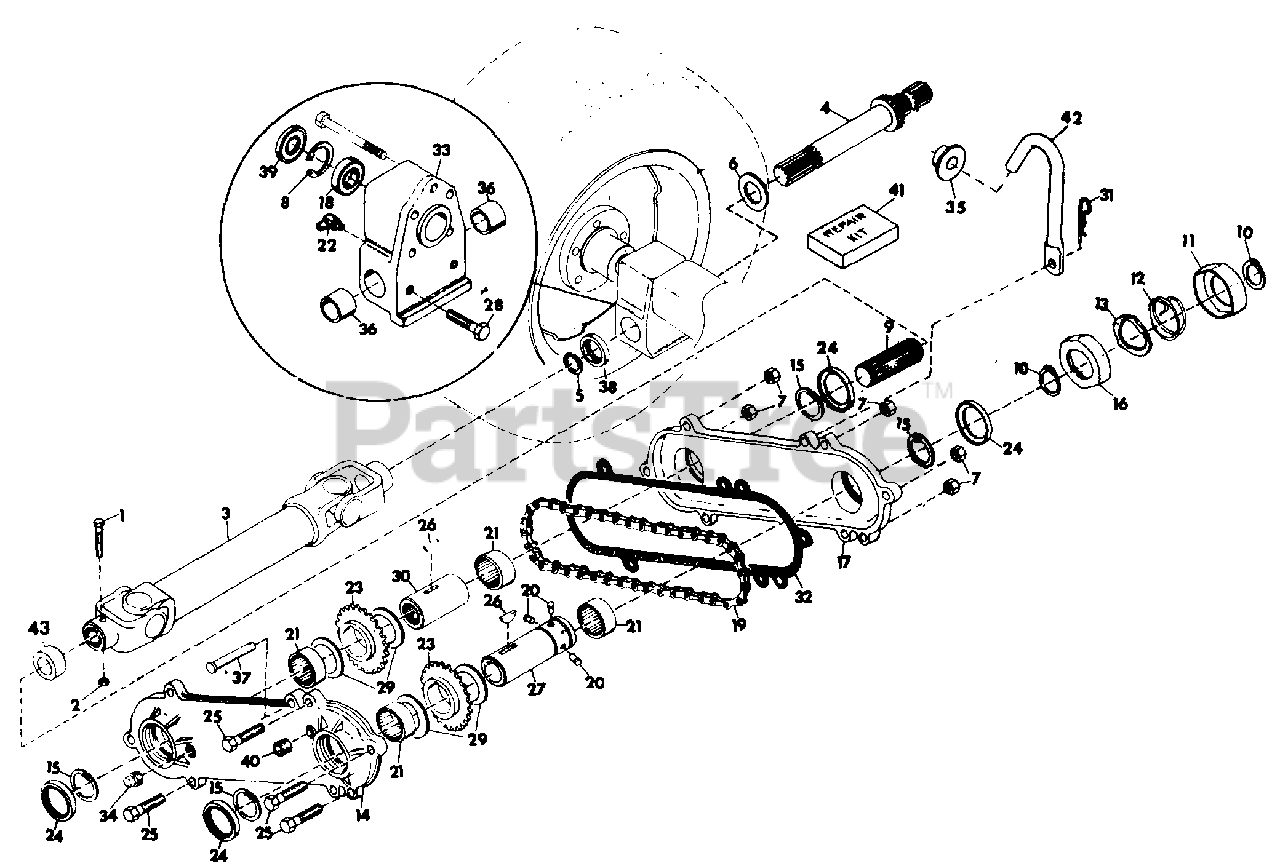

REAR PTO Parts Diagram

  • Title

1

Gravely 180044

BOLT, HEX 1/4-20 X 2
(Superseded to 05901740)

$2.49

$

In Stock, only 2 left!

0

2

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

3

Gravely 018971

UNIVERSAL DRIVE SHAFT
(Superseded to 08713500)

$

$

Not available

4

Gravely 018978

SHAFT
(Superseded to 08751500)

$

$

Not available

5

Gravely 014987

RING, RETAINING
(Superseded to 05711800)

$9.49

$

Usually ships in 4-12 days

0

6

Gravely 017959

THRUST RACE
(Superseded to 06426500)

$18.99

$

In Stock, only 2 left!

0

7

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

8

Gravely 018812

RING, RETAINING
(Superseded to 05712900)

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 018972

SHAFT
(Superseded to 08713600)

$

$

Not available

10

Gravely 018962

RING, RETAINING
(Superseded to 05713200)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 018967

RETAINER, OUTER
(Superseded to 21279700)

$

$

Not available

12

Gravely 018965

SPRING
(Superseded to 08328600)

$

$

Not available

13

Gravely 018966

CAM
(Superseded to 08713200)

$

$

Not available

14

Gravely 018949

HOUSING, FRONT
(Superseded to 08712800)

$

$

Not available

15

Gravely 018960

RING, RETAINING
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 018963

RETAINER, INNER
(Superseded to 08658000)

$

$

Not available

17

Gravely 018948

HOUSING, REAR
(Superseded to 08712700)

$

$

Not available

18

Gravely 018029

BEARING, BALL
(Superseded to 05426600)

$37.99

$

Usually ships in 4-12 days

0

19

Gravely 018957

CHAIN
(Superseded to 08652100)

$

$

Not available

20

Gravely 018964

PIN
(Superseded to 06704700)

$

$

Not available

21

Gravely 018950

BEARING, NEEDLE
(Superseded to 05421300)

$

$

Not available

22

Gravely 411032

GREASE FITTING
(Superseded to 07012800)

$4.99

$

In Stock, Qty 5

0

23

Gravely 018953

SPROCKET
(Superseded to 08713000)

$

$

Not available

24

Gravely 018961

SEAL, OIL
(Superseded to 05615400)

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 180130

BOLT, HEX 3/8-16 X 2
(Superseded to 05901718)

$2.99

$

In Stock, Qty 13

0

26

Gravely 431787

KEY, WOODRUFF 3/16 X 5/8
(Superseded to 06609300)

$2.99

$

In Stock, only 2 left!

0

27

Gravely 018952

SHAFT
(Superseded to 08712900)

$

$

Not available

28

Gravely 180173

BOLT, HEX 1/2-13 X 1
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

29

Gravely 018954

THRUST RACE
(Superseded to 06432200)

$13.99

$

In Stock, only 1 left!

0

30

Gravely 018956

SHAFT
(Superseded to 08713100)

$

$

Not available

31

Gravely 011860

HAIR PIN COTTER
(Superseded to 06700222)

$0.99

$

In Stock, Qty 8

0

32

Gravely 018958

GASKET
(Superseded to 08736300)

$

$

Not available

33

Gravely 034831

AXLE BEARING RETAINER & BUSHINGS
(Superseded to 08736600)

$

$

Not available

34

Gravely 103880

PLUG, PIPE 1/2 IN.
(Superseded to 07023900)

$3.49

$

Usually ships in 4-12 days

0

35

Gravely 010174

BUSHING, NYLON
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

36

Gravely 018977

BEARING
(Superseded to 05421400)

$26.99

$

Usually ships in 4-12 days

0

37

Gravely 411602

PIN, CLEVIS 3/8 X 1.875

$

$

Not available

38

Gravely 019537

THRUST RACE
(Superseded to 06432500)

$

$

Not available

39

Gravely 018031

SEAL, OIL
(Superseded to 05618200)

$21.99

$

In Stock, only 1 left!

0

40

Gravely 018968

PLUG, VENTED
(Superseded to 07017700)

$

$

Not available

41

Gravely 020573

REPAIR KIT FOR UNIVERSAL SHAFT
(Superseded to 03155800)

$

$

Not available

42

Gravely 035151

BRACKET, REAR PTO
(Superseded to 08654700)

$

$

Not available

Gravely 020821

SUBSTITUTE FOR TRACTOR SERIAL NO. BELOW540273
(Superseded to 08721453)

$

$

Not available

43

Gravely 017924

SPACER, 1.060X1.375X.450
(Superseded to 08724500)

$

$

Not available
