347 (190D347-100) - Cub Cadet 46" Mower Deck for GMT Gearbox Mounting Plate Assembly Parts Diagram

46" Mower Deck for GMT

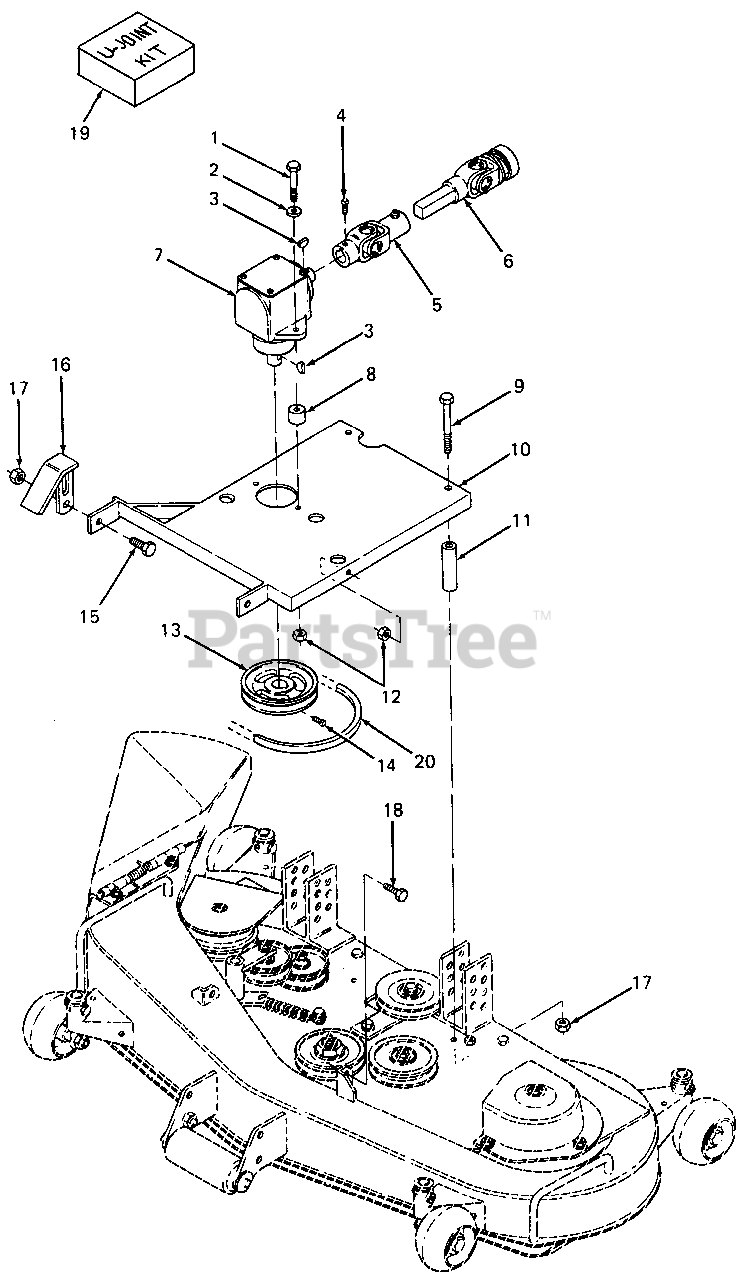

Gearbox Mounting Plate Assembly Parts Diagram

  • Title

1

Cub Cadet 710-3096

Screw, Hex Cap, 3/8-16 X 2.0 Lg GR8

$7.49

$

In Stock, Qty 20+

0

2

Cub Cadet 736-0133

Washer, Flat, .406 X 1.25 X .100 Thk

$4.99

$

In Stock, Qty 7

0

3

Cub Cadet 714-0126

Key, Hi-Pro, 3/16 X .75 HDN

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet TE-102881

Setscrew, 5/16-18 X .50 Sq Hd Cup

$

$

Not available

5

Cub Cadet TE-1000316

Driveshaft Assy, Female

$

$

Not available

6

Cub Cadet TE-1000317

Driveshaft Assy, Quick Disconnect

$

$

Not available

7

Cub Cadet TE-1000315

Gearbox Assy, Right Angle

$

$

Currently unavailable

8

Cub Cadet TE-1000480

Riser, Gearbox Mounting

$

$

Not available

9

Cub Cadet 710-0786

Screw, Hex Cap, 1/2-13 X 4.0 Lg GR5

$15.99

$

Usually ships in 3-6 days

0

10

Cub Cadet TE-1000460

Plate, Mounting

$

$

Not available

11

Cub Cadet TE-1000127

Riser, Mounting Plate

$

$

Not available

12

Cub Cadet 712-0375

Nut, Hex Center Lock, 3/8-16

$4.49

$

In Stock, Qty 12

0

13

Cub Cadet TE-1000467

Pulley, Gearbox

$

$

Not available

14

Cub Cadet TE-102882

Setscrew, 5/16-18 X 5/8 Sq Hd Cup

$

$

Not available

15

Cub Cadet 710-0865

Screw, Hex Cap, 1/2-13 X 1.0 Lg GR5

$

$

Not available

16

Cub Cadet TE-1000566

Hanger, Mower w/Graphic

$

$

Not available

17

Cub Cadet 712-0384

Nut, Hex Center Lock, 1/2-13
(Superseded to 912-0384)

$6.49

$

In Stock, only 3 left!

0

18

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet TE-1000544

Kit, U-Joint

$

$

Not available

20

Cub Cadet TE-1000471

Belt, Short Deck

$

$

Not available
