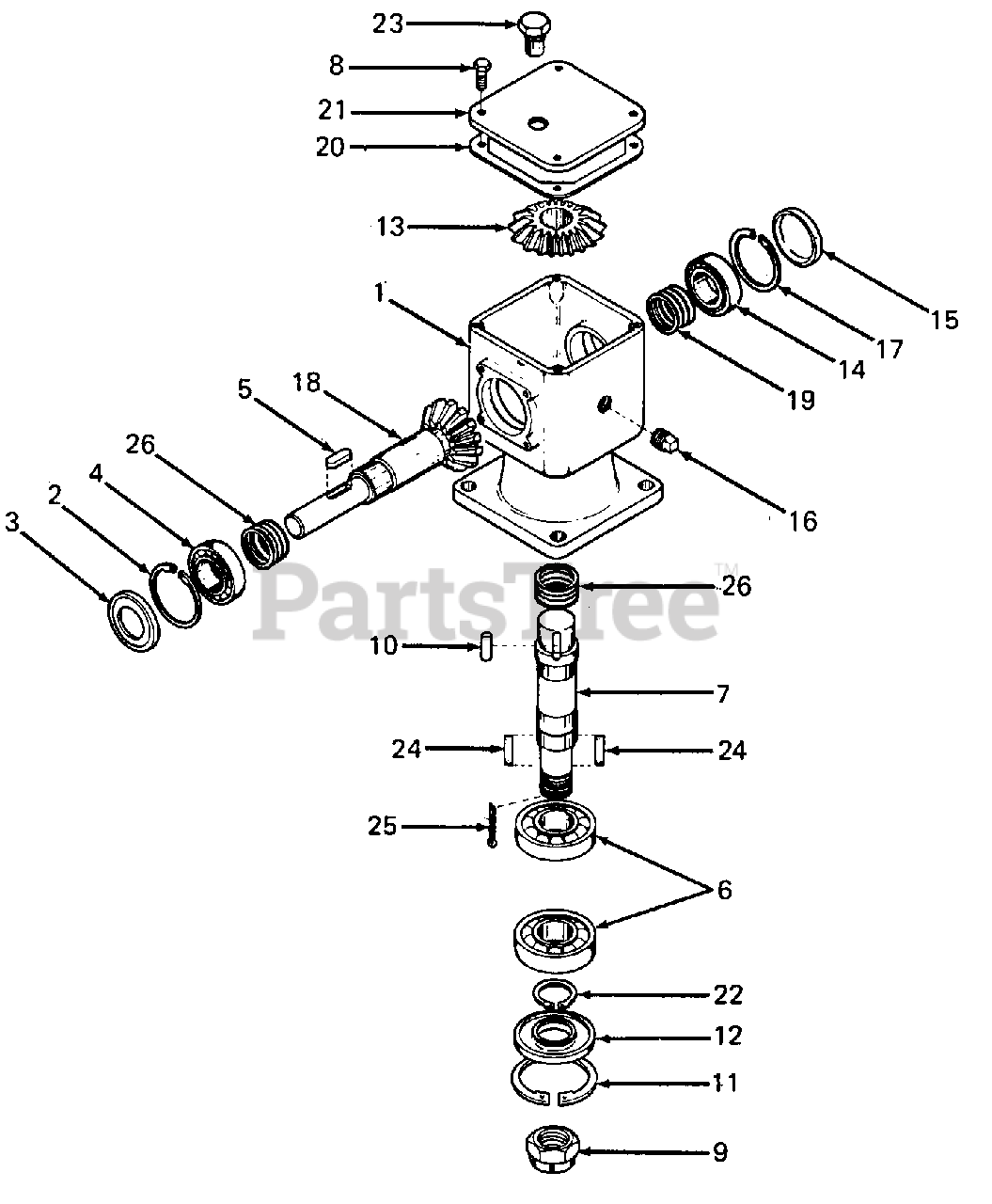

349 (190-349-100) - Cub Cadet 42" Mower Deck, Rear PTO att Mower Gearbox Parts Diagram

42" Mower Deck, Rear PTO

Mower Gearbox Parts Diagram

  • Title

Cub Cadet BU-70609

Gearbox Assy

$

$

Currently unavailable

1

Cub Cadet BU-83041

Casing

$

$

Not available

2

Cub Cadet BU-70291

Ring, Snap

$

$

Not available

3

Cub Cadet BU-70290

Seal, Oil

$

$

Not available

4

Cub Cadet BU-70129

Bearing
(Superseded to 941-04014)

$

$

Not available

5

Cub Cadet BU-83046

Key

$

$

Not available

6

Cub Cadet BU-83049

Bearing, Lower
(Superseded to 741-0721)

$

$

Not available

7

Cub Cadet BU-83042

Shaft

$

$

Not available

8

Cub Cadet BU-70326

Bolt, M8 X 16 mm

$

$

Not available

9

Cub Cadet BU-70076

Nut, Castle

$

$

Not available

10

Cub Cadet BU-70359

Key

$

$

Not available

11

Cub Cadet BU-70079

Ring, Snap

$

$

Not available

12

Cub Cadet BU-83043

Seal, Lower Oil

$

$

Not available

13

Cub Cadet BU-83044

Gear

$

$

Not available

14

Cub Cadet BU-70107

Bearing

$

$

Not available

15

Cub Cadet BU-70279

Cap

$

$

Not available

16

Cub Cadet BU-70292

Plug

$

$

Not available

17

Cub Cadet BU-70133

Ring, Snap

$

$

Not available

18

Cub Cadet BU-83045

Shaft, Pinion

$

$

Not available

19

Cub Cadet BU-70639

Shim, .3 mm

$

$

Not available

Cub Cadet BU-70640

Shim, .4 mm

$

$

Not available

Cub Cadet BU-70641

Shim, .5 mm

$

$

Not available

Cub Cadet BU-70642

Shim, 1.0 mm

$

$

Not available

20

Cub Cadet BU-70152

Gasket

$

$

Not available

21

Cub Cadet BU-70092

Cover

$

$

Not available

22

Cub Cadet BU-70235

Ring, Snap

$

$

Not available

23

Cub Cadet BU-70546

Plug

$

$

Not available

24

Cub Cadet BU-83047

Key

$

$

Not available

25

Cub Cadet BU-70075

Pin, Cotter

$

$

Not available

26

Cub Cadet BU-70329

Shim, .3 mm

$

$

Not available

Cub Cadet BU-70330

Shim, .4 mm

$

$

Not available

Cub Cadet BU-70331

Shim, .5 mm

$

$

Not available

Cub Cadet BU-70332

Shim, 1.0 mm

$

$

Not available
