35-37SL02 - Toro 37" Side-Discharge Mower Deck (1990)

37" Side-Discharge Mower Deck

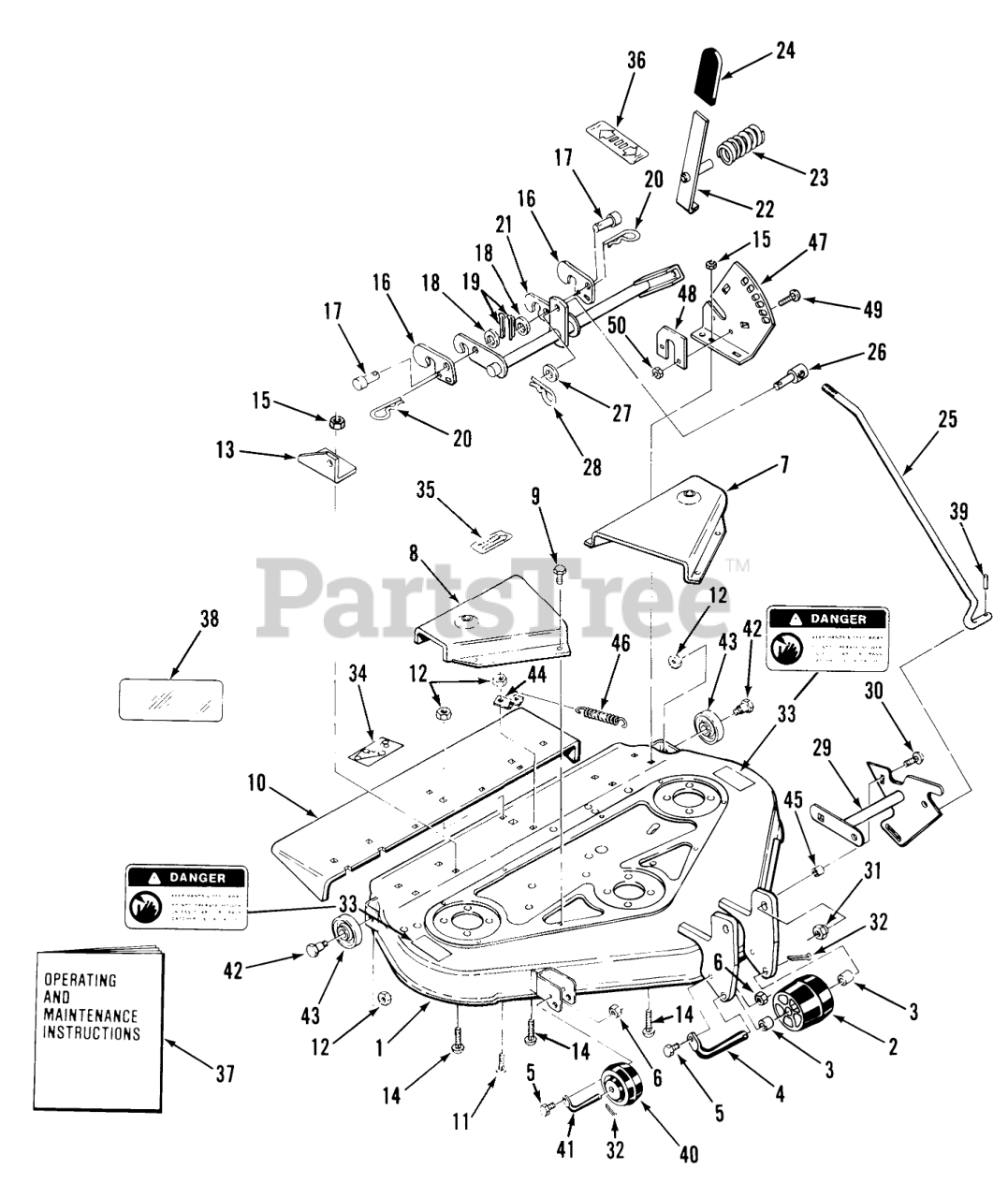

35-37SL02 - Toro 37" Side-Discharge Mower Deck (1990) > Parts Diagrams (6) > REAR DISCHARGE MOWER - 36" (92CM), VIN 35-36RL02

  • Title
112990

1

ASS'Y-MOWER DECK R

Part# 112990 (Superseded to 112990-01)

OEM Warranty Repair Part for Toro

Not available

108798

2

Roller

Part# 108798 (Superseded to 94-1599)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.64

113046

3

SPACER-ROLLER B

Part# 113046

OEM Warranty Repair Part for Toro

Not available

113045

4

SHAFT-ROLLER (FRONT)

Part# 113045

OEM Warranty Repair Part for Toro

Not available

908003

5

Bolt

Part# 908003 (Superseded to 321-4)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.81

915661

6

Nut

Part# 915661 (Superseded to 3296-42)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.36

111497

7

DECAL REAR HOOD

Part# 111497

OEM Warranty Repair Part for Toro

Not available

111596

8

SHIELD-BELT RH R

Part# 111596

OEM Warranty Repair Part for Toro

Not available

926671

9

Bolt

Part# 926671 (Superseded to 9266714)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.84

106480

10

Chute Extension

Part# 106480 (Superseded to 106480-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $61.10

900062

11

Bolt-Carriage

Part# 900062 (Superseded to 3231-1)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.84

915663

12

NUT

Part# 915663 (Superseded to 3296-39)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.11

111598

13

BRACKET-HT ADJ R

Part# 111598

OEM Warranty Repair Part for Toro

Not available

900063

14

Bolt

Part# 900063 (Superseded to 3231-2)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.41

915663

15

NUT

Part# 915663 (Superseded to 3296-39)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.11

111569

16

Latch

Part# 111569 (Superseded to 120610-03)

OEM Warranty Repair Part for Toro

Not available

932960

17

PIN

Part# 932960

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.49

920237

18

Washer

Part# 920237 (Superseded to 9202374)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.36

932008

19

Cotter Pin

Part# 932008 (Superseded to 3272-6)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.24

933505

20

Hairpin Cotter

Part# 933505 (Superseded to 9335054)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

117830

21

WELDMENT-HT ADJ S R

Part# 117830

OEM Warranty Repair Part for Toro

Not available

110418

22

LEVER ASSY

Part# 110418

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $86.87

101853

23

SPRING-COMPRESSION

Part# 101853

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.93

102597

24

GRIP

Part# 102597

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.39

113083

25

ASS'Y-HEIGHT ADJ R

Part# 113083

OEM Warranty Repair Part for Toro

Not available

7736

26

STUD-TRUNION

Part# 7736

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.68

920009

27

Washer

Part# 920009 (Superseded to 3256-24)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.51

933505

28

Hairpin Cotter

Part# 933505 (Superseded to 9335054)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

114837

29

ASM-FRONT LIFT R

Part# 114837

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $100.29

900234

30

Bolt-Carriage

Part# 900234 (Superseded to 3231-22)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.56

102809

31

LOCKNUT-FLANGE

Part# 102809 (Superseded to 32128-19)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.12

932034

32

Cotter Pin

Part# 932034 (Superseded to 3272-21)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.26

111188

33

Danger Decal

Part# 111188 (Superseded to 93-1122)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.06

111665

34

DECAL-BELT INSTALLAT

Part# 111665

OEM Warranty Repair Part for Toro

Not available

112161

35

DECAL-BELT ADJUST

Part# 112161

OEM Warranty Repair Part for Toro

Not available

111655

36

DECAL-HOC

Part# 111655

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.26

810481R1

37

Operating and Maintenance Instructions

Part# 810481R1

OEM Warranty Repair Part for Toro

Currently unavailable

112403

38

DECAL-OVERLAY

Part# 112403

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.77

933268

39

SPIROL PIN

Part# 933268

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.86

111173

40

ROLLER

Part# 111173

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.40

111174

41

SHAFT-ROLLER

Part# 111174 (Superseded to 111174-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $26.47

113165

42

BOLT-SHOULDER

Part# 113165

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $16.94

112962

43

WHEEL-GAGE

Part# 112962

OEM Warranty Repair Part for Toro

Not available

112883

44

ANCHOR-SPRING R

Part# 112883

OEM Warranty Repair Part for Toro

Not available

102704

45

SPACER

Part# 102704

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.59

100071

46

SPRING-EXTENSION

Part# 100071

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.75

116791

47

Quadrant

Part# 116791 (Superseded to 78-1980)

OEM Warranty Repair Part for Toro

Not available

116790

48

PLATE-RETAINING R

Part# 116790

OEM Warranty Repair Part for Toro

Not available

900037

49

Bolt

Part# 900037 (Superseded to 3230-1)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.29

915662

50

Nut

Part# 915662 (Superseded to 3296-29)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.87
