35-37SL02 - Toro 37" Side-Discharge Mower Deck (1991) Deck Assembly (continued) Parts Diagram

37" Side-Discharge Mower Deck

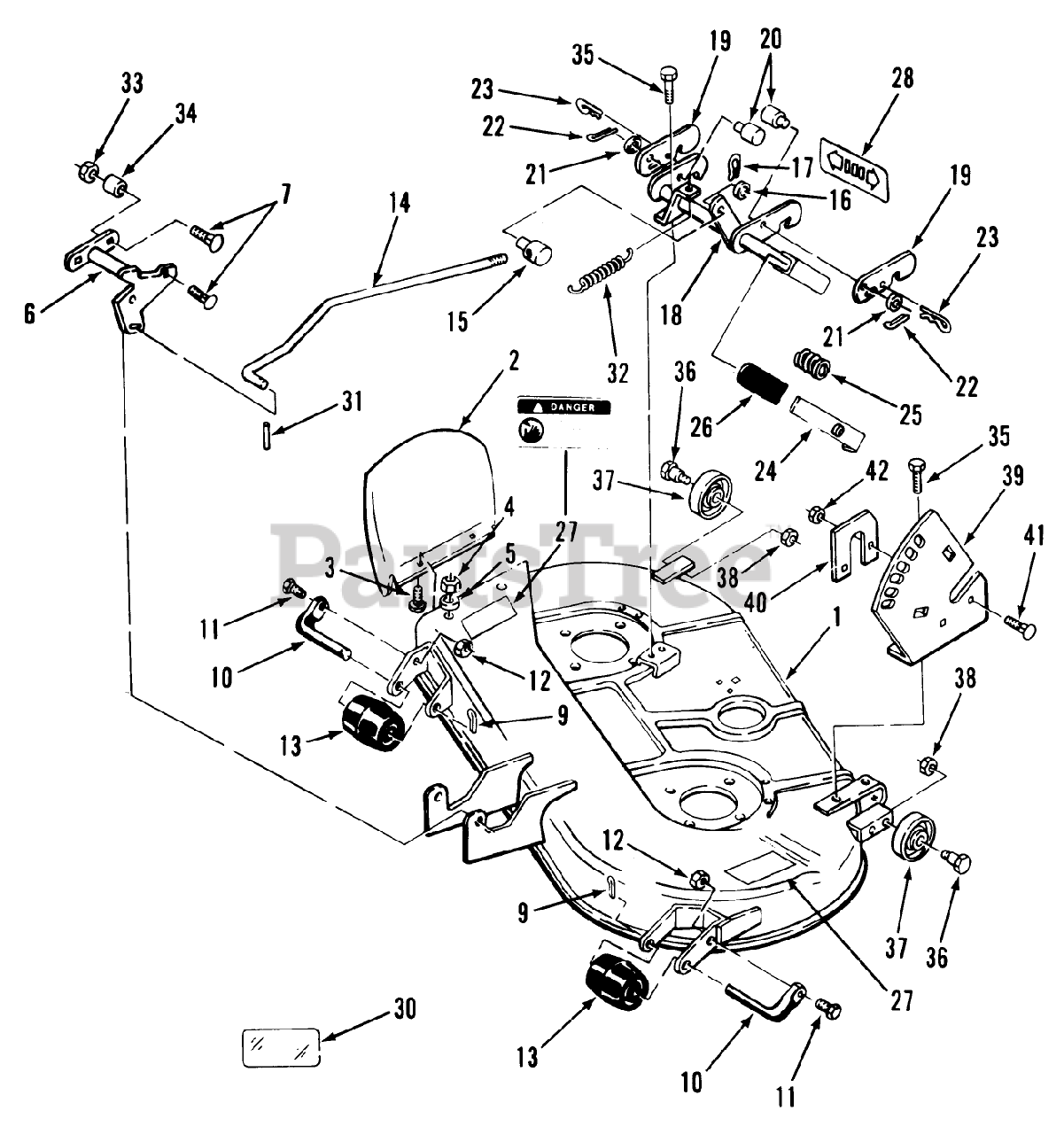

Deck Assembly (continued) Parts Diagram

  • Title

1

Toro 112991

DISCONTINUED
(Superseded to 18-1209)

$

$

Not available

2

Toro 117148

See Supercession: 92-7290
(Superseded to 92-7290)

$

$

Not available

3

Toro 900037

See Supercession: 3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

4

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

5

Toro 920038

See Supercession: 3256-3
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 15

0

6

Toro 114837

ASM-FRONT LIFT *R

$174.99

$

Usually ships in 3-6 days

0

7

Toro 900234

See Supercession: 3231-22
(Superseded to 3231-22)

$3.99

$

In Stock, Qty 20+

0

9

Toro 932034

See Supercession: 3272-21
(Superseded to 3272-21)

$3.99

$

In Stock, only 3 left!

0

10

Toro 110847

ROLLER-SHAFT

$30.99

$

In Stock, Qty 5

0

11

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

12

Toro 915661

See Supercession: 3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

13

Toro 108798

See Supercession: 94-1599
(Superseded to 94-1599)

$14.99

$

In Stock, only 2 left!

0

14

Toro 113084

DISCONTINUED

$

$

Not available

15

Toro 7736

STUD-TRUNION

$

$

Not available

16

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

17

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

18

Toro 117840

HT. ADJ. SHAFT

$

$

Not available

19

Toro 111569

DISCONTINUED
(Superseded to 120610-03)

$

$

Not available

20

Toro 932960

PIN

$

$

Not available

21

Toro 920237

See Supercession: 9202374
(Superseded to 9202374)

$0.99

$

Usually ships in 3-6 days

0

22

Toro 932008

See Supercession: 3272-6
(Superseded to 3-2726)

$

$

Not available

23

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

24

Toro 110418

LEVER ASSY

$152.99

$

Usually ships in 3-6 days

0

25

Toro 101853

SPRING-COMPRESSION

$32.99

$

In Stock, only 3 left!

0

26

Toro 102597

GRIP

$2.49

$

In Stock, only 2 left!

0

27

Toro 111188

See Supercession: 93-1122
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 10

0

28

Toro 111655

DECAL-HOC

$4.49

$

Usually ships in 3-6 days

0

30

Toro 112403

DECAL-OVERLAY

$

$

Not available

31

Toro 933268

SPIROL PIN

$1.49

$

In Stock, Qty 6

0

32

Toro 100071

SPRING-EXTENSION

$12.99

$

In Stock, only 3 left!

0

33

Toro 102809

See Supercession: 32128-19
(Superseded to 32128-19)

$1.99

$

In Stock, Qty 5

0

34

Toro 102704

SPACER

$2.99

$

In Stock, only 2 left!

0

35

Toro 926715

Bolt
(Superseded to 9267154)

$3.99

$

In Stock, Qty 6

0

36

Toro 113165

BOLT-SHOULDER

$25.99

$

In Stock, only 1 left!

0

37

Toro 112962

WHEEL-GAGE

$

$

Not available

38

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

39

Toro 116791

See Supercession: 78-1980
(Superseded to 78-1980)

$

$

Not available

40

Toro 116790

DISCONTINUED

$

$

Not available

41

Toro 900037

See Supercession: 3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

42

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0
