35 - Husqvarna Chainsaw (1990-06) Chain Brake Assembly Parts Diagram

Chainsaw

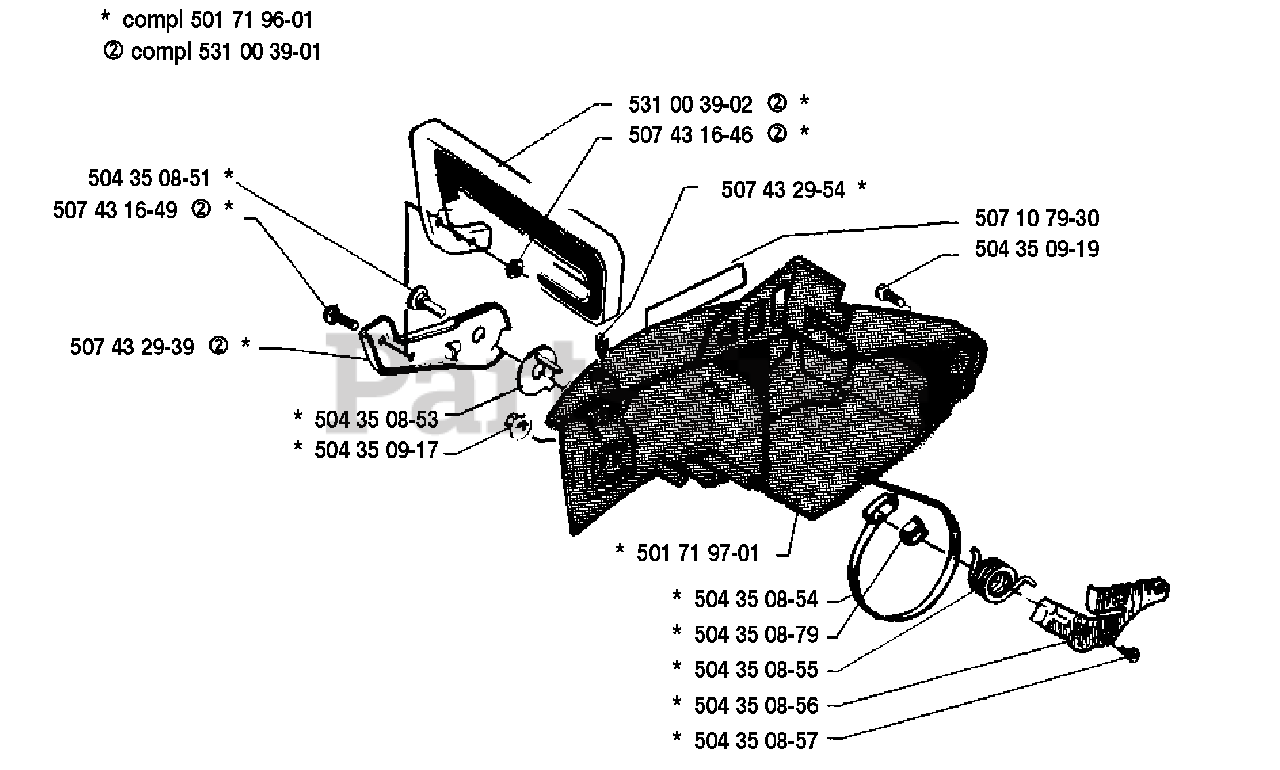

Chain Brake Assembly Parts Diagram

  • Title
501719601

Husqvarna 501719601

CHAIN BRAKE ASS'Y
(Superseded to 507107610)

$

$

Not available

531003901

Husqvarna 531003901

HAND GUARD CPL
(Superseded to 507475839)

$

$

Not available

504350851

Husqvarna 504350851

PIVOT PIN
(Superseded to 507108066)

$

$

Not available

507431649

$

$

Not available

507432939

Husqvarna 507432939

ACTIVATING LEVER

$

$

Not available

504350853

Husqvarna 504350853

ACTUATING PLATE
(Superseded to 507108063)

$5.76

$

Usually ships in 3-10 days

0

504350917

Husqvarna 504350917

NUT
(Superseded to 507520803)

$

$

Not available

501719701

Husqvarna 501719701

CHAIN COVER
(Superseded to 507107160)

$

$

Not available

504350854

Husqvarna 504350854

BRAKE BAND
(Superseded to 507108062)

$

$

Not available

504350879

Husqvarna 504350879

CLIP
(Superseded to 507108069)

$3.99

$

Usually ships in 3-10 days

0

504350855

Husqvarna 504350855

SPRING
(Superseded to 507108067)

$3.99

$

Usually ships in 3-10 days

0

504350856

Husqvarna 504350856

DETENT COVER
(Superseded to 507108068)

$

$

Not available

504350857

Husqvarna 504350857

SCREW
(Superseded to 507408000)

$

$

Not available

531003902

Husqvarna 531003902

HANDGUARD
(Superseded to 507475816)

$

$

Not available

507431646

$

$

Not available

507432954

Husqvarna 507432954

SCREW CHAIN BRAKE

$

$

Not available

507107930

$

$

Not available

504350919

Husqvarna 504350919

SCREW
(Superseded to 507123001)

$

$

Not available
