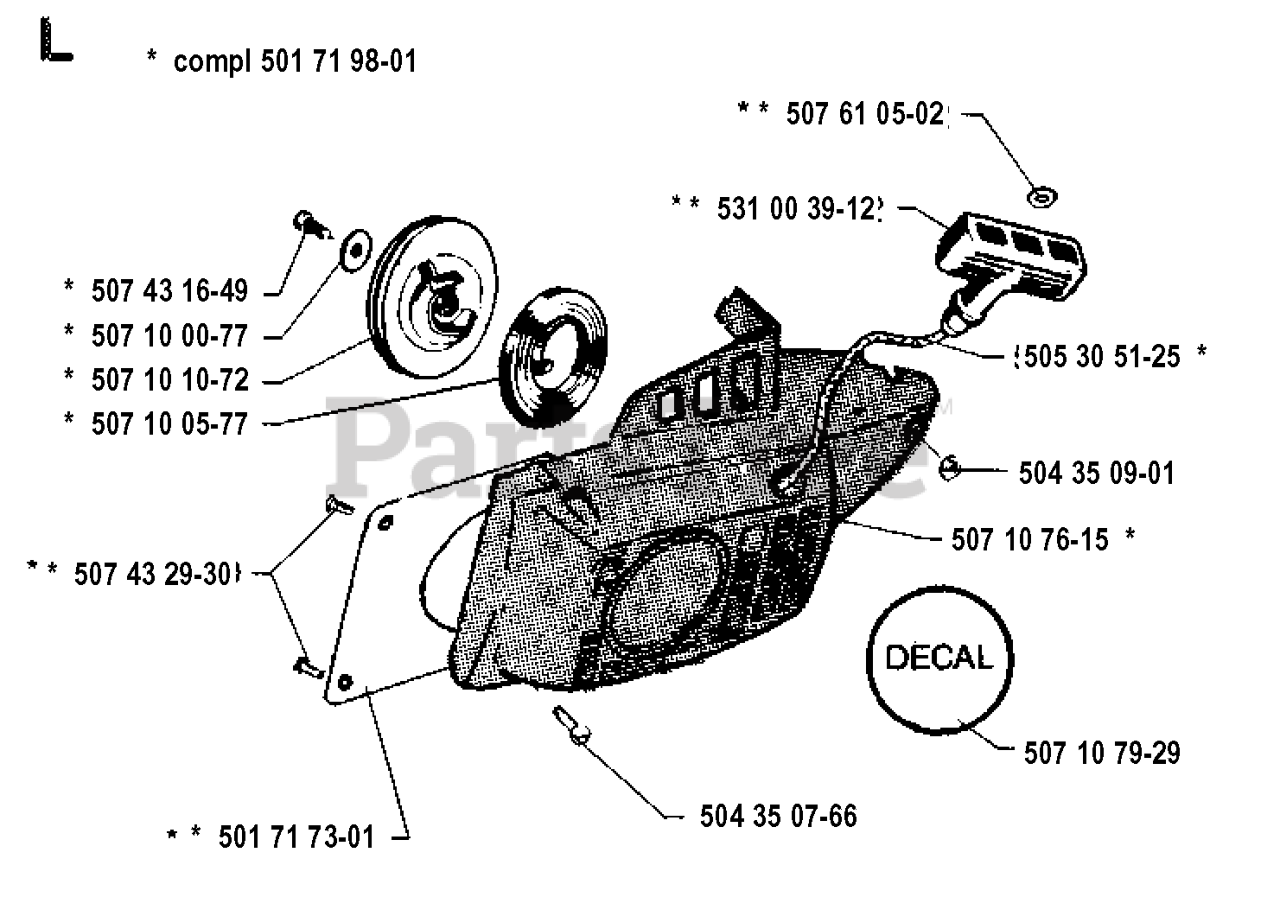

35 - Husqvarna Chainsaw (SN: 19902200001 & Above) STARTER Parts Diagram

Chainsaw

STARTER Parts Diagram

  • Title

531 00 39-12

Husqvarna 531003912

HANDLE
(Superseded to 507475297)

$3.99

$

Usually ships in 3-10 days

0

507 10 76-15

Husqvarna 507107615

FAN HSG & NUT ASSY (H)
(Superseded to 507107609)

$

$

Not available

507 61 05-02

Husqvarna 507610502

WASHER

$

$

Not available

507 10 05-77

Husqvarna 507100577

$

$

Currently unavailable

507 10 79-29

Husqvarna 507107929

DECAL NLA

$

$

Not available

507 10 10-72

Husqvarna 507101072

STARTER PULLEY

$

$

Not available

507 43 16-49

Husqvarna 507431649

SCREW

$

$

Not available

504 35 07-66

Husqvarna 504350766

SCREW
(Superseded to 507410004)

$

$

Not available

501 71 73-01

Husqvarna 501717301

AIR CONDUCTOR
(Superseded to 507107079)

$

$

Not available

504 35 09-01

Husqvarna 504350901

NUT
(Superseded to 507123002)

$2.49

$

Usually ships in 3-10 days

0

507 10 00-77

Husqvarna 507100077

STARTER WASHER

$

$

Not available

501 71 98-01

Husqvarna 501719801

STARTER ASS'Y
(Superseded to 507107609)

$

$

Not available

505 30 51-25

Husqvarna 505305125

STARTER ROPE

$8.99

$

In Stock, Qty 11

0

507 43 29-30

Husqvarna 507432930

SCREW NLA

$

$

Not available
