35 SL (UT-10670) - Homelite Chainsaw Engine Internals, Ignition & Clutch Parts Diagram

Chainsaw

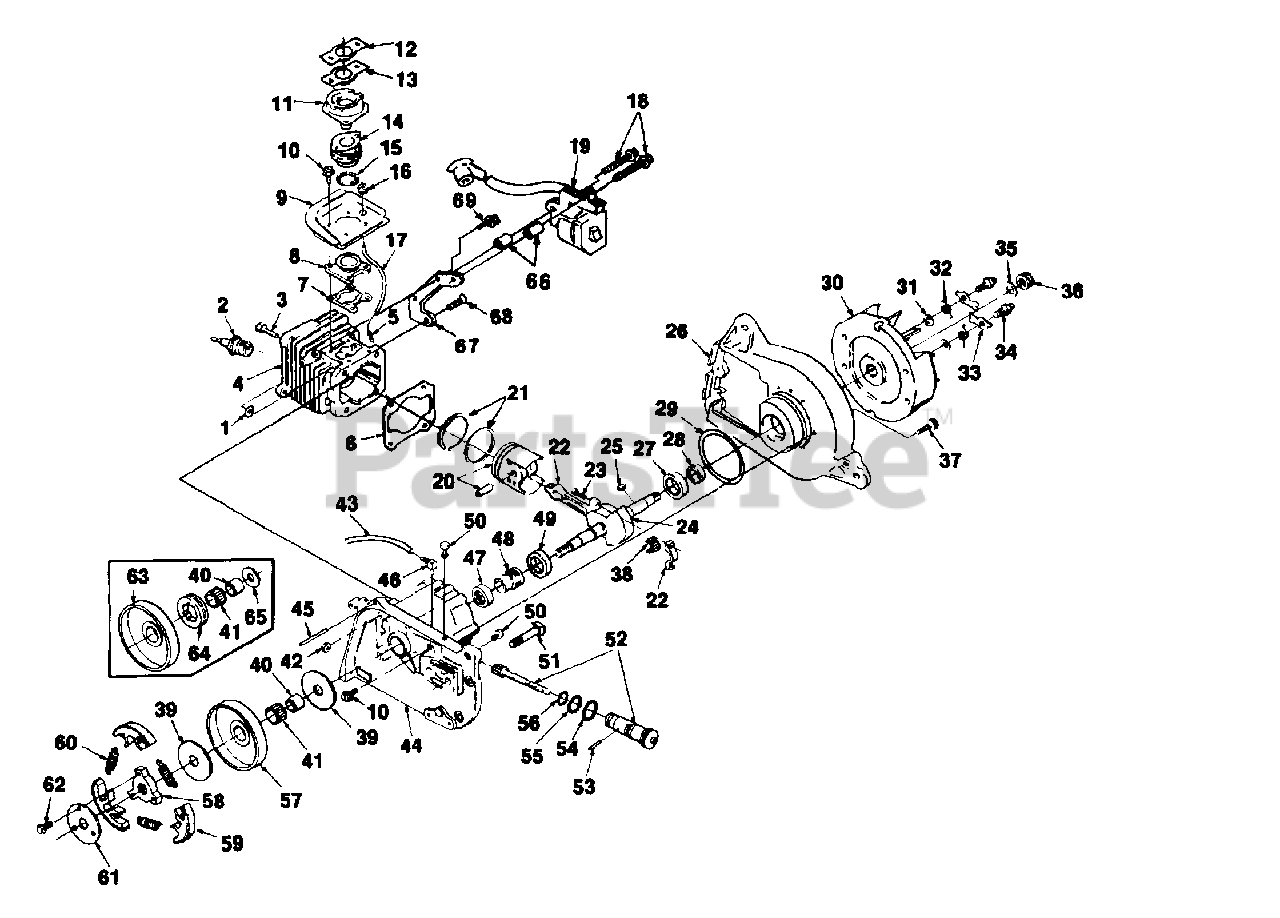

Engine Internals, Ignition & Clutch Parts Diagram

  • Title

1

Homelite 12021

WASHER

$

$

Not available

2

Homelite 63547S

SPARK PLUG (Champ. CJ6)

$5.99

$

Usually ships in 3-7 days

0

Homelite 78270

SPARK PLUG (RCJ-6)

Note: (Int'l Only)

$

$

Not available

3

Homelite 82262

SCREW- Soc. hd. cap (#10-24 x 7/8")

$

$

Not available

4

Homelite A02677

CYLINDER

Note: Includes Item 5

$

$

Not available

5

Homelite 69833

FITTING

$

$

Not available

6

Homelite 78284

GASKET- Cylinder

$

$

Not available

7

Homelite 70714

GASKET- Intake adaptor

$

$

Not available

8

Homelite 70715

MANIFOLD- Intake

$

$

Not available

9

Homelite 121611B

DEFLECTOR- Air (Intake)

$

$

Currently unavailable

10

Homelite 88042

SCREW- w/Washer (8-32 x 1/2")

$

$

Not available

11

Homelite A70246B

FLANGE- Carburetor connector

Note: Includes Item 12

$

$

Currently unavailable

12

Homelite A70923A

BUSHING & GASKET ASSY.

Note: Includes Item 13

$

$

Currently unavailable

13

Homelite 70743A

GASKET

$

$

Currently unavailable

14

Homelite 12048C

CONNECTOR- Carburetor

$

$

Currently unavailable

15

Homelite 12291

SPRING- Garter
(Superseded to UP06644)

$19.99

$

Usually ships in 3-7 days

0

16

Homelite 62740

GROMMET

$

$

Not available

17

Homelite 9311222

LINE- Pulse (5 1/2")

$

$

Not available

18

Homelite 88054

SCREW- Hex sems (10-24 x 1.125")
(Superseded to UP04267)

$

$

Not available

19

Homelite A94361A

MODULE & CORE

$

$

Not available

20

Homelite A12257A

PISTON & PIN

Note: Includes Item 21

$

$

Currently unavailable

21

Homelite 12040

PISTON RING

$

$

Not available

22

Homelite A120681

ROD- Connecting

Note: Includes Item 23

$

$

Currently unavailable

23

Homelite 69919

SCREW- Soc. hd (8-32 x 9/16")

$

$

Not available

24

Homelite 120371

CRANKSHAFT

$

$

Not available

25

Homelite 75078

KEY- Woodruff
(Superseded to UP07068)

$

$

Not available

26

Homelite A12204A

PLATE- Back

Note: Includes Item 27, 28

$

$

Currently unavailable

27

Homelite 63867

BEARING- Roller

$

$

Not available

28

Homelite 12282A

SEAL
(Superseded to UP07436)

$6.99

$

In Stock, only 3 left!

0

29

Homelite 58785

"O" RING

$

$

Not available

30

Homelite 12101AS

ROTOR

$

$

Currently unavailable

31

Homelite 83046

WASHER- Lock (#10)

$

$

Not available

32

Homelite 12055

SPRING- Starter pawl

$

$

Not available

33

Homelite 12056

PAWL- Starter

$

$

Not available

34

Homelite 65109

STUD- Starter pawl

$

$

Not available

35

Homelite 95479A

WASHER- (3/8")

$

$

Not available

36

Homelite 81255

NUT- (3/8-24)

$

$

Not available

37

Homelite 88051

SCREW- Hex sems (10-24 x 3/4")

$

$

Not available

38

Homelite A12913

ROLLERS- Needle (Set of 25)

$

$

Not available

39

Homelite 63860

WASHER- Thrust

$

$

Not available

40

Homelite 65985B

RACE- Inner

$

$

Not available

41

Homelite 64124

BEARING- Needle
(Superseded to UP06815)

$

$

Not available

42

Homelite 81208

NUT- Centerlock (#10-24)

$

$

Not available

43

Homelite 9311242

TUBING- Rubber (Oil) 10 1/2"

$

$

Not available

44

Homelite A79311AT

CRANKCASE

Note: Includes Items 45 - 51

$

$

Currently unavailable

45

Homelite 96865

PIN- Dowel

$

$

Not available

46

Homelite 94327

FITTING- Oil line

$4.49

$

Usually ships in 3-7 days

0

47

Homelite 70729

SEAL- (Double lip)

$

$

Not available

48

Homelite 12071

WORM GEAR

$

$

Not available

49

Homelite 63867

BEARING- Roller

$

$

Not available

50

Homelite 12096

BUMPER

$

$

Not available

51

Homelite 58753

BOLT- Guide bar (5/16")

$

$

Not available

52

Homelite A70962

PUMP- Automatic oil

Note: Includes 53 - 56

$

$

Currently unavailable

53

Homelite 70920

PIN- Pump

$

$

Not available

54

Homelite 70921

"O" RING

$

$

Not available

55

Homelite 12853

"O" RING

$

$

Not available

56

Homelite 12095

"O" RING

$

$

Not available

57

Homelite A954602

SPROCKET & DRUM (7T, 3/8P)

$

$

Currently unavailable

58

Homelite 96448

SPIDER- Clutch

$14.99

$

Usually ships in 3-7 days

0

59

Homelite A96447A

SHOE- Clutch

$

$

Currently unavailable

60

Homelite 96451

SPRING- Extension
(Superseded to UP07448)

$

$

Not available

61

Homelite 96449

COVER- Clutch

$

$

Not available

62

Homelite 88041

SCREW- Hex sems (8-32 x 3/8")

$

$

Not available

63

Homelite A936302

DRUM & HUB

$

$

Currently unavailable

64

Homelite 95058A

SPROCKET & RIM (7T, 3/8P)

$

$

Currently unavailable

65

Homelite 588331

WASHER- Thrust
(Superseded to 556601)

$

$

Not available

66

Homelite 79331

SPACER- Module

$11.99

$

Usually ships in 3-7 days

0

67

Homelite 793321

PLATE- Module mounting

$

$

Currently unavailable

68

Homelite 97605

SCREW- Flat hd. torx

$

$

Not available

69

Homelite 80983

SCREW- Hex (8-32 x 1/2")
(Superseded to 80560)

$

$

Not available
