350 - Husqvarna Chainsaw (1998-02) Crankcase Assembly Parts Diagram

Chainsaw

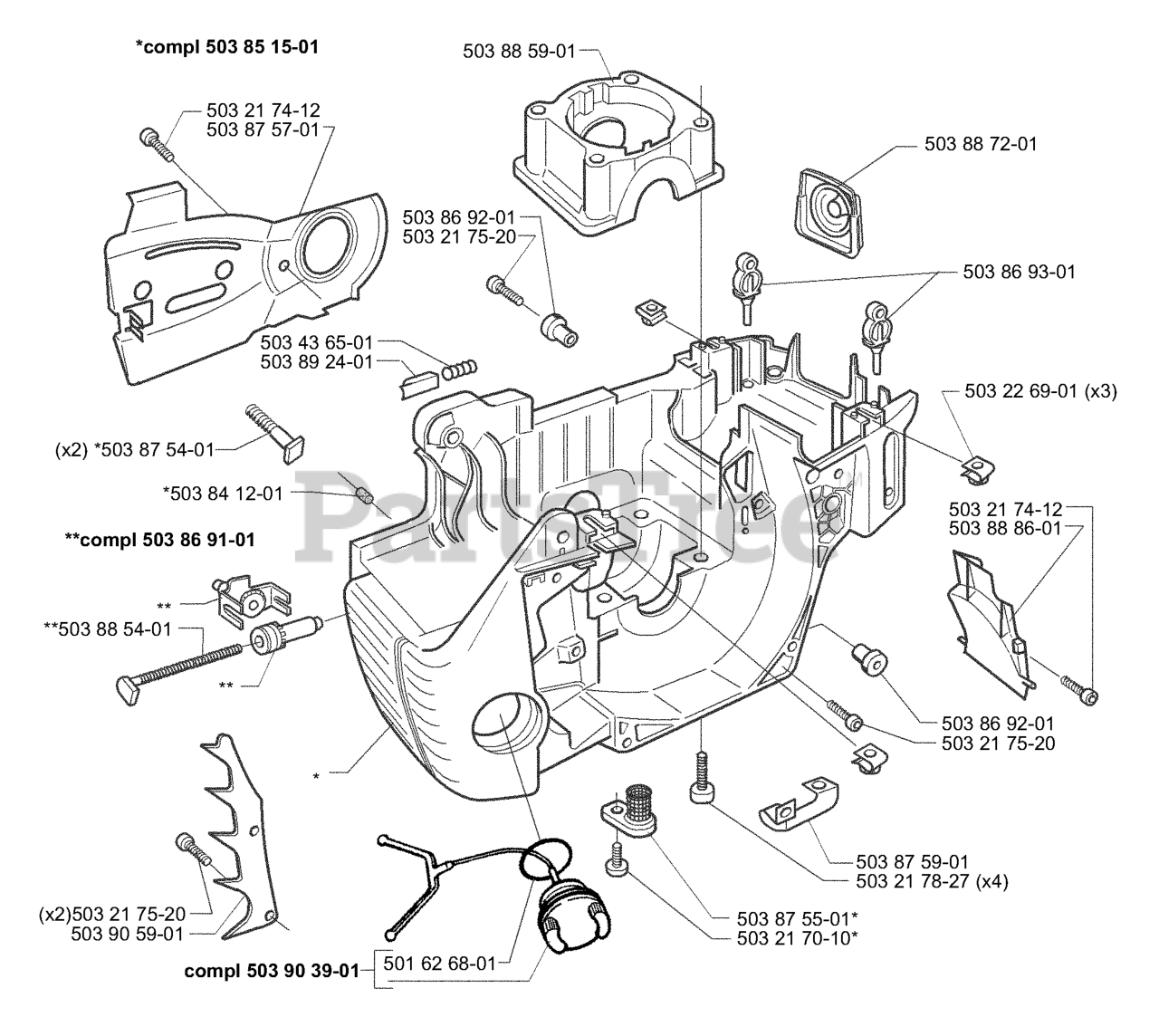

Crankcase Assembly Parts Diagram

  • Title

501626801

Husqvarna 501626801

OILCAP GASKET

$4.99

$

In Stock, only 4 left!

0

503217520

Husqvarna 503217520

SCREW

$4.99

$

In Stock, Qty 9

0

503217827

Husqvarna 503217827

SCREW

$

$

Not available

503226901

Husqvarna 503226901

CLIP
(Superseded to 503226902)

$4.99

$

In Stock, Qty 10

0

503436501

Husqvarna 503436501

LOCK SPRING

$4.99

$

In Stock, Qty 6

0

503841201

Husqvarna 503841201

VALVE
(Superseded to 537040301)

$5.99

$

In Stock, only 2 left!

0

503851501

Husqvarna 503851501

CRANKCASE COMPLETE
(Superseded to 537172003)

$

$

Not available

503869101

Husqvarna 503869101

CHAIN TENSIONER
(Superseded to 537071201)

$20.99

$

In Stock, only 4 left!

0

503869201

Husqvarna 503869201

MOVEMENT LIMITER

$9.99

$

In Stock, only 2 left!

0

503869301

Husqvarna 503869301

SUPPORT
(Superseded to 597909701)

$7.49

$

In Stock, Qty 8

0

503875401

Husqvarna 503875401

BOLT

$7.49

$

In Stock, only 3 left!

0

503875501

Husqvarna 503875501

SCREEN

$

$

Not available

503875701

Husqvarna 503875701

PLATE

$11.99

$

In Stock, Qty 7

0

503875901

Husqvarna 503875901

PLATE
(Superseded to 544196401)

$

$

Not available

503885401

Husqvarna 503885401

SCREW

$

$

Not available

503885901

Husqvarna 503885901

RP BEARING CUP

$

$

Not available

503887201

Husqvarna 503887201

BELLOWS
(Superseded to 537146501)

$17.99

$

In Stock, only 1 left!

0

503888601

Husqvarna 503888601

DEFLECTOR

$

$

Not available

503892401

Husqvarna 503892401

CATCH

$7.49

$

In Stock, only 1 left!

0

503903901

Husqvarna 503903901

OIL CAP
(Superseded to 537281502)

$11.99

$

In Stock, Qty 12

0

503905901

Husqvarna 503905901

SPIKE

$9.99

$

In Stock, only 2 left!

0

503217412

Husqvarna 503217412

SCREW

$3.99

$

In Stock, Qty 10

0

503217010

Husqvarna 503217010

SCREW

$4.99

$

In Stock, Qty 20+

0
