3500XL (9441-0) - Generac 3,500 Watt Portable Generator Control Panel (10/95) Parts Diagram

3,500 Watt Portable Generator

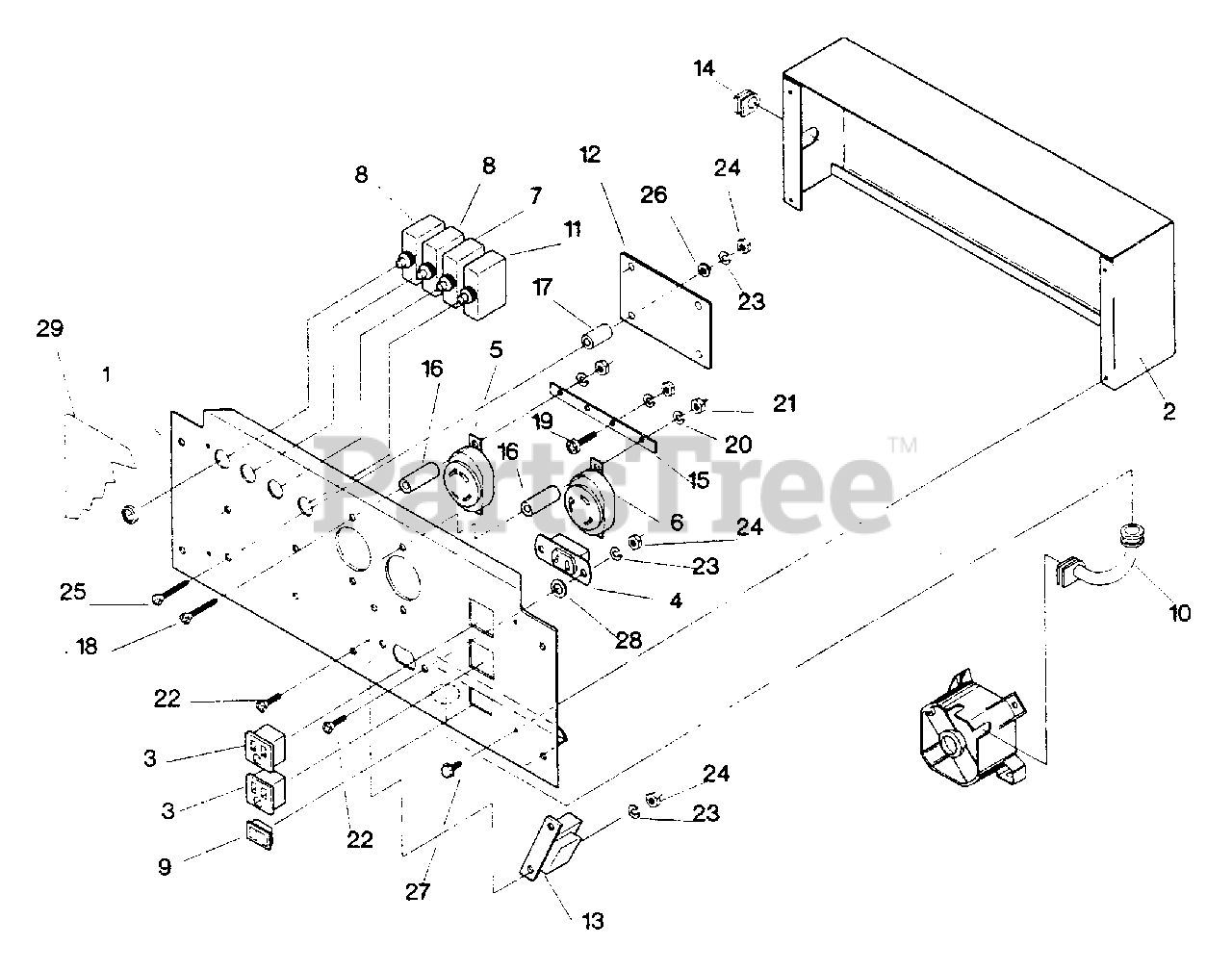

Control Panel (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 84565

Control Panel

$

$

Not available

2

Briggs & Stratton 84667

Control Box

$

$

Currently unavailable

3

Briggs & Stratton 66818

120 Volts AC Outlet
(Superseded to 66818GS)

$25.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66822

12 Volts DC Outlet
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418

$11.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 68867C

120/240 volts, 20 amp Twistlock Outlet
(Superseded to 68867CGS)

$19.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 68868C

120 volts, 30 amp Twistlock Outlet
(Superseded to 68868CGS)

$37.99

$

Usually ships in 2-12 days

0

7

75207A

30 amp Circuit Breaker

$

$

Not available

8

Briggs & Stratton 75207F

18 amp Circuit Breaker
(Superseded to 75207FGS)

$10.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 82538

On/Off Rocker Switch
(Superseded to 82538GS)

$6.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 84134

Rubber Grommet
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 75207B

10 amp Circuit Breaker
(Superseded to 75207BGS)

$12.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 83970

System Control Board
(Superseded to 83970GS)

$

$

Not available

13

Briggs & Stratton 77278G

Idle Control Transformer

$

$

Not available

14

Briggs & Stratton 67022

Rubber Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 85584

Bus Bar
(Superseded to 85584GS)

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 85801

5.3 x 10 x 25mm Standoff

$

$

Currently unavailable

17

Briggs & Stratton 85800

3.2 x 6 x 15mm Standoff

$

$

Currently unavailable

18

Briggs & Stratton 85799

No. 6-32 x 1-1/2" Screw

$

$

Currently unavailable

19

Briggs & Stratton 36903

No. 6-32 x 3/8" Screw

$

$

Currently unavailable

20

Briggs & Stratton 22155

No. 6 Lock Washer
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 22188

No. 6-32 Hex Nut

$

$

Currently unavailable

22

Briggs & Stratton 85797

M3-0.5 x 10mm Screw

$

$

Currently unavailable

23

Briggs & Stratton 43182

M3 Lock Washer
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 51714

M3 Hex Nut
(Superseded to 51714GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 85798

M3-0.5 x 25mm Screw

$

$

Currently unavailable

26

Briggs & Stratton 52777

M3 Flat Washer
(Superseded to 52777GS)

$2.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 63036

No. 8-18 x 1/4" Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 82615

Flat Washer

$

$

Currently unavailable

29

Briggs & Stratton 85796

Control Panel Decal

$

$

Currently unavailable
