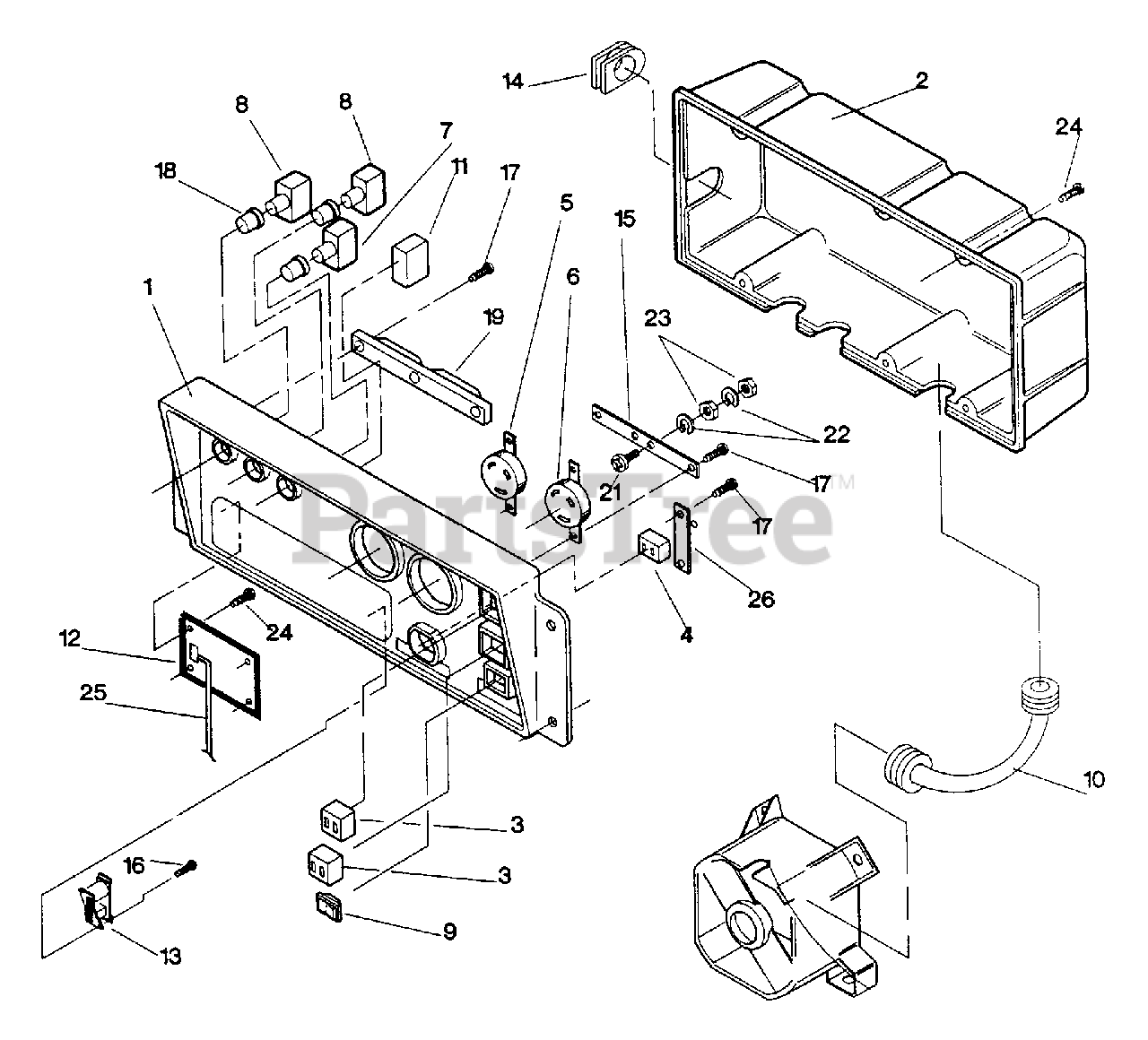

3500XL (9441-2) - Generac 3,500 Watt Portable Generator Control Panel Parts Diagram

3,500 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 83976

Control Panel
(Superseded to 83976GS)

$95.99

$

In Stock, only 2 left!

0

2

Briggs & Stratton 83975

Control Box
(Superseded to 83975GS)

$

$

Not available

3

Briggs & Stratton 66818

120 Volts AC Outlet
(Superseded to 66818GS)

$25.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66821

12 Volts DC Outlet
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 68867C

120/240 volts, 20 amp Twistlock Outlet
(Superseded to 68867CGS)

$19.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 68868C

120 volts, 30 amp Twistlock Outlet
(Superseded to 68868CGS)

$37.99

$

Usually ships in 2-12 days

0

7

75207A

30 amp Circuit Breaker

$

$

Not available

8

Briggs & Stratton 75207G

18 amp Circuit Breaker
(Superseded to 75207GGS)

$10.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 82538

On/Off Rocker Switch
(Superseded to 82538GS)

$6.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 84134

Rubber Grommet
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 83514

10 amp Circuit Breaker
(Superseded to 83514GS)

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 83970

System Control Board
(Superseded to 83970GS)

$

$

Not available

13

Briggs & Stratton 84028

Idle Control Transformer
(Superseded to 84028GS)

$47.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 67022

Rubber Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 85584

Bus Bar
(Superseded to 85584GS)

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 84534A

3.0 x 12mm Screw

$

$

Currently unavailable

17

Briggs & Stratton 84534C

3.5 x 18mm Screw

$

$

Currently unavailable

18

Briggs & Stratton 84198

Circuit Breaker Shield
(Superseded to 84198GS)

$4.49

$

In Stock, only 2 left!

0

19

Briggs & Stratton 84197

Circuit Breaker Retaining Bar
(Superseded to 84197GS)

$3.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 75476

4.0 x 16mm Screw
(Superseded to 75476GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22264

M4 Lock Washer

$

$

Not available

23

Briggs & Stratton 51715

M3 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84534B

3.5 x 12mm Screw

$

$

Currently unavailable

25

Briggs & Stratton 84335

Wire Harness
(Superseded to 84335GS)

$39.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 82542

DC Outlet Retaining Bar
(Superseded to 82542GS)

$1.99

$

Usually ships in 2-12 days

0
