3500XL (9704-0) - Generac 3,500 Watt Portable Generator GN-190 Engine 6 HP HS Long Block - No. 83784 Parts Diagram

3,500 Watt Portable Generator

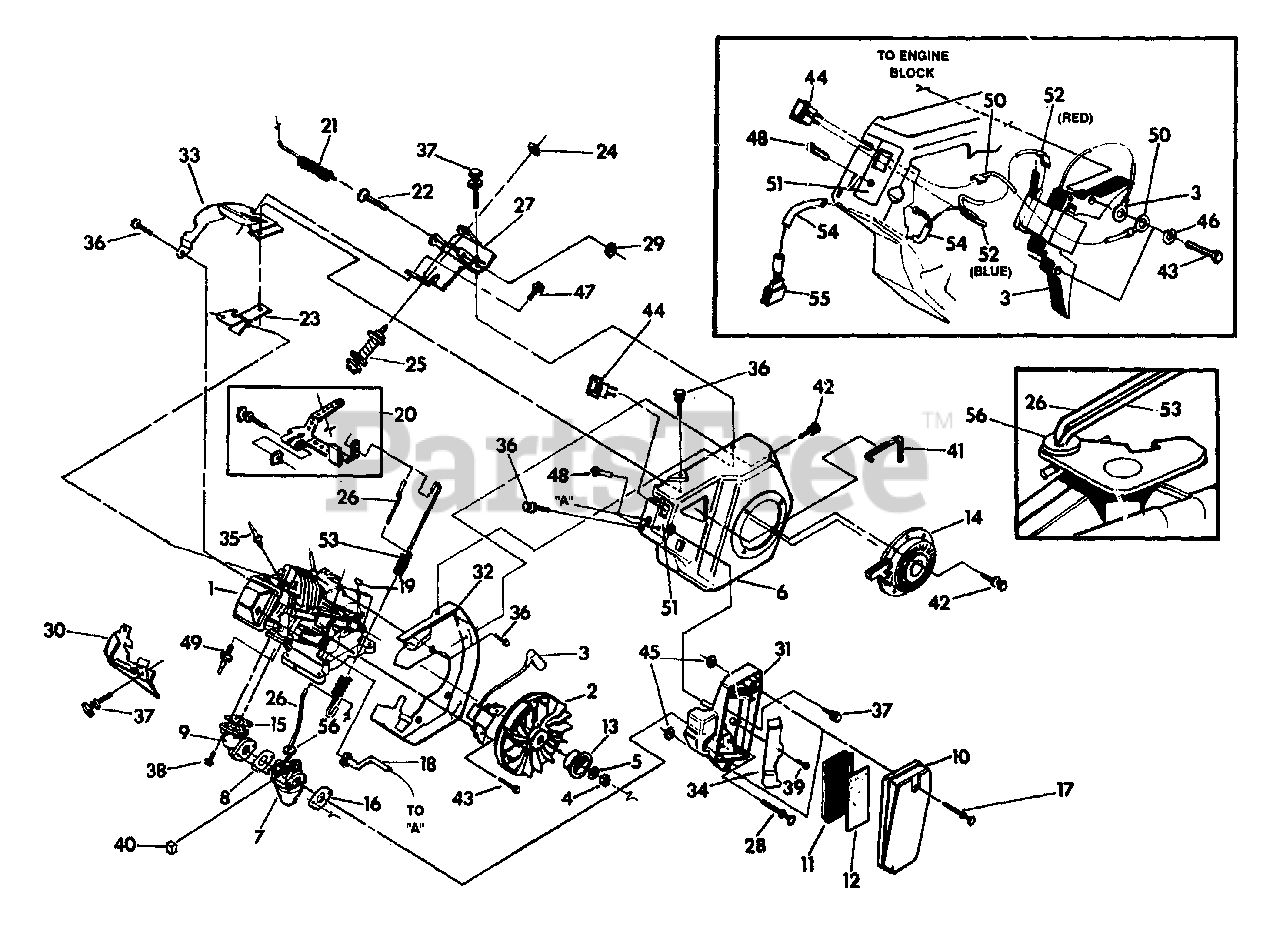

GN-190 Engine 6 HP HS Long Block - No. 83784 Parts Diagram

  • Title

1

Briggs & Stratton 83561

6 HP HS Long Block

$

$

Currently unavailable

2

Briggs & Stratton 84426A

Flywheel Assembly

$

$

Currently unavailable

3

Briggs & Stratton 81675

Ignition Coil Assembly

$

$

Currently unavailable

4

Briggs & Stratton 81810

M16-1.5 Hex Nut

$

$

Currently unavailable

5

Briggs & Stratton 83312

Conical Washer

$

$

Currently unavailable

6

Briggs & Stratton 85118

Complete Blower Housing

$

$

Currently unavailable

7

Briggs & Stratton 83666

Carburetor HS Assembly

$

$

Currently unavailable

8

Briggs & Stratton 78631

Carburetor/Manifold Gasket

$

$

Not available

9

Briggs & Stratton 77197

HS Intake Manifold

$

$

Currently unavailable

10

Briggs & Stratton 87792

Air Cleaner Assembly (with bolts)

$

$

Currently unavailable

11

Briggs & Stratton 84892

Air Filter Element

$

$

Currently unavailable

12

Briggs & Stratton 78602

Air Filter Pre-Cleaner

$

$

Not available

13

Briggs & Stratton 83015

Recoil Cup

$

$

Not available

14

Briggs & Stratton 81671

Recoil Assembly

$

$

Currently unavailable

15

Briggs & Stratton 82776

Manifold/Head Gasket

$

$

Currently unavailable

16

Briggs & Stratton 78632

Carburetor/Air Cleaner Gasket

$

$

Currently unavailable

17

Briggs & Stratton 66311

M8-1.25 Hex Jam Nut

$

$

Currently unavailable

18

Briggs & Stratton 82755

Breather Hose

$

$

Currently unavailable

19

Briggs & Stratton 82774

4 x 19 Woodruff Key

$

$

Not available

20

Briggs & Stratton 86972

Governor Lever Assembly

$

$

Currently unavailable

21

Briggs & Stratton 78604

Governor Spring

$

$

Currently unavailable

22

Briggs & Stratton 83502

Governor Adjusting Screw

$

$

Not available

23

Briggs & Stratton 83198

Air Deflector

$

$

Currently unavailable

24

Briggs & Stratton 83782

Idle Control Coil

$

$

Currently unavailable

25

Briggs & Stratton 86037

Anti-Lash Extension Spring

$

$

Currently unavailable

26

Briggs & Stratton 86384

Governor Rod

$

$

Currently unavailable

27

Briggs & Stratton 83781

Governor Adjust Bracket

$

$

Currently unavailable

28

Briggs & Stratton 78643

Carburetor Mounting Bolt

$

$

Not available

29

Briggs & Stratton 83503

M5-0.8 Mounting Lock Nut

$

$

Currently unavailable

30

Briggs & Stratton 83197

Bottom Wrapper

$

$

Currently unavailable

31

Briggs & Stratton 78607

Air Cleaner Base

$

$

Not available

32

Briggs & Stratton 78651C

Blower Housing Back Plate

$

$

Currently unavailable

33

Briggs & Stratton 83196

Top Wrapper

$

$

Currently unavailable

34

Briggs & Stratton 80303

Breather Canal Cover

$

$

Not available

35

Briggs & Stratton 72347

Champion RC12YC Spark Plug
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 45756

M6-1.0 x 10mm Taptite Bolt

$

$

Not available

37

Briggs & Stratton 66476

M6-1.0 x 12mm Capscrew with lock washer
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 80316

M6-1.0 x 30mm Capscrew with lock washer

$

$

Currently unavailable

39

Briggs & Stratton 59635

No. 8 x 3/8" Plastite Screw

$

$

Currently unavailable

40

Briggs & Stratton 83504

Choke Lever Knob

$

$

Not available

41

Briggs & Stratton 84867

Air Cleaner/Blower Housing Seal

$

$

Currently unavailable

42

Briggs & Stratton 81668

M6-1.0 x 10mm Capscrew with lock washer

$

$

Not available

43

Briggs & Stratton 82981

M6-1.0 x 30mm Taptite Bolt

$

$

Currently unavailable

44

Briggs & Stratton 78653

Shut-off Switch
(Superseded to 78653GS)

$4.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 49813

M6-1.0 Hex Nut
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 83512

M8 x 15mm Taptite Bolt
(Superseded to 83512GS)

$6.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 85272

Low Oil Indicator LED

$

$

Currently unavailable

49

Briggs & Stratton 60108

8-12 psi Oil Pressure Switch

$

$

Not available

50

Briggs & Stratton 00285271

Ground Wire Assembly

$

$

Currently unavailable

51

Briggs & Stratton 84195

LOS Engine Decal

$

$

Currently unavailable

52

Briggs & Stratton 00185271

Ignition Wire Assembly

$

$

Currently unavailable

53

Briggs & Stratton 84274

Cable Tinnerman Clamp

$

$

Currently unavailable

54

Briggs & Stratton 85620

No. 3, 145mm Sleeving

$

$

Currently unavailable

55

Briggs & Stratton 84329

3-pin, Male Housing

$

$

Currently unavailable

56

Briggs & Stratton 85953

Carburetor Wear Washer

$

$

Currently unavailable

57

Briggs & Stratton 86037

Anti-lash Extension Spring

$

$

Currently unavailable

58

Briggs & Stratton 83782

Idle Control Coil

$

$

Currently unavailable

59

Briggs & Stratton 66311

JAM-M8-1.25 Hex Nut

$

$

Currently unavailable
