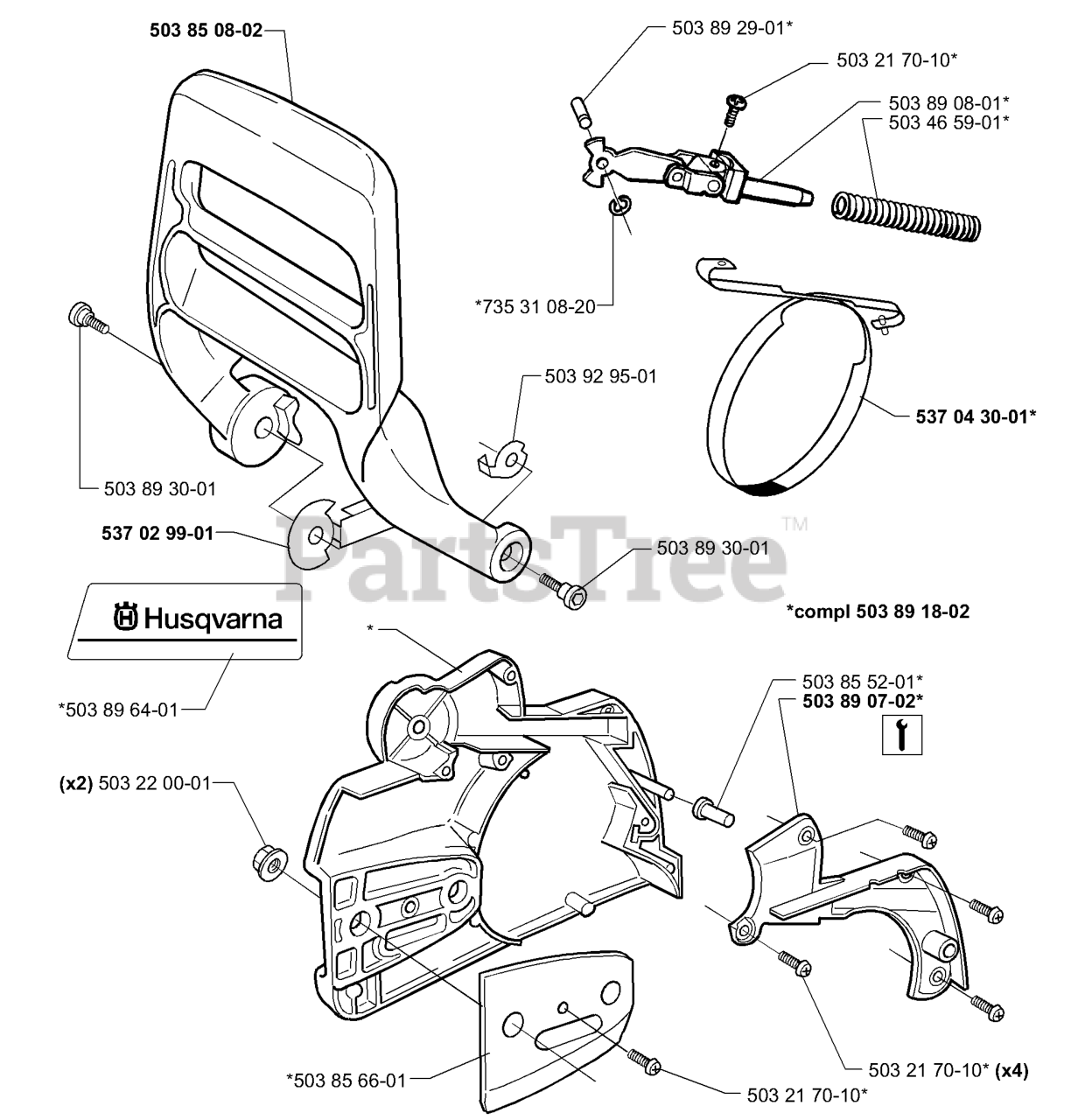

351 EPA - Husqvarna Chainsaw (1999-09) Chain Brake Assembly Parts Diagram

Chainsaw

Chain Brake Assembly Parts Diagram

  • Title

735310820

Husqvarna 735310820

E-RING 4

$3.99

$

In Stock, Qty 5

0

503929501

Husqvarna 503929501

WASHER

$

$

Not available

503893001

Husqvarna 503893001

SCREW

$5.99

$

In Stock, Qty 8

0

503892901

Husqvarna 503892901

PIN

$3.99

$

In Stock, Qty 7

0

503217010

Husqvarna 503217010

SCREW

$4.99

$

In Stock, Qty 20+

0

503890801

Husqvarna 503890801

JOINT
(Superseded to 503890802)

$26.99

$

In Stock, Qty 5

0

503465901

Husqvarna 503465901

SPRING

$8.49

$

In Stock, Qty 10

0

537043001

Husqvarna 537043001

BRAKE BAND

Note: (New Part)

$

$

Not available

503891802

Husqvarna 503891802

CHAIN BRAKE
(Superseded to 537107801)

Note: (New Part)

$83.99

$

In Stock, only 2 left!

0

503855201

Husqvarna 503855201

SLEEVE

$5.99

$

In Stock, only 1 left!

0

503890702

Husqvarna 503890702

COVER

Note: (New Part)

$

$

Not available

503217010

Husqvarna 503217010

SCREW

$4.99

$

In Stock, Qty 20+

0

503217010

Husqvarna 503217010

SCREW

$4.99

$

In Stock, Qty 20+

0

503896401

Husqvarna 503896401

DECAL
(Superseded to 537370401)

$

$

Not available

503220001

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

503856601

Husqvarna 503856601

PLATE

$6.99

$

In Stock, only 2 left!

0

503893001

Husqvarna 503893001

SCREW

$5.99

$

In Stock, Qty 8

0

537029901

Husqvarna 537029901

PROTECTOR

Note: (New Part)

$

$

Not available

503850802

Husqvarna 503850802

HANDGUARD
(Superseded to 537152801)

Note: (New Part)

$53.99

$

In Stock, only 4 left!

0
