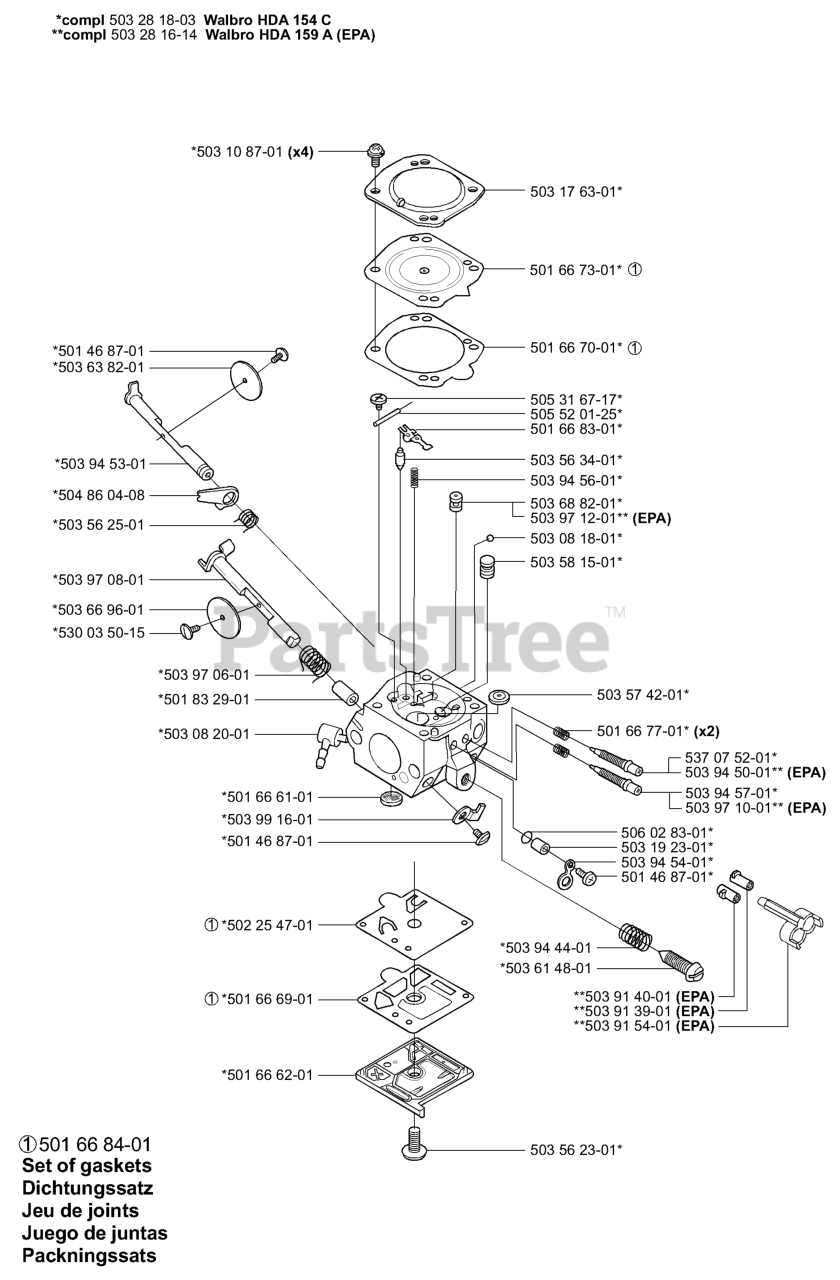

351 - Husqvarna Chainsaw (2001-06) Carburetor Parts Parts Diagram

Chainsaw

Carburetor Parts Parts Diagram

  • Title

503281803

Husqvarna 503281803

CARBURATOR HDA154B WALBRO
(Superseded to 503283207)

$125.99

$

In Stock, only 2 left!

0

503281614

Husqvarna 503281614

CARBURETOR HDA 159A EPA WALBRO
(Superseded to 503283208)

$136.99

$

In Stock, Qty 7

0

503108701

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$3.49

$

In Stock, only 3 left!

0

503176301

Husqvarna 503176301

COVER METERING DIAPHR.

$5.99

$

In Stock, only 2 left!

0

501667301

Husqvarna 501667301

METERING DIAPHRAGM

$20.99

$

In Stock, Qty 7

0

501667001

Husqvarna 501667001

GASKET, METERING SIDE

$7.99

$

In Stock, Qty 20+

0

505316717

Husqvarna 505316717

SCREW

$7.99

$

Usually ships in 3-10 days

0

505520125

Husqvarna 505520125

FULCRUM PIN

$7.99

$

Usually ships in 3-10 days

0

501668301

Husqvarna 501668301

LEVER

$26.99

$

Usually ships in 3-10 days

0

501468701

Husqvarna 501468701

SCREW

$7.99

$

In Stock, Qty 14

0

503638201

Husqvarna 503638201

CHOKE VALVE

$

$

Not available

503945301

Husqvarna 503945301

Chokeshaft

$

$

Not available

504860408

Husqvarna 504860408

LEVER CHOKE FAST IDLE
(Superseded to 537158201)

$5.99

$

Usually ships in 3-10 days

0

503562501

Husqvarna 503562501

SPRING
(Superseded to 537158101)

$

$

Not available

503970801

Husqvarna 503970801

Shaft

$

$

Not available

503669601

Husqvarna 503669601

THROTTLE VALVE

$5.99

$

Usually ships in 3-10 days

0

530035015

Husqvarna 530035015

SCREW SHUTTERS

$

$

Not available

503970601

Husqvarna 503970601

RETURN SPRING

$

$

Not available

501832901

Husqvarna 501832901

BUSHING

$

$

Not available

503563401

Husqvarna 503563401

INLET NEEDLE

$22.99

$

In Stock, Qty 14

0

503945601

Husqvarna 503945601

SPRING

$

$

Not available

503688201

Husqvarna 503688201

JET

$7.99

$

Usually ships in 3-10 days

0

503971201

Husqvarna 503971201

JET

$

$

Not available

503081801

Husqvarna 503081801

Washer

$

$

Not available

503581501

Husqvarna 503581501

JET

$5.99

$

Usually ships in 3-10 days

0

503574201

Husqvarna 503574201

WELCH PLUG

$9.49

$

In Stock, only 2 left!

0

501667701

Husqvarna 501667701

SPRING

$11.99

$

Usually ships in 3-10 days

0

503082001

Husqvarna 503082001

NIPPLE

$5.99

$

In Stock, Qty 10

0

501666101

Husqvarna 501666101

FUEL INLET SCREEN

$14.99

$

In Stock, Qty 20+

0

503991601

Husqvarna 503991601

LEVER

$

$

Not available

537075201

Husqvarna 537075201

ADJUSTING SCREW

$10.99

$

Usually ships in 3-10 days

0

503945001

Husqvarna 503945001

Adjusting Screw (EPA)

$

$

Not available

503945701

Husqvarna 503945701

IDLE NEEDLE

$6.99

$

Usually ships in 3-10 days

0

503971001

Husqvarna 503971001

Adjusting Screw (EPA)

$

$

Not available

506028301

Husqvarna 506028301

WASHER

$14.99

$

Usually ships in 3-10 days

0

503192301

Husqvarna 503192301

SPACER

$

$

Not available

503945401

Husqvarna 503945401

LEVER

$4.99

$

In Stock, only 2 left!

0

501468701

Husqvarna 501468701

SCREW

$7.99

$

In Stock, Qty 14

0

503944401

Husqvarna 503944401

SPRING

$14.99

$

Usually ships in 3-10 days

0

503614801

Husqvarna 503614801

IDLE SPEED SCREW

$

$

Not available

503914001

Husqvarna 503914001

LIMITER CAP

$5.99

$

Usually ships in 3-10 days

0

503913901

Husqvarna 503913901

LIMITER CAP

$

$

Not available

503915401

Husqvarna 503915401

CAP

$9.49

$

Usually ships in 3-10 days

0

501468701

Husqvarna 501468701

SCREW

$7.99

$

In Stock, Qty 14

0

502254701

Husqvarna 502254701

PUMP DIAPHRAGM

$31.99

$

In Stock, Qty 18

0

501666901

Husqvarna 501666901

GASKET, PUMP SIDE

$22.99

$

In Stock, Qty 14

0

501666201

Husqvarna 501666201

COVER, PUMP SIDE

$7.99

$

Usually ships in 3-10 days

0

501668401

Husqvarna 501668401

REPAIR KIT DIAPHRAGM SET

$26.99

$

In Stock, Qty 17

0

503562301

Husqvarna 503562301

Screw

$

$

Not available
