35196 (1138-G) - Gravely 38" Lawn Tractor, 11hp Briggs & Stratton, Gear Drive FRAME ASSEMBLY Parts Diagram

38" Lawn Tractor, 11hp Briggs & Stratton, Gear Drive

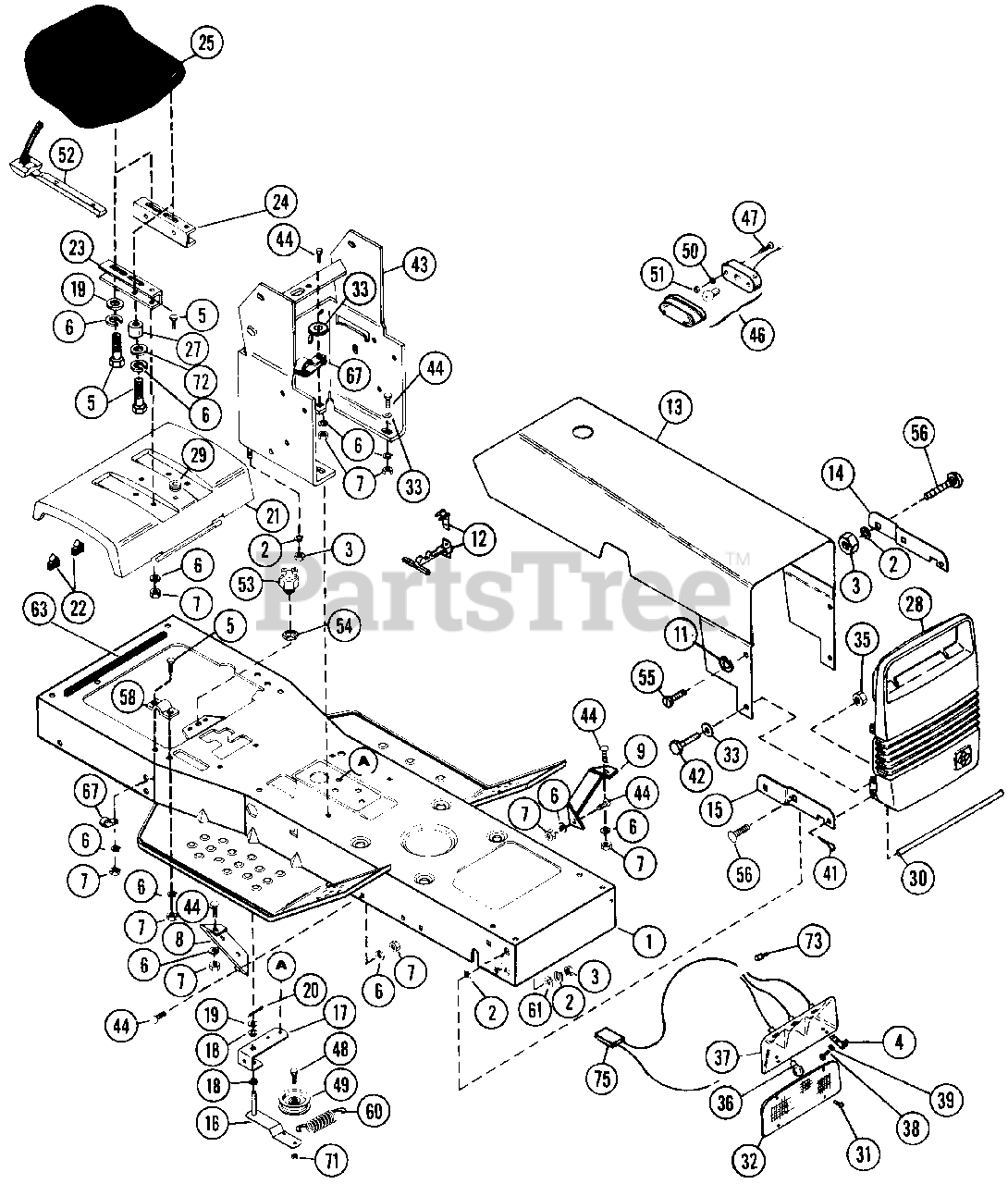

FRAME ASSEMBLY Parts Diagram

  • Title

1

Gravely 036167

FRAME

$

$

Not available

2

Gravely 120382

WASHER, LOCK 3/8 REG.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

3

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

4

Gravely 011030

CLIP, LIGHT MOUNTING
(Superseded to 20063500)

$

$

Not available

5

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

6

Gravely 131099

WASHER, LOCK 3/8 SP HEAVY
(Superseded to 06300120)

$3.49

$

In Stock, Qty 10

0

7

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

8

Gravely 036469

STRUT RIGHT FOOT BOARD
(Superseded to 03500600)

$

$

Not available

9

Gravely 036470

STRUT LEFT FOOT BOARD
(Superseded to 03500700)

$

$

Not available

11

Gravely 446179

WASHER, FLAT .250X.500X.049
(Superseded to 21071000)

$

$

Not available

12

Gravely 035294

DRAW LATCH ASSEMBLY
(Superseded to 08704700)

$25.99

$

Usually ships in 4-12 days

0

13

Gravely 035300

WELDMENT, HOOD
(Superseded to 21074700)

$

$

Not available

14

Gravely 035296

BRACKET, HOOD PIVOT(L.H.)
(Superseded to 21074500)

Note: (L.H.)

$

$

Not available

15

Gravely 035297

BRACKET, HOOD PIVOT(R.H.)
(Superseded to 21074600)

Note: (R.H.)

$

$

Not available

16

Gravely 036473

IDLER ARM
(Superseded to 03504300)

$

$

Not available

17

Gravely 036474

IDLER PIVOT
(Superseded to 03504400)

$

$

Not available

18

Gravely 036241

FLANGE BUSHING
(Superseded to 05503600)

$1.49

$

In Stock, Qty 11

0

19

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 137185

PIN, COTTER .125X1.00
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

21

Gravely 036478

REAR DECK

$

$

Not available

22

Gravely 036479

BUMPER
(Superseded to 07505400)

$

$

Not available

23

Gravely 036480

SEAT CHANNEL R.H.
(Superseded to 03540700)

$

$

Not available

24

Gravely 036481

SEAT CHANNEL L.H.
(Superseded to 03540900)

$

$

Not available

25

Gravely 036482

SEAT
(Superseded to 02756800)

$

$

Not available

27

Gravely 036484

SPACER BUSHING
(Superseded to 00607100)

$14.99

$

Usually ships in 4-12 days

0

28

Gravely 033780

CASTING, GRILLE
(Superseded to 21220800)

$

$

Not available

29

Gravely 036485

GROMMET
(Superseded to 07502600)

$

$

Not available

30

Gravely 035295

ROD, HOOD PIVOT
(Superseded to 03540300)

$

$

Not available

31

Gravely 159920

SCREW, MACHINE 10-24X.50
(Superseded to 06113000)

$1.99

$

In Stock, Qty 5

0

32

Gravely 011289

PANEL, FRONT LIGHT
(Superseded to 20070600)

$108.99

$

Usually ships in 4-12 days

0

33

Gravely 120386

WASHER, FLAT .312X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

35

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 454646

LAMP, NO. 1073
(Superseded to 21072400)

$5.99

$

Usually ships in 4-12 days

0

37

Gravely 011334

ASSEMBLY, LAMP REFLECTOR
(Superseded to 20072600)

$

$

Not available

38

Gravely 159947

SCREW, MACHINE 10-24X.75
(Superseded to 06111200)

$2.49

$

Usually ships in 4-12 days

0

39

Gravely 120385

WASHER, FLAT .188X.562X.049
(Superseded to 06409200)

$

$

Not available

41

Gravely 036185

COTTER, HAIR PIN
(Superseded to 06700222)

$0.99

$

In Stock, Qty 17

0

42

Gravely 180081

BOLT, HEX 5/16-18X1.25
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

43

Gravely 036498

DASH BASE
(Superseded to 53507100)

$

$

Not available

44

Gravely 126216

BOLT, CARRIAGE 5/16-18X.75

$

$

Not available

46

Gravely 036123

TAIL LIGHT ASSEMBLY
(Superseded to 53128400)

$119.99

$

Usually ships in 4-12 days

0

Gravely 036784

LENS
(Superseded to 03137500)

$

$

Not available

BULB, STD. GE NO. 1895

$

$

Not available

47

Gravely 159929

SCREW, MACH. 10-24X.625
(Superseded to 06111100)

$0.99

$

In Stock, Qty 16

0

48

Gravely 180126

BOLT, HEX 3/8-16X1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

49

Gravely 035851

IDLER
(Superseded to 07311100)

$39.99

$

In Stock, only 3 left!

0

50

Gravely 120217

WASHER, LOCK NO. 10 SP
(Superseded to 21049900)

$

$

Not available

51

Gravely 036506

NUT
(Superseded to 06505500)

$

$

Not available

52

Gravely 036121

SWITCH, SEAT
(Superseded to 03171600)

$

$

Not available

53

Gravely 036110

SWITCH, INTERLOCK-SHIFT
(Superseded to 02913100)

$45.99

$

In Stock, only 1 left!

0

54

Gravely 036509

NUT, HEX 9/16-18
(Superseded to 06509600)

$

$

Not available

55

Gravely 180021

BOLT, HEX 1/4-20X.875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

56

Gravely 120915

BOLT 3/8-16X1.00 RD HD SQ NK

$

$

Not available

58

Gravely 036511

BRACE
(Superseded to 02912300)

$

$

Not available

60

Gravely 036512

SPRING
(Superseded to 08305800)

$14.99

$

Usually ships in 4-12 days

0

61

Gravely 120388

WASHER, FLAT .438X1.000X.083
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

63

Gravely 036515

FOAM TAPE
(Superseded to 03076600)

$

$

Not available

67

Gravely 036518

J-CLAMP
(Superseded to 06909400)

$3.49

$

In Stock, Qty 11

0

71

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

72

Gravely 036523

WASHER, .505X.775X24
(Superseded to 06403800)

$2.49

$

In Stock, only 2 left!

0

73

Gravely 011763

NUT, WIRE
(Superseded to 07016700)

$

$

Not available

75

Gravely 036788

HEADLIGHT WIRING HARNESS
(Superseded to 03543300)

$

$

Not available

Gravely 035323

DECAL, MODEL 1138
(Superseded to 03540000)

$

$

Not available

Gravely 035324

DECAL, SIDE STRIPE
(Superseded to 03540100)

$

$

Not available

Gravely 024588

DECAL, GRAVELY LOGO
(Superseded to 05201500)

$22.99

$

Usually ships in 4-12 days

0

Gravely 024608

DECAL, GRAVELY LOGO
(Superseded to 02460800)

$28.99

$

Usually ships in 4-12 days

0

Gravely 035318

DECAL, TRACTOR 1138
(Superseded to 03542900)

$

$

Not available

Gravely 035317

DECAL, CONSOLE

$

$

Not available
