35198 - Gravely 26" Tiller for 1100 & 1200 Series Tractor

26" Tiller for 1100 & 1200 Series Tractor

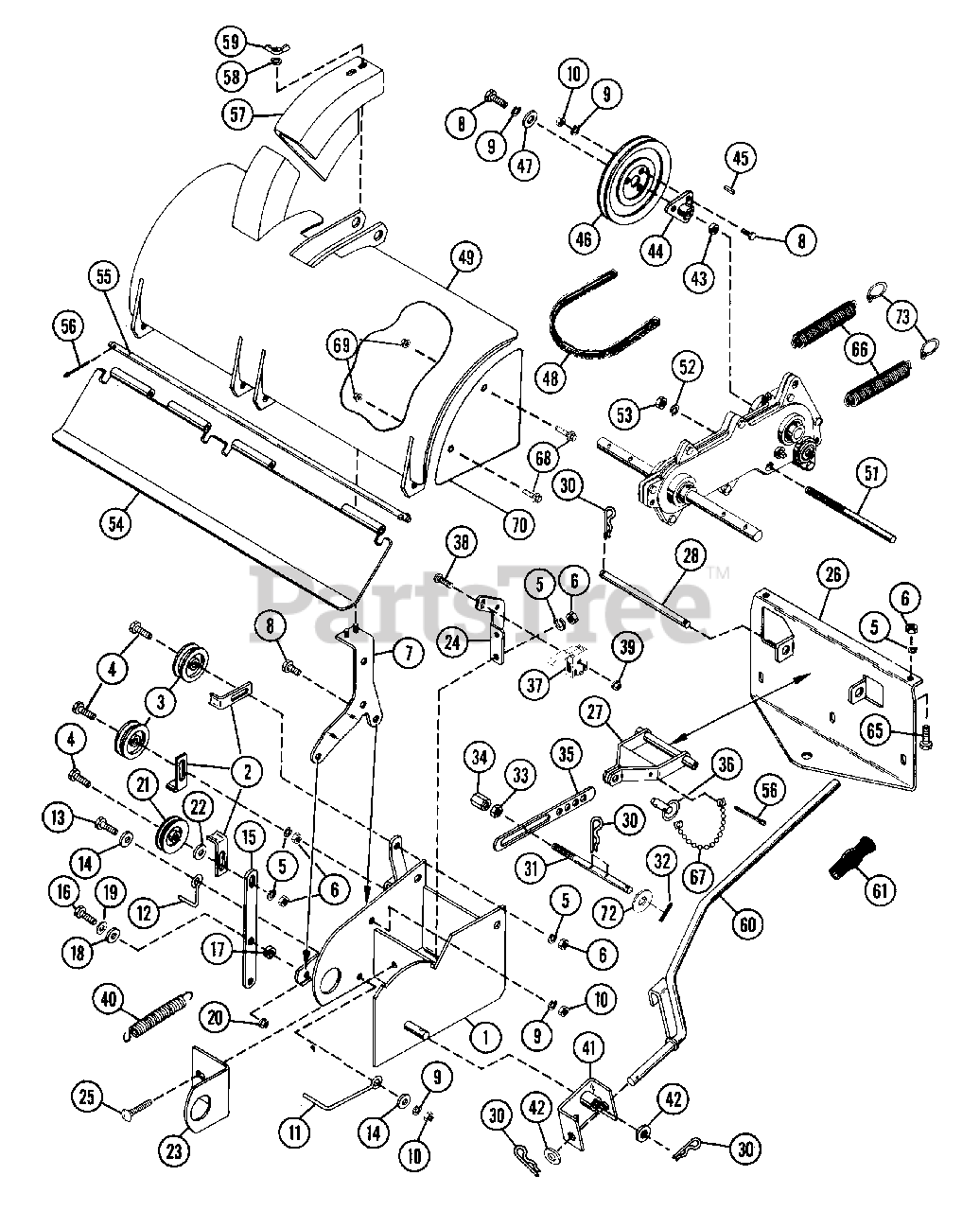

35198 - Gravely 26" Tiller for 1100 & 1200 Series Tractor > Parts Diagrams (3) > FRAME ASSEMBLY

  • Title
035849

1

FRAME

Part# 035849

OEM Warranty Repair Part for Gravely

Not available

035850

2

BELT FINGER

Part# 035850 (Superseded to 03528200)

OEM Warranty Repair Part for Gravely

Not available

035851

3

IDLER

Part# 035851 (Superseded to 07311100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

180128

4

BOLT, HEX 3/8-16X1.75

Part# 180128 (Superseded to 05958500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

120382

5

LOCKWASHER 3/8

Part# 120382 (Superseded to 06308800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

120377

6

NUT 3/8

Part# 120377 (Superseded to 06529400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

035855

7

BRACKET, BELT GUARD

Part# 035855 (Superseded to 03527200)

OEM Warranty Repair Part for Gravely

Not available

180077

8

BOLT, HEX 5/16-18X1.25

Part# 180077 (Superseded to 05947000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

131099

9

LOCKWASHER 5/16

Part# 131099 (Superseded to 06306500)

OEM Warranty Repair Part for Gravely

Not available

120376

10

NUT 5/16-18

Part# 120376 (Superseded to 06529200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

035859

11

BELT FINGER

Part# 035859 (Superseded to 03530600)

OEM Warranty Repair Part for Gravely

Not available

035860

12

BELT FINGER

Part# 035860 (Superseded to 03533000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

180077

13

BOLT, HEX 5/16-18X1.25

Part# 180077 (Superseded to 05947000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

120394

14

WASHER, 5/16

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

035863

15

CLUTCH ARM

Part# 035863 (Superseded to 03528600)

OEM Warranty Repair Part for Gravely

Not available

180079

16

BOLT, HEX 5/16-18X1

Part# 180079 (Superseded to 05946900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

036484

17

SPACER BUSHING

Part# 036484 (Superseded to 00607100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

036523

18

WASHER .5X.875

Part# 036523 (Superseded to 06403800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

120386

19

WASHER .312X.625

Part# 120386 (Superseded to 06435800)

OEM Warranty Repair Part for Gravely

Not available

413447

20

NUT, FLANGE

Part# 413447 (Superseded to 06529800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

036256

21

IDLER

Part# 036256 (Superseded to 07310900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $23.42

120394

22

WASHER .380X13/16

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

035871

23

BRACKET

Part# 035871 (Superseded to 03528400)

OEM Warranty Repair Part for Gravely

Not available

035872

24

BRACKET, SWITCH

Part# 035872 (Superseded to 03528300)

OEM Warranty Repair Part for Gravely

Not available

120915

25

BOLT, CARRIAGE 3/8-16X1

Part# 120915

OEM Warranty Repair Part for Gravely

Not available

035874

26

DRAW BAR, TILLER

Part# 035874 (Superseded to 03528100)

OEM Warranty Repair Part for Gravely

Not available

035875

27

DEPTH CONTROL

Part# 035875 (Superseded to 03528000)

OEM Warranty Repair Part for Gravely

Not available

035876

28

MOUNTING PIN

Part# 035876 (Superseded to 03530100)

OEM Warranty Repair Part for Gravely

Not available

036058

29

COMP. SPRING

Part# 036058 (Superseded to 08313200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.23

035878

30

HAIR PIN

Part# 035878 (Superseded to 06711900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

035879

31

PIN

Part# 035879

OEM Warranty Repair Part for Gravely

Not available

273936

32

ROLL PIN

Part# 273936 (Superseded to 05800900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

120238

33

NUT, JAM

Part# 120238 (Superseded to 06529300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

035882

34

ROD, ADJ.

Part# 035882 (Superseded to 03530400)

OEM Warranty Repair Part for Gravely

Not available

035883

35

DEPTH BAR

Part# 035883 (Superseded to 03528500)

OEM Warranty Repair Part for Gravely

Not available

035884

36

LATCH PIN

Part# 035884 (Superseded to 03532700)

OEM Warranty Repair Part for Gravely

Not available

036107

37

SWITCH, INTERLOCK

Part# 036107 (Superseded to 02707800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

159929

38

SCREW, MACHINE 10-24X1

Part# 159929 (Superseded to 06111100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

036191

39

NUT, KEPS

Part# 036191 (Superseded to 06536600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

035888

40

SPRING, DRIVE

Part# 035888 (Superseded to 08322100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.66

035889

41

HANDLE PIVOT

Part# 035889 (Superseded to 03527400)

OEM Warranty Repair Part for Gravely

Not available

131018

42

WASHER

Part# 131018 (Superseded to 21053300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

035891

43

SPACER

Part# 035891 (Superseded to 03530500)

OEM Warranty Repair Part for Gravely

Not available

035892

44

HUB

Part# 035892 (Superseded to 50202100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $67.02

035893

45

KEY, ST. 3/16X3/16X5/8

Part# 035893 (Superseded to 06601700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

035894

46

SHEAVE

Part# 035894 (Superseded to 07307000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $33.48

120393

47

WASHER .323X1

Part# 120393 (Superseded to 06437200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

035896

48

V-BELT

Part# 035896 (Superseded to 07212800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $31.25

035897

49

TINE SHIELD

Part# 035897

OEM Warranty Repair Part for Gravely

Not available

024588

NS

DECAL

Part# 024588 (Superseded to 05201500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

035315

NS

DECAL

Part# 035315 (Superseded to 03549300)

OEM Warranty Repair Part for Gravely

Not available

180735

50

BOLT, HEX 5/16-18X3

Part# 180735 (Superseded to 05971700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

035899

51

LIFT PIN

Part# 035899 (Superseded to 03530700)

OEM Warranty Repair Part for Gravely

Not available

131046

52

LOCKWASHER 3/4

Part# 131046 (Superseded to 06310300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

426897

53

NUT, JAM 3/4-10

Part# 426897 (Superseded to 06537700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

035902

54

TAILBOARD

Part# 035902 (Superseded to 03527100)

OEM Warranty Repair Part for Gravely

Not available

035903

55

ROD

Part# 035903 (Superseded to 03527600)

OEM Warranty Repair Part for Gravely

Not available

121222

56

COTTER PIN 3/32X.75

Part# 121222 (Superseded to 06706900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

035905

57

SHIELD

Part# 035905 (Superseded to 03528700)

OEM Warranty Repair Part for Gravely

Not available

121753

58

LOCKWASHER 1/4

Part# 121753 (Superseded to 21051100)

OEM Warranty Repair Part for Gravely

Not available

126177

59

NUT, WING 1/4-20

Part# 126177 (Superseded to 21051800)

OEM Warranty Repair Part for Gravely

Not available

035908

60

LIFT HANDLE

Part# 035908 (Superseded to 03527000)

OEM Warranty Repair Part for Gravely

Not available

035909

61

GRIP

Part# 035909 (Superseded to 07510800)

OEM Warranty Repair Part for Gravely

Not available

033927

NS

DECAL

Part# 033927 (Superseded to 05350100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

413534

64

LOCKNUT 3/8

Part# 413534 (Superseded to 06529600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

180122

65

BOLT, HEX 3/8-16X1

Part# 180122 (Superseded to 05948700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

035913

66

SPRING

Part# 035913 (Superseded to 08319000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $33.48

035914

67

CHAIN

Part# 035914 (Superseded to 02716900)

OEM Warranty Repair Part for Gravely

Not available

035915

68

FLANGE SCREW

Part# 035915 (Superseded to 07002700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

413447

69

FLANGE NUT

Part# 413447 (Superseded to 06529800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

035917

70

SIDE PLATE

Part# 035917 (Superseded to 03549200)

OEM Warranty Repair Part for Gravely

Not available

036517

NS

WIRE CLIP

Part# 036517 (Superseded to 07510700)

OEM Warranty Repair Part for Gravely

Not available

120389

72

WASHER 1/2

Part# 120389 (Superseded to 06441000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

035920

73

SPRING HOOK

Part# 035920 (Superseded to 03533600)

OEM Warranty Repair Part for Gravely

Not available

036789

74

CAP SCREW

Part# 036789

OEM Warranty Repair Part for Gravely

Not available

036790

75

ADAPTOR

Part# 036790 (Superseded to 03532900)

OEM Warranty Repair Part for Gravely

Not available

035910

NS

WIRING HARNESS

Part# 035910 (Superseded to 03530800)

OEM Warranty Repair Part for Gravely

Not available
