35199 - Gravely 38" Grass Bagger for 1100 & 1200 Series Tractor GRASS CATCHER 38" Parts Diagram

38" Grass Bagger for 1100 & 1200 Series Tractor

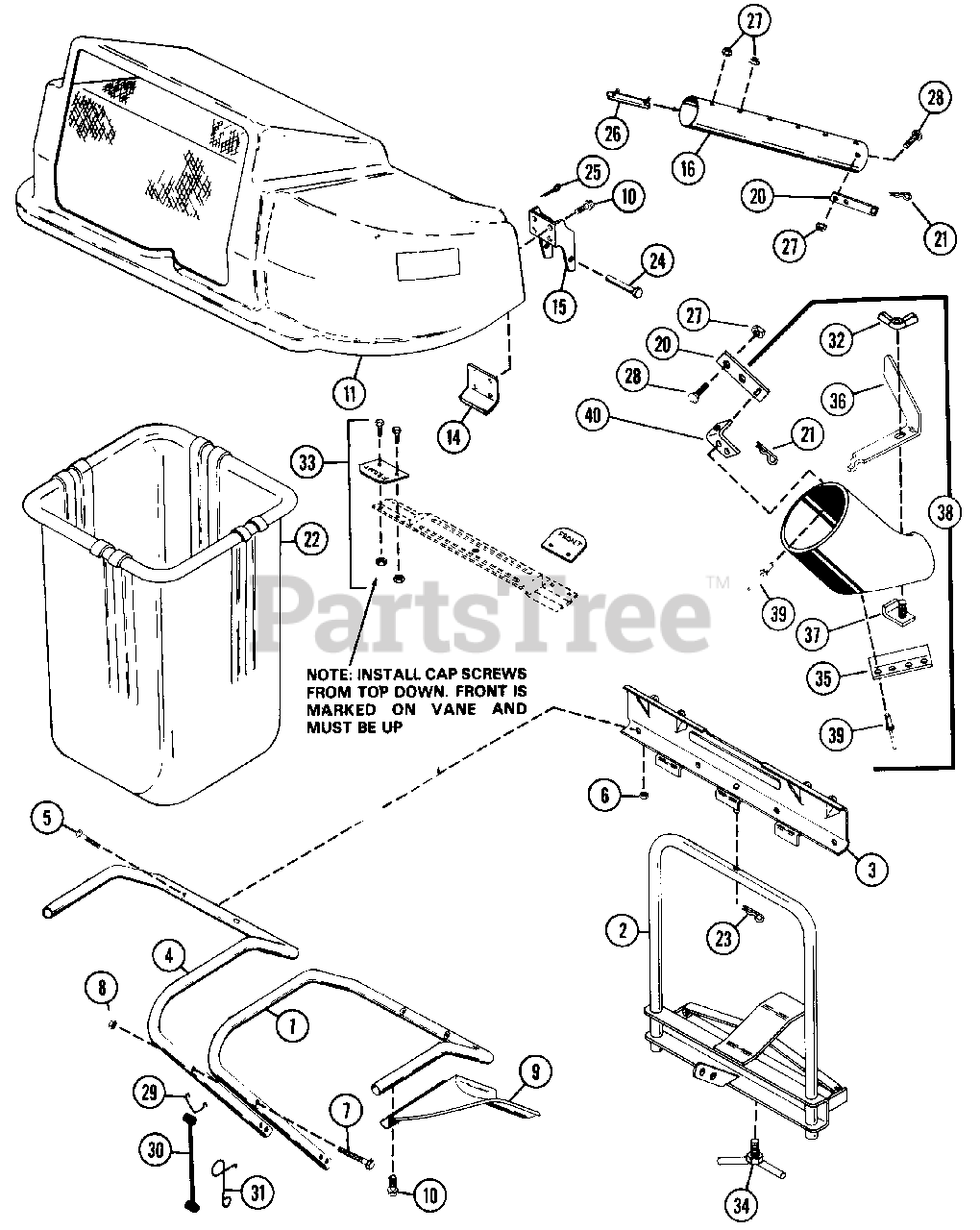

GRASS CATCHER 38" Parts Diagram

  • Title

1

Gravely 035805

TUBE R.H. SUPPORT
(Superseded to 02530900)

$

$

Not available

2

Gravely 035806

ATTACHMENT FRAME

$

$

Not available

3

Gravely 035807

FRAME
(Superseded to 03526000)

$

$

Not available

4

Gravely 035808

TUBE L.H. SUPPORT
(Superseded to 02536800)

$

$

Not available

5

Gravely 035809

SCR-MCH .31-18 X 1.50 YWZC
(Superseded to 06119100)

$

$

Not available

6

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

7

Gravely 180046

BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 424215

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 035813

SUPPORT
(Superseded to 02537100)

$

$

Not available

10

Gravely 035814

BLT-SCRHFWH .25-20X.62 PL
(Superseded to 07002200)

$

$

Not available

11

Gravely 035993

COVER
(Superseded to 02527400)

$

$

Not available

NS

Gravely 024588

DECAL,GRAVELY LOGO
(Superseded to 05201500)

$23.99

$

Usually ships in 4-12 days

0

14

Gravely 035816

RETAINER
(Superseded to 02534800)

$

$

Not available

15

Gravely 035817

HINGE
(Superseded to 02531600)

$

$

Not available

16

Gravely 035818

TUBE BLANK
(Superseded to 01226700)

$

$

Not available

20

Gravely 035819

BOOT STRAP
(Superseded to 53506100)

$

$

Not available

21

Gravely 036566

PIN-HAIR INT .09X.188 PL
(Superseded to 06702900)

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 035821

BASKET
(Superseded to 02532600)

$

$

Not available

23

Gravely 036075

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 2 left!

0

24

Gravely 035823

CLEVIS PIN
(Superseded to 02531700)

$

$

Not available

25

Gravely 112726

COTTER PIN 1/16X.50
(Superseded to 21049300)

$

$

Not available

26

Gravely 035825

CLIP
(Superseded to 02533300)

$

$

Not available

27

Gravely 424215

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 110356

BLT,CARRIAGE 1/4-20X.5
(Superseded to 21048900)

$

$

Not available

29

Gravely 035828

ANCHOR
(Superseded to 02533000)

$

$

Not available

30

Gravely 035829

BATTERY STRAP
(Superseded to 07507500)

$15.99

$

Usually ships in 4-12 days

0

31

Gravely 035830

HOOK
(Superseded to 02738100)

$7.49

$

In Stock, only 4 left!

0

32

Gravely 148313

NUT-WING .312-18 YWZC
(Superseded to 06503800)

$2.99

$

Usually ships in 4-12 days

0

33

Gravely 035832

SERVICE VANE PACKAGE
(Superseded to 53504600)

$54.99

$

Usually ships in 4-12 days

0

Gravely 036779

VANES

$

$

Not available

Gravely 181595

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, Qty 5

0

Gravely 035834

NUT-LK TOP .312-24 PL GR C
(Superseded to 06514500)

$

$

Not available

34

Gravely 035835

T-HANDLE BOLT
(Superseded to 03525900)

$

$

Not available

35

Gravely 035836

EXTENSION CHUTE
(Superseded to 02532200)

$

$

Not available

36

Gravely 035837

BOOT STRAP
(Superseded to 03536400)

$

$

Not available

37

Gravely 035838

CLIP CONE
(Superseded to 02532300)

$

$

Not available

38

Gravely 035839

GRASS CATCHER BOOT ASSEMBLY
(Superseded to 53505600)

$

$

Not available

Gravely 036780

GRASS CATCHER BOOT ASSEMBLY
(Superseded to 53505600)

$

$

Not available

39

Gravely 036782

RVT-TBLR .187X.375 OH ST PL
(Superseded to 06806200)

$

$

Not available

40

Gravely 036783

RETAINER
(Superseded to 02539600)

$

$

Not available
