352 (190-352-100) - Cub Cadet 54" Blade att Blade Parts Diagram

54" Blade

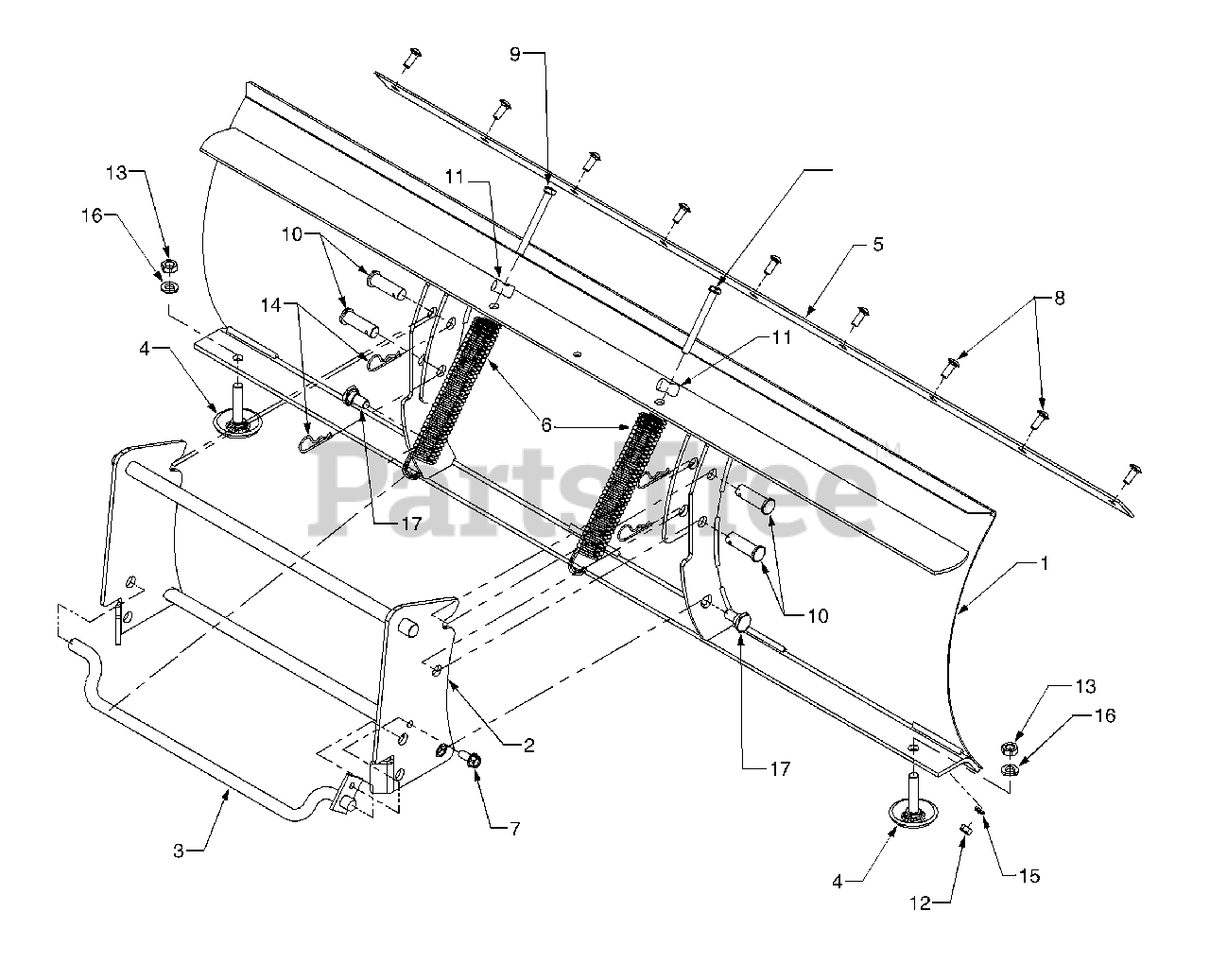

Blade Parts Diagram

  • Title

1

Cub Cadet 603-0658

Assembly, Blade 54"

Variations

603-0658-0498

Cub Cadet 603-0658-0498

USE 603-0658-0716 BLADE ASSY- - OLD CUB YELLOW (0498)

$

$

Not available

603-0658-0716

Cub Cadet 603-0658-0716

BLADE ASSY-54" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

2

Cub Cadet 603-0659

Assembly, Sub Hitch

Variations

603-0659-0498

Cub Cadet 603-0659-0498

HITCH ASSY-SUB - OLD CUB YELLOW (0498)

$

$

Not available

603-0659-0716

Cub Cadet 603-0659-0716

HITCH ASSY-SUB - CUB YELLOW-99 (0716)

$

$

Not available

$

$

3

Cub Cadet 603-0660

Assembly, Spring Return

$

$

Not available

4

Cub Cadet 703-0650

Assembly, Skid Shoe

Variations

703-0650-0637

Cub Cadet 703-0650-0637

Snow Skid Shoe - POWDER BLACK (0637)

$49.99

$

In Stock, only 4 left!

0

$49.99

$

In Stock, only 4 left!

0

5

Cub Cadet 703-0659

Plate, Shave
(Superseded to 703-0659-0637)

Variations

703-0659-0637

Cub Cadet 703-0659-0637

Edger Blade - POWDER BLACK (0637)

$101.99

$

Usually ships in 3-6 days

0

$101.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-1633

Assembly, Extension Spring
(Superseded to 903-1633-0499)

Variations

703-1633-0499

Cub Cadet 703-1633-0499

Extension Spring, Beige - CUB BEIGE (0499)

$90.99

$

Usually ships in 3-6 days

0

$90.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0623

Screw, Hex Wash. Hd.Tap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 12

0

8

Cub Cadet 710-3105

Bolt, Carriage 5/16-18 x 7/8 Lg.

$6.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3198

Bolt, Hex, 3/8-16 x 3.5" Lg.

$9.99

$

In Stock, only 1 left!

0

10

Cub Cadet 711-0174

Pin, Clevis

$

$

Not available

11

Cub Cadet 711-3247

Roller, Spring

$22.99

$

In Stock, only 2 left!

0

12

Cub Cadet 712-3010

Nut, Hex 5/16-18 Thd, Gr.5

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3048

Nut, Jam 1/2-13 Thd. Gr. 5

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 714-3020

Pin, Internal, Cotter

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0119

Washer, Lock 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0921

Washer, Lock 1/2" I.D.

$4.99

$

In Stock, Qty 9

0

17

Cub Cadet 738-0816

Screw, Shoulder
(Superseded to 938-0816)

$

$

Not available
