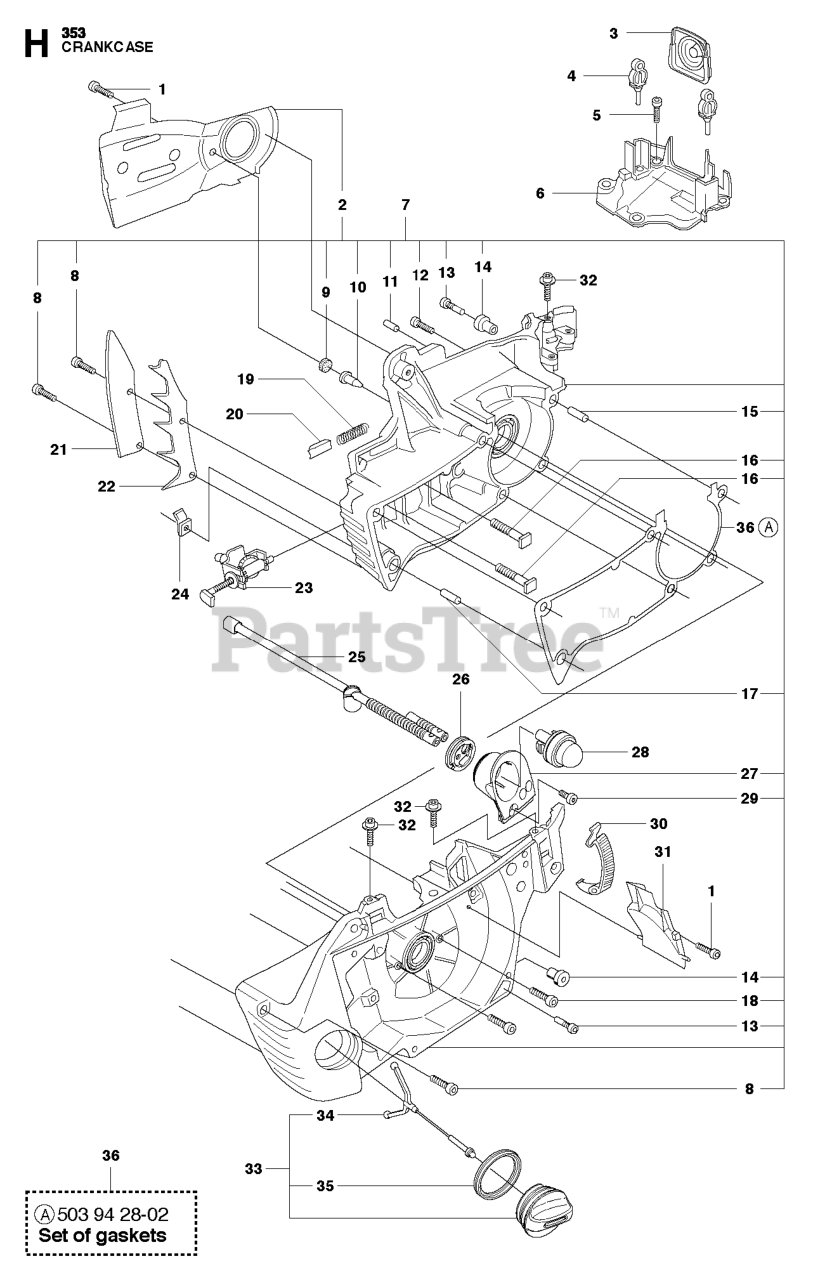

353 - Husqvarna Chainsaw CRANKCASE Parts Diagram

Chainsaw

CRANKCASE Parts Diagram

  • Title

12

Husqvarna 503200870

SCREW

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 503202516

SCREW

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 503436501

LOCK SPRING

$3.49

$

In Stock, Qty 20+

0

31

Husqvarna 503888601

DEFLECTOR

$6.99

$

In Stock, only 2 left!

0

13

Husqvarna 503215101

SCREW

$3.49

$

In Stock, only 2 left!

0

2

Husqvarna 503875601

PLATE

Note: - up to s/n 20071299999.

$

$

Not available

11

Husqvarna 721120730

PIN

$4.99

$

In Stock, only 1 left!

0

35

Husqvarna 501626801

OILCAP GASKET

$4.99

$

In Stock, only 3 left!

0

8

Husqvarna 503200776

SCREW

$4.99

$

In Stock, Qty 8

0

24

Husqvarna 596970401

CHAIN CATCH

$

$

Not available

10

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

Note: From s/n 20072500002 -

$5.99

$

In Stock, Qty 20+

0

2

Husqvarna 537405601

CHAIN GUIDE PLATE

Note: From s/n 20071300001 -

$

$

Not available

14

Husqvarna 503869201

MOVEMENT LIMITER

$9.49

$

In Stock, only 2 left!

0

32

Husqvarna 503213901

SCREW

$

$

Not available

36

Husqvarna 503942802

GASKET SET

Note: A = Set of gaskets

$17.99

$

In Stock, only 1 left!

0

9

Husqvarna 537403501

PLUG
(Superseded to 537403502)

$3.49

$

In Stock, Qty 9

0

15

Husqvarna 503905601

Sleeve

$

$

Not available

5

Husqvarna 503217512

SCREW

$

$

Not available

22

Husqvarna 503905901

SPIKE

$9.49

$

Usually ships in 3-10 days

0

29

Husqvarna 544449701

SCREW IHSCT

$7.99

$

In Stock, only 1 left!

0

30

Husqvarna 503894701

BUCKLE ORANGE

Note: orange, 353

$

$

Not available

20

Husqvarna 503892401

CATCH

$6.99

$

In Stock, Qty 5

0

28

Husqvarna 503936601

AIR PURGE BUBBLE

$24.99

$

In Stock, Qty 20+

0

10

Husqvarna 537040301

VALVE

Note: - up to s/n 20072500001.

$5.99

$

In Stock, Qty 5

0

3

Husqvarna 537146501

BELLOWS

$17.99

$

In Stock, Qty 8

0

4

Husqvarna 503869301

SUPPORT
(Superseded to 597909701)

$6.99

$

In Stock, only 1 left!

0

1

Husqvarna 503217412

SCREW

$3.49

$

In Stock, only 1 left!

0

33

Husqvarna 537281502

OIL TANK CAP GREY

$11.99

$

In Stock, Qty 20+

0

21

Husqvarna 503930401

BUMPER

$10.99

$

Usually ships in 3-10 days

0

34

Husqvarna 503578901

TANK LOCK

$5.99

$

In Stock, Qty 9

0

17

Husqvarna 503905601

Sleeve

$

$

Not available

23

Husqvarna 537071201

CHAIN TENSIONER

$20.99

$

In Stock, only 2 left!

0

25

Husqvarna 544331002

HOSE

$

$

Not available

16

Husqvarna 503875401

BOLT

$6.99

$

In Stock, Qty 6

0

6

Husqvarna 544360701

CARBURETOR AREA BASE

$

$

Not available

7

Husqvarna 537171905

CRANKCASE ASSY

Note: From s/n 20030500501 -

$

$

Not available

27

Husqvarna 579347201

BRACKET

$

$

Not available

26

Husqvarna 504010901

LINING

$

$

Not available
