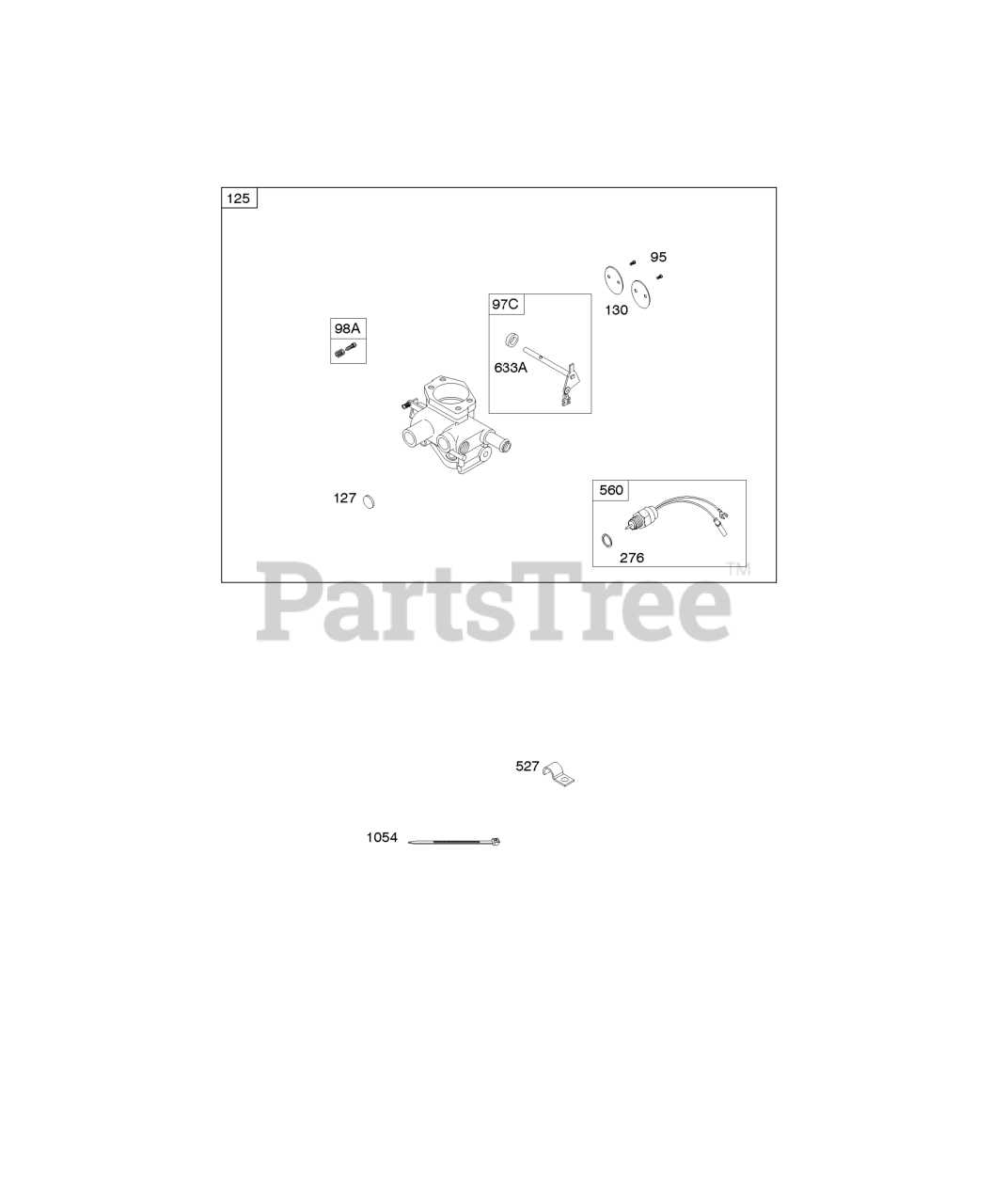

354447-0122-E1 - Briggs & Stratton Horizontal Engine Carburetor, Fuel Supply Parts Diagram

Horizontal Engine

Carburetor, Fuel Supply Parts Diagram

  • Title

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

In Stock, only 2 left!

0

97C

Briggs & Stratton 808397

Shaft-Throttle

$42.99

$

Usually ships in 2-12 days

0

98A

Briggs & Stratton 808981

Kit-Idle Speed

$40.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 808692

Carburetor

$390.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 806460

Plug-Welch

$11.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 806132

Valve-Throttle
(Superseded to 84003952)

$17.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 690704

Washer-Sealing

Note: (Governor Crank)

$5.99

$

In Stock, only 2 left!

0

276

Briggs & Stratton 806998

Washer-Sealing
(Superseded to 693497)

Note: (LP/NG Fuel Switch)

$8.49

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 690423

CLAMP, Tube

$5.49

$

Usually ships in 2-12 days

0

560

Briggs & Stratton 808693

Switch-LP/NG Fuel

$175.99

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 695414

Seal-Choke/Thr Shaft
(Superseded to 806131)

$6.49

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0
