355 FXT - Husqvarna Brush Cutter (2007-08) Clutch/Drum/Housing Parts Diagram

Brush Cutter

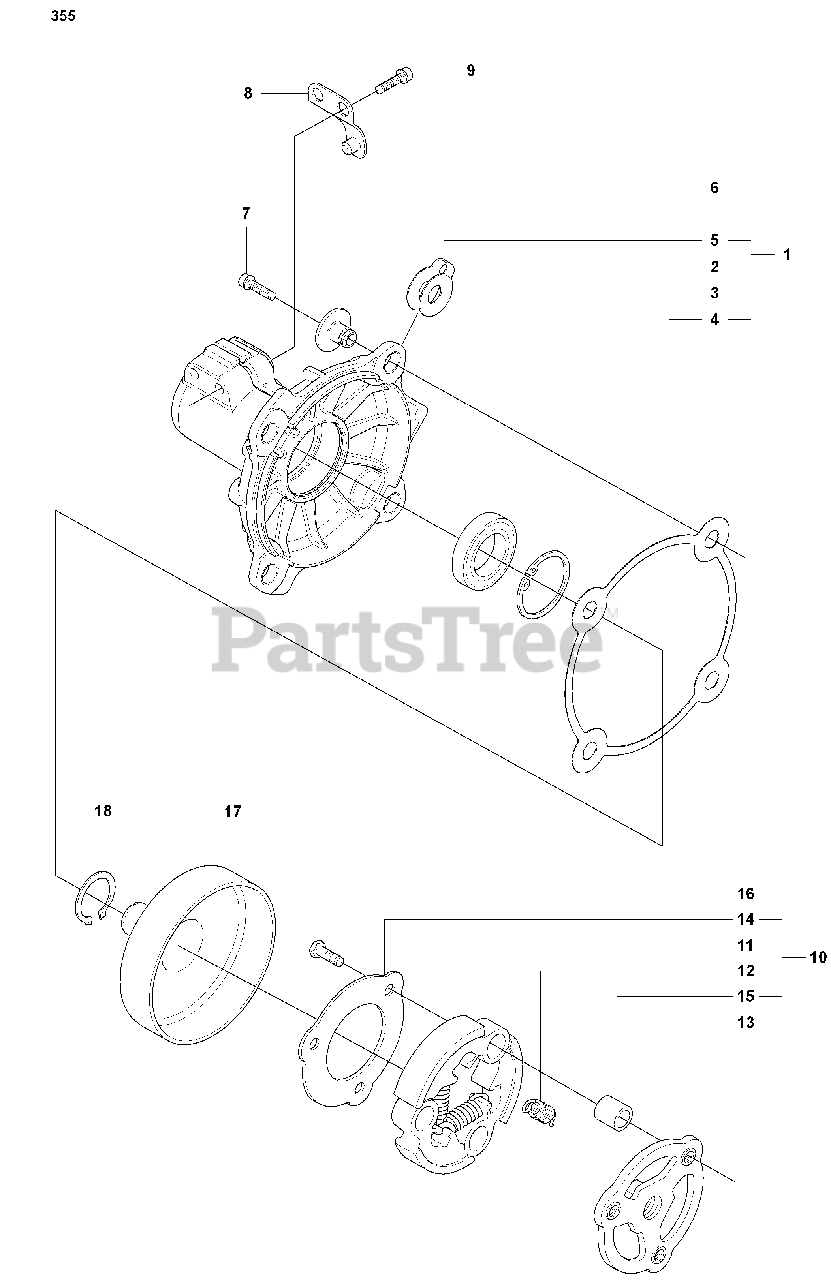

Clutch/Drum/Housing Parts Diagram

  • Title

1

Note: Incl. Pos. 2-6

$

$

Not available

2

Husqvarna 738220219

BALL BEARING 6202-2RS1

$37.99

$

Usually ships in 3-10 days

0

3

Husqvarna 735313310

RETAINING RING SGH 35

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 544908101

WASHER

$

$

Not available

5

Husqvarna 544093601

SPRING PLATE
(Superseded to 544093602)

$

$

Not available

6

Husqvarna 544093501

SPACING SLEEVE
(Superseded to 544093502)

$

$

Not available

7

Husqvarna 503200778

SCREW

$5.99

$

In Stock, only 3 left!

0

8

Husqvarna 544294801

LOCKING PLATE

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 725537265

SCREW

$4.99

$

Usually ships in 3-10 days

0

10

Note: Incl. Pos. 11-16

$

$

Not available

11

Husqvarna 537403701

CLUTCH SHOE

$20.99

$

Usually ships in 3-10 days

0

12

Husqvarna 503953801

%SPRING
(Superseded to 505435302)

$8.99

$

Usually ships in 3-10 days

0

13

Husqvarna 537403601

CLUTCH HUB

$31.99

$

Usually ships in 3-10 days

0

14

Husqvarna 544892801

WASHER

$

$

Not available

15

Husqvarna 537135401

BUSHING

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 503201802

SCREW

$5.99

$

In Stock, only 1 left!

0

17

Husqvarna 537321801

RP CLUTCH DRUM ASSY
(Superseded to 575861601)

$

$

Not available

18

Husqvarna 735311700

RETAINING RING SGA 15

$5.99

$

In Stock, Qty 12

0
