355 RX - Husqvarna String Trimmer (2007-08) Gearbox/355Rx Parts Diagram

String Trimmer

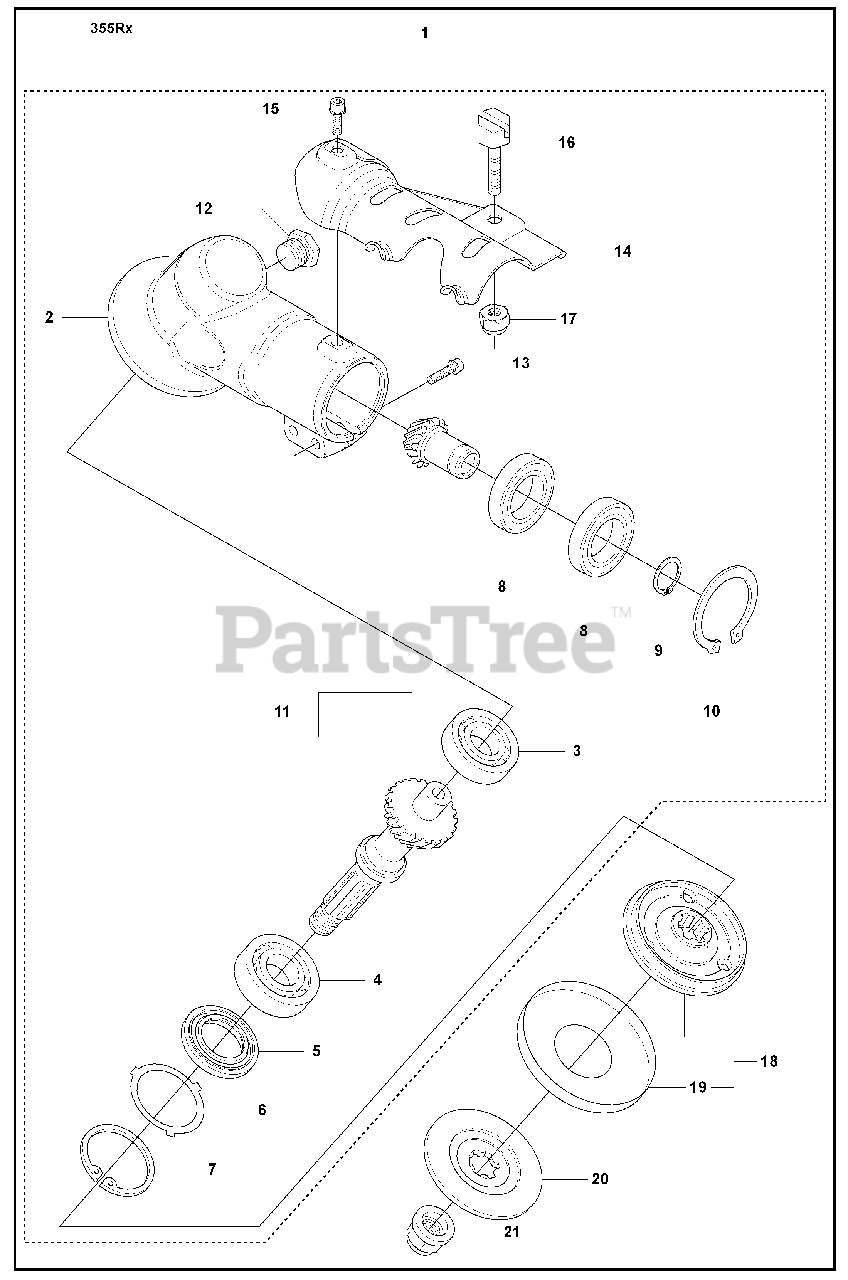

Gearbox/355Rx Parts Diagram

  • Title

1

Note: Incl. Pos. 2-17

$

$

Not available

2

Husqvarna 537428501

GEAR HOUSING
(Superseded to 537428403)

$1253.99

$

Usually ships in 3-10 days

0

3

Husqvarna 738210110

BALL BEARING

$13.99

$

In Stock, only 2 left!

0

4

Husqvarna 503250801

BALL BEARING

$13.99

$

In Stock, Qty 9

0

5

Husqvarna 544809201

SEALING

$

$

Not available

6

Husqvarna 503758901

WASHER

$3.49

$

In Stock, only 1 left!

0

7

Husqvarna 735313310

RETAINING RING SGH 35

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 738218712

BALL BEARING

$37.99

$

Usually ships in 3-10 days

0

9

Husqvarna 735311700

RETAINING RING SGA 15

$3.49

$

In Stock, Qty 6

0

10

Husqvarna 735313110

RETAINING RING

$3.49

$

In Stock, only 2 left!

0

11

Husqvarna 502434601

BEVEL GEAR
(Superseded to 537428403)

$1253.99

$

Usually ships in 3-10 days

0

12

Husqvarna 503201501

PLUG

$5.99

$

In Stock, only 4 left!

0

13

Husqvarna 725537265

SCREW

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 544107801

ATTACHMENT PLATE
(Superseded to 544895701)

$14.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503200776

SCREW

$4.99

$

In Stock, Qty 10

0

16

Husqvarna 537189501

SCREW

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$3.49

$

In Stock, only 3 left!

0

18

Note: Incl. Pos. 19

$

$

Not available

19

Husqvarna 537240301

GRASS SEALING

$13.99

$

Usually ships in 3-10 days

0

20

Husqvarna 544217801

SUPPORT FLANGE
(Superseded to 537343502)

$22.99

$

In Stock, only 2 left!

0

21

Husqvarna 503227301

BLADE NUT
(Superseded to 502291101)

$7.99

$

In Stock, only 2 left!

0
