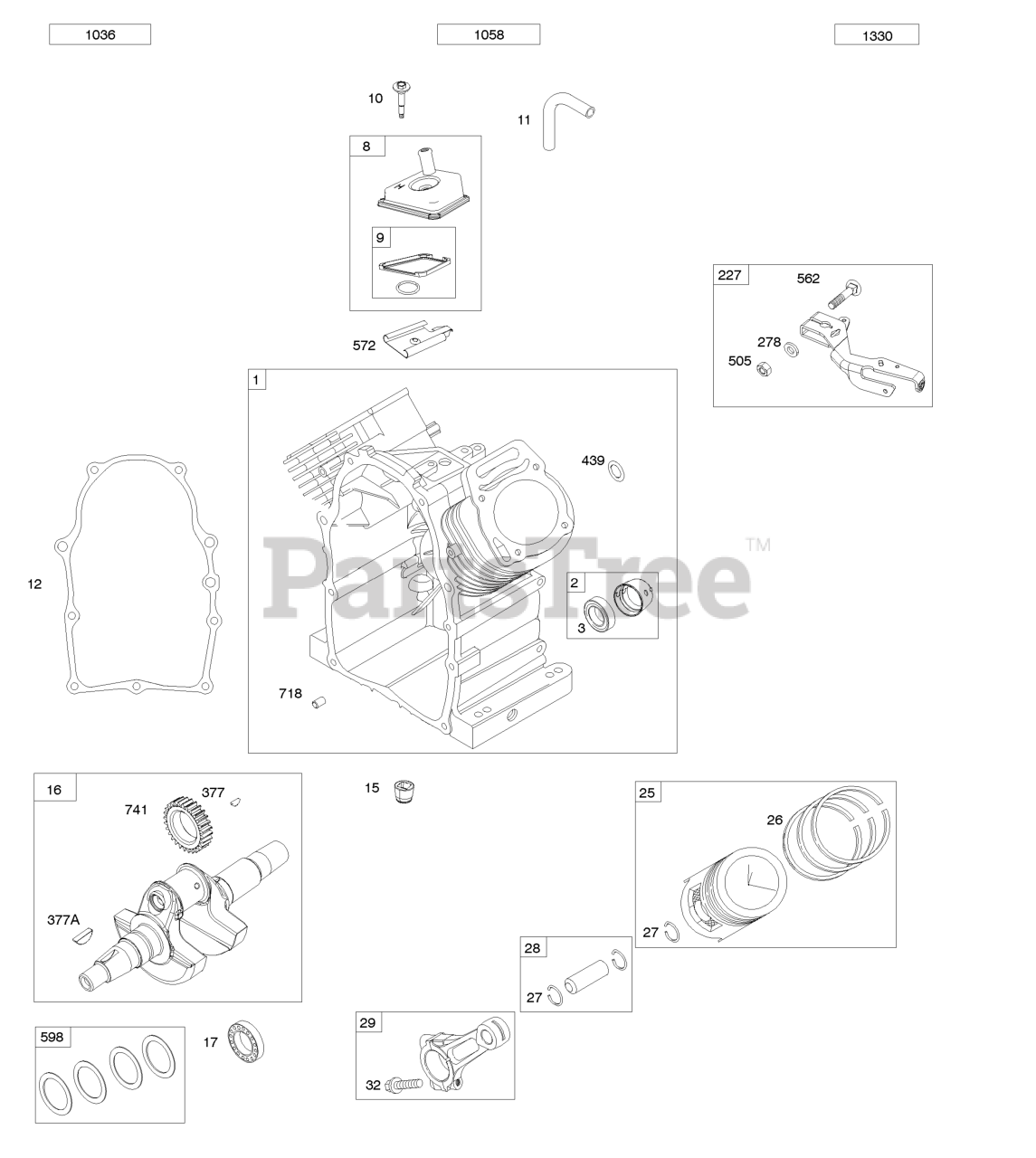

355447-0110-G2 - Briggs & Stratton Horizontal Engine Cylinder, Crankshaft, Piston/Rings/Rods Parts Diagram

Horizontal Engine

Cylinder, Crankshaft, Piston/Rings/Rods Parts Diagram

  • Title

1

Briggs & Stratton 841579

Cylinder Assembly

$624.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 808534

Kit-Bushing/Seal

Note: (Magneto Side)

$20.99

$

In Stock, only 3 left!

0

3

Briggs & Stratton 805101S

Seal-Oil

Note: (Magneto Side)

$5.99

$

In Stock, Qty 6

0

8

Briggs & Stratton 808984

Breather Assembly

$53.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 844986

Gasket-Breather

$8.49

$

In Stock, Qty 7

0

10

Briggs & Stratton 690751

Screw

Note: (Breather Assembly)

$7.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 845490

Tube-Breather

Note: (Valley)

$17.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 845254

Gasket-Crankcase

Note: (Steel Core Gasket)

$45.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 691680

PLUG, Oil Drain

$5.99

$

In Stock, only 3 left!

0

16

Briggs & Stratton 845485

Crankshaft
(Superseded to 84002656)

$415.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 843827

Bearing-Ball

$36.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 843792

Piston Assembly-STD

Note: (Standard)

$104.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 843821

Piston Assembly-STD

Note: (.020" Oversize)

$133.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 843822

Ring Set-STD

Note: (.020" Oversize)

$53.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 843793

Ring Set-STD

Note: (Standard)

$52.99

$

In Stock, only 3 left!

0

27

Briggs & Stratton 690683

Lock-Piston Pin

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 844541

Pin-Piston

$17.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 807900S

Rod-Connecting

$

$

Not available

32

Briggs & Stratton 690698

Screw

Note: (Connecting Rod)

$7.49

$

In Stock, only 3 left!

0

227

Briggs & Stratton 845484

Lever-Governor Control

$26.99

$

Usually ships in 2-12 days

0

278

Briggs & Stratton 842122

Washer

Note: (Governor Control Lever)

$5.49

$

In Stock, only 1 left!

0

377

Briggs & Stratton 691639

KEY, Woodruff

$4.49

$

In Stock, only 3 left!

0

377A

Briggs & Stratton 808095

Key-Woodruff

$13.99

$

In Stock, only 1 left!

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

In Stock, only 1 left!

0

505

Briggs & Stratton 844752

Nut

Note: (Governor Control Lever)

$3.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 690239

Bolt

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

572

Briggs & Stratton 690686

Baffle-Breather

$14.99

$

In Stock, only 1 left!

0

598

Briggs & Stratton 807625

Shim-End Play

Note: (Crankshaft or Camshaft Bearing)

$19.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 806469

Pin-Locating

$5.99

$

In Stock, only 2 left!

0

741

Briggs & Stratton 846085

Gear-Timing

$19.99

$

In Stock, only 1 left!

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1058

Briggs & Stratton 279771TRI

Operator's Manual

$

$

Not available

1330

Briggs & Stratton 272144

Repair Manual

$48.99

$

In Stock, only 1 left!

0
