355447-0120-01 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump Group Parts Diagram

Horizontal Engine

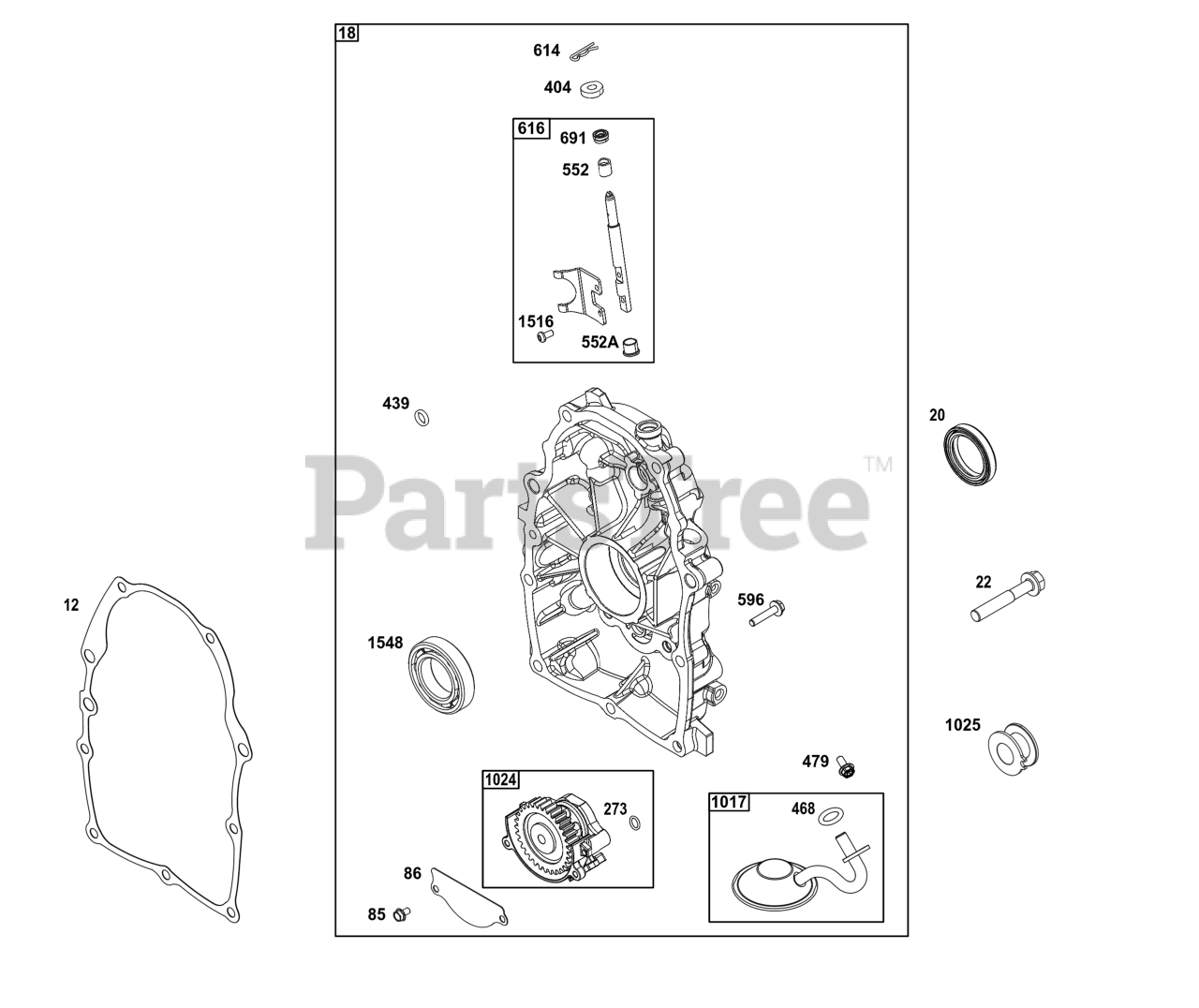

Crankcase Cover/Sump Group Parts Diagram

  • Title

12

Briggs & Stratton 845254

GASKET-CRANKCASE

$47.99

$

In Stock, Qty 7

0

18

Briggs & Stratton 84002116

COVER, Crankcase

$277.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 805049S

SEAL, Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 807362

SCREW

Note: (Crankcase Cover/Sump)

$3.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 841233

SCREW

Note: (Gear Cover)

$3.99

$

In Stock, Qty 14

0

86

Briggs & Stratton 690745

COVER, Gear

$6.99

$

Usually ships in 2-12 days

0

273

Briggs & Stratton 690681

SEAL, O-Ring

Note: (Oil Pump)

$6.49

$

In Stock, only 2 left!

0

404

Briggs & Stratton 690704

WASHER

Note: (Governor Crank)

$5.99

$

In Stock, only 1 left!

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

In Stock, Qty 20+

0

468

Briggs & Stratton 690690

SEAL, O-Ring

Note: (Oil Pump Screen)

$6.49

$

Usually ships in 2-12 days

0

479

Briggs & Stratton 807084

SCREW

Note: (Oil Pump Screen)

$3.99

$

In Stock, only 3 left!

0

552

Briggs & Stratton 690701

BUSHING, Governor Crank

$8.49

$

In Stock, only 1 left!

0

552A

Briggs & Stratton 806686

BUSHING, Governor Crank

$8.99

$

Usually ships in 2-12 days

0

596

Briggs & Stratton 691492

SCREW

Note: (Oil Pump)

$4.49

$

In Stock, Qty 12

0

614

Briggs & Stratton 691550

PIN, Cotter

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 806685

CRANK, Governor

$34.99

$

In Stock, only 1 left!

0

691

Briggs & Stratton 842826

SEAL, Governor Shaft

$7.99

$

Usually ships in 2-12 days

0

1017

Briggs & Stratton 690900

SCREEN, Oil Pump

$32.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 843825

PUMP, Oil

$119.99

$

Usually ships in 2-12 days

0

1025

Briggs & Stratton 690689

SPOOL, Governor

$24.99

$

In Stock, only 2 left!

0

1516

Briggs & Stratton 846459

SCREW

Note: (Governor Crank)

$3.99

$

Usually ships in 2-12 days

0

1548

Briggs & Stratton 843827

BEARING, Ball

Note: (Crankcase Cover/Sump)

$38.99

$

In Stock, only 2 left!

0
