355Z (B 2446) (5900775) - Snapper 46" Zero-Turn Mower, 24hp 46" Mower Deck Group - Pulleys, Belts & Idler Arm Parts Diagram

46" Zero-Turn Mower, 24hp

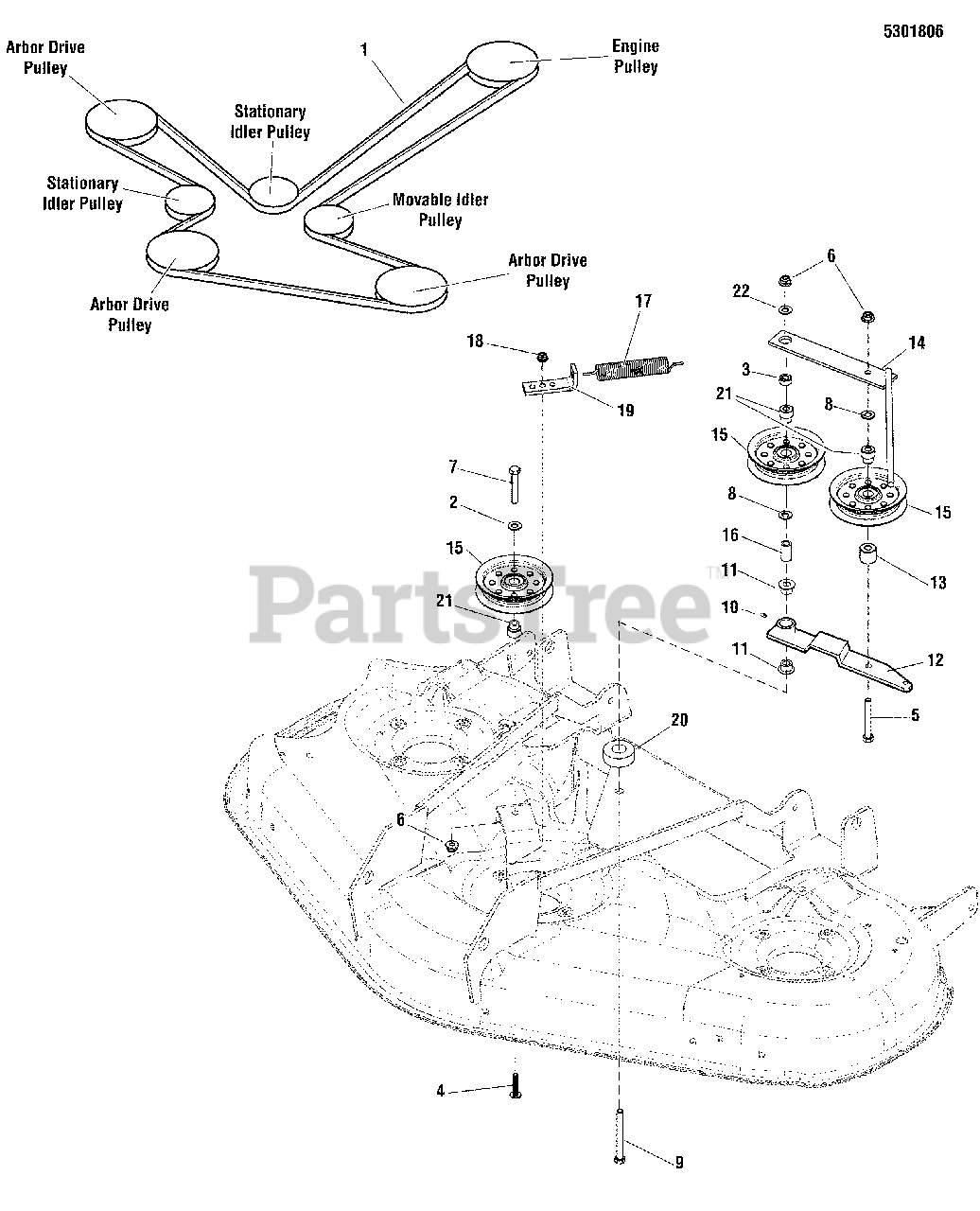

46" Mower Deck Group - Pulleys, Belts & Idler Arm Parts Diagram

  • Title

1

Snapper 5102145

BELT, A-SEC, 145.5 EL, LG ARAMID, WRAP
(Superseded to 5102145YP)

$121.99

$

Usually ships in 2-12 days

0

2

Snapper 5025401

WASHER, 3/8 USS
(Superseded to 5025401YP)

$3.99

$

In Stock, only 1 left!

0

3

Snapper 5044933

SPACER, .39 X .75 X .38
(Superseded to 5044933SM)

$4.99

$

In Stock, only 1 left!

0

4

Snapper 1960373

CAPSCREW, Hex Washer Head Taptite, 5/16-18X1.000BLK
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

5

Snapper 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 5

0

6

Snapper 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 6

0

8

Snapper 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, only 1 left!

0

10

Snapper 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 1676148

BUSHING, 0.628IDX0.751ODX0.400LG PWDR MTL
(Superseded to 1676148SM)

$5.99

$

In Stock, Qty 12

0

12

Snapper 5402228D

WELD, DECK, IDLER ARM - RED
(Superseded to 5400398DYP)

$88.99

$

Usually ships in 2-12 days

0

13

Snapper 5047125

SPACER, .39 X 1.00 X .88
(Superseded to 5047125SM)

$7.99

$

In Stock, Qty 7

0

14

Snapper 5403492D

WELD, MOUNT, IDLER TENSION - RED
(Superseded to 5403492DYP)

$36.99

$

In Stock, only 1 left!

0

15

Snapper 5021002

PULLEY, IDLER, 4.06OD, .669ID, .75W STL
(Superseded to 5021002SM)

$40.99

$

In Stock, Qty 5

0

16

Snapper 1674669

SPACER, 0.39 IDX0.625ODX1.15 LG CASE HARD
(Superseded to 1674669SM)

$11.99

$

In Stock, only 3 left!

0

17

Snapper 1715435

SPRING, EXTENSION, 1.00
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 5

0

18

Snapper 1931277

NUT, HEX FLANGE 5/16-18, WHIZ LK SM, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

19

Snapper 5405675D

BRACKET, SPRING ANCHOR - RED
(Superseded to 5405675DYP)

$13.99

$

Usually ships in 2-12 days

0

20

Snapper 5101465

SPACER, .39 X 1.75 X .63, YZ
(Superseded to 5101465YP)

$19.99

$

Usually ships in 2-12 days

0

21

Snapper 5049184

SPACER, HYDRO PULLEY
(Superseded to 5049184SM)

$5.49

$

Usually ships in 2-12 days

0

22

Snapper 5025165

WASHER, 3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 3 left!

0
