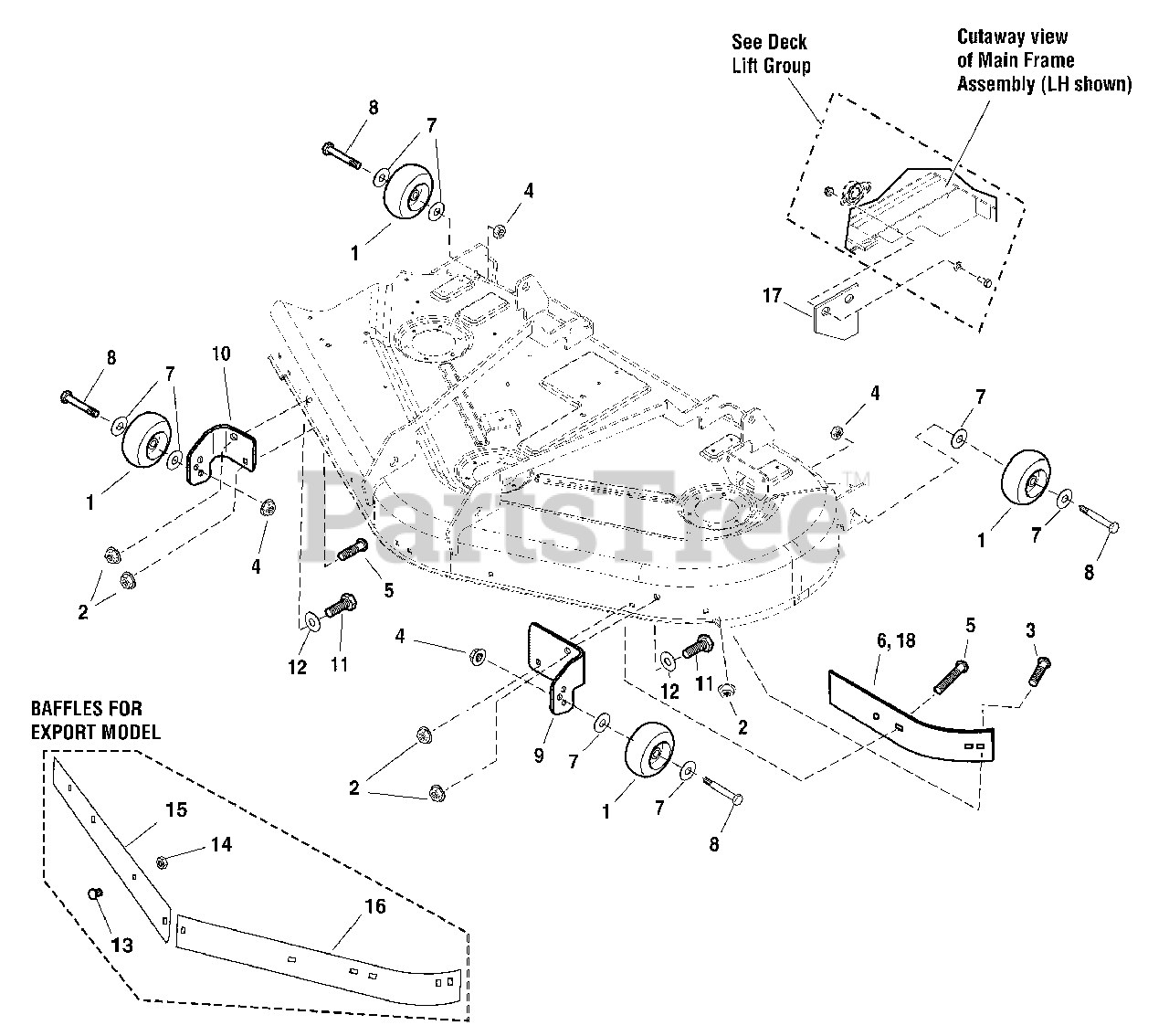

355Z (B 2450) (5900682) - Snapper 50" Zero-Turn Mower, 24hp 44" & 50" Mower Deck - Rollers Group Parts Diagram

50" Zero-Turn Mower, 24hp

44" & 50" Mower Deck - Rollers Group Parts Diagram

  • Title

1

Snapper 1714760

WHEEL, 2.00 WIDE 3.92 DIA 0.531 ID POLY
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

2

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 5025145X6

BOLT, 5/16-18 X 3/4", CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

6

Snapper 1724538A

SHORT BLOWOUT BAFFLE BLACK
(Superseded to 1724538ASM)

Note: (S/N: 2012651720 & Below)

$45.99

$

In Stock, only 1 left!

0

7

Snapper 80003590

WASHER, 0500 (0.51 ID X 0.87 OD X .06 THK) BLK
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 2108765

BOLT, WHEEL 3/8-16 X 2.781 .750 THRD YELLOW
(Superseded to 2108765SM)

$6.49

$

In Stock, Qty 20+

0

9

Snapper 5049017D

BRACKET, GUAGE WHEEL, LH
(Superseded to 1719852ASM)

$26.99

$

In Stock, only 1 left!

0

10

Snapper 5049018D

BRACKET, GAUGE WHEEL, RH
(Superseded to 1719853ASM)

$29.99

$

In Stock, Qty 5

0

11

Snapper 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

13

Snapper 5025145X6

BOLT, 5/16-18 X 3/4", CARRIAGE
(Superseded to 5025145X6SM)

Note: (EXPORT MODELS ONLY)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

Note: (EXPORT MODELS ONLY)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 1735184A

BAFFLE, BLOWOUT RH 50" MWR - BLACK
(Superseded to 1735184ASM)

Note: (EXPORT MODELS ONLY)

$128.99

$

Usually ships in 2-12 days

0

16

Snapper 1716870A

BAFFLE, BLOWOUT LH 50" MWR - BLACK
(Superseded to 1716870ASM)

Note: (EXPORT MODELS ONLY)

$164.99

$

In Stock, only 1 left!

0

17

Snapper 5401053D

PLATE, DECK STOP
(Superseded to 5401053DYP)

Note: (FOR 44" MODELS ONLY)

$26.99

$

Usually ships in 2-12 days

0

18

Snapper 1734181A

BAFFLE FRONT 50" MOWER
(Superseded to 1734181ASM)

Note: (S/N: 2012651721 & Above)

$43.99

$

Usually ships in 2-12 days

0
