355Z (B 2654) (5900748) - Snapper 54" Zero-Turn Mower, 26hp Decklift Group Parts Diagram

54" Zero-Turn Mower, 26hp

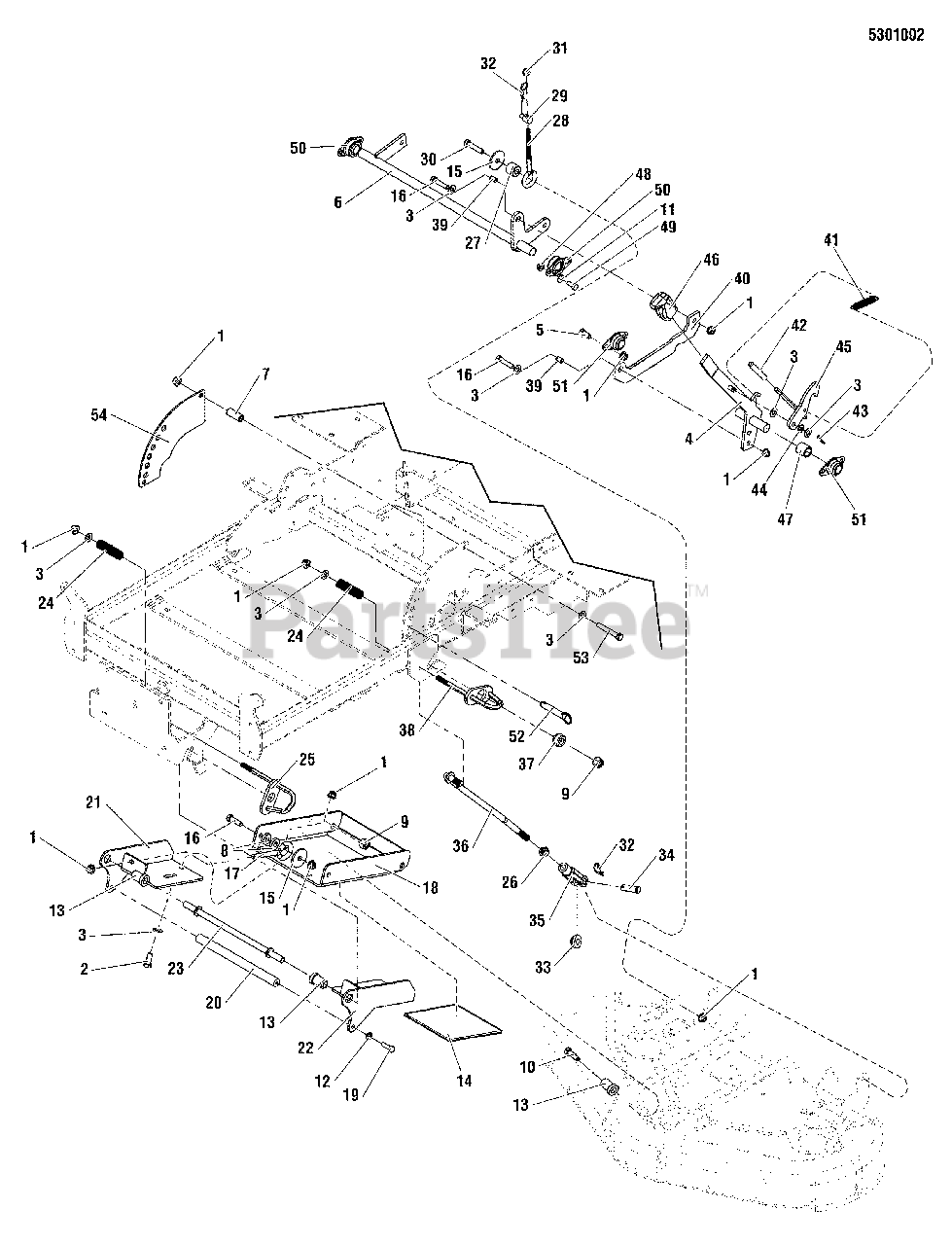

Decklift Group Parts Diagram

  • Title

1

Snapper 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

2

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

3

Snapper 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 5403057D

WELD, HANDLE, DECK LIFT - RED
(Superseded to 5403057DYP)

$50.99

$

Usually ships in 2-12 days

0

5

Snapper 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 5403041D

WELD, SHAFT, REAR DECK LIFT - RED
(Superseded to 5403041DYP)

$75.99

$

In Stock, only 1 left!

0

7

Snapper 5048264

SPACER, .39 X .63 X 1.50
(Superseded to 5048264SM)

$5.99

$

Usually ships in 2-12 days

0

8

Snapper 5044960

SPACER, .39 X 1.00 X .25
(Superseded to 5044960SM)

$5.49

$

In Stock, only 3 left!

0

9

Snapper 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

Usually ships in 2-12 days

0

10

Snapper 5025018X20

BOLT, 1/2-20 X 2-1/2" GD5 CZ
(Superseded to 5025018X20SM)

$6.99

$

In Stock, only 1 left!

0

11

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

12

Snapper 5025170

WASHER, 5/16 LOCK YZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 5100144

SPACER, .53 X 1.00 X 1.00
(Superseded to 5100144SM)

$6.99

$

Usually ships in 2-12 days

0

14

Snapper 5101008

SAFETY WALK, 4.50 X 3.50
(Superseded to 5101008SM)

$7.49

$

Usually ships in 2-12 days

0

15

Snapper 5025305

WASHER, .41 X 1.75 X .14
(Superseded to 5025305SM)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 1 left!

0

17

Snapper 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

18

Snapper 5403965D

WELD, DECK HANGER SUPPORT, 26/54 - RED
(Superseded to 5403965DYP)

$82.99

$

Usually ships in 2-12 days

0

19

Snapper 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 5100135

SHAFT, HANDLE, DECK MOUNT
(Superseded to 5100135SM)

$32.99

$

Usually ships in 2-12 days

0

21

Snapper 5400392D

WELD, DECK HANGER, LH
(Superseded to 5400392DYP)

$40.99

$

Usually ships in 2-12 days

0

22

Snapper 5400391D

WELD, DECK HANGER, RH
(Superseded to 5400391DYP)

$40.99

$

In Stock, only 1 left!

0

23

Snapper 5100177

SHAFT, HANGER
(Superseded to 5100177SM)

$8.99

$

Usually ships in 2-12 days

0

24

Snapper 5021102

SPRING, COMPRESSION
(Superseded to 5021102SM)

$7.49

$

Usually ships in 2-12 days

0

25

Snapper 5400401D

WELD, QUICK RELEASE HANDLE - RED
(Superseded to 5400401DYP)

$19.99

$

Usually ships in 2-12 days

0

26

Snapper 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, only 2 left!

0

27

Snapper 5047125

SPACER, .39 X 1.00 X .88
(Superseded to 5047125SM)

$7.99

$

In Stock, Qty 8

0

28

Snapper 5025489

EYE BOLT, 3/8-16 X 6", 3" THRDS, WELDED
(Superseded to 5025489YP)

$23.99

$

Usually ships in 2-12 days

0

29

Snapper 5100985

ADJUSTER, BRAKE LINKAGE
(Superseded to 5100985YP)

$23.99

$

Usually ships in 2-12 days

0

30

Snapper 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, Qty 5

0

31

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

32

Snapper 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

33

Snapper 5048258

BUSHING, DECK SUPPORT
(Superseded to 5048258SM)

$11.99

$

In Stock, Qty 6

0

34

Snapper 5025328X12

PIN, CLEVIS, 1/2 X 1 1/2, YZP
(Superseded to 5025328X12SM)

$4.99

$

In Stock, only 2 left!

0

35

Snapper 5023174

CLEVIS, 1/2-20, STEEL
(Superseded to 5023174SM)

$16.99

$

Usually ships in 2-12 days

0

36

Snapper 5100170

ROD, DECK LIFT LINKAGE
(Superseded to 5100170SM)

$31.99

$

Usually ships in 2-12 days

0

37

Snapper 5100351

BUSHING, REAR QUICK TACH
(Superseded to 5100351SM)

$5.99

$

In Stock, only 2 left!

0

38

Snapper 5400839D

WELD, QUICK RELEASE HANDLE, REAR - RED
(Superseded to 5400839DYP)

$19.99

$

Usually ships in 2-12 days

0

39

Snapper 5101448

SPACER, .38 X .50 X .38, YZ
(Superseded to 5101448YP)

$7.49

$

Usually ships in 2-12 days

0

40

Snapper 5048733D

LINK, DECK LIFT SHAFT
(Superseded to 5048733DYP)

$20.99

$

Usually ships in 2-12 days

0

41

Snapper 5020639

SPRING, EXTENSION
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

42

Snapper 5023198

COVER, VINYL HANDLE
(Superseded to 5023198SM)

$4.49

$

Usually ships in 2-12 days

0

43

Snapper 5025203X6

PIN, COTTER, 1/8" X 3/4
(Superseded to 5025203X6SM)

$3.99

$

In Stock, only 1 left!

0

44

Snapper 5023202

WASHER, WAVE, M10
(Superseded to 5023202SM)

$5.49

$

Usually ships in 2-12 days

0

45

Snapper 5048884D

WELD, DECK LOCK
(Superseded to 5048884DYP)

$22.99

$

Usually ships in 2-12 days

0

46

Snapper 5100171

GRIP, BLACK FLEXIBLE
(Superseded to 5100171SM)

$13.99

$

In Stock, only 1 left!

0

47

Snapper 5048335

SPACER, .76 X 1.00 X 1.00
(Superseded to 5048335SM)

$7.99

$

Usually ships in 2-12 days

0

48

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

49

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

50

Snapper 5100561

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5100561SM)

$14.99

$

In Stock, only 2 left!

0

51

Snapper 5021098

BEARING, BRONZE FLANGE, 3/4
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 7

0

52

Snapper 5100179

HITCH PIN ASSEMBLY, 1/2" X 2.50"
(Superseded to 5100179SM)

$29.99

$

Usually ships in 2-12 days

0

53

Snapper 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

Usually ships in 2-12 days

0

54

Snapper 5400370D

PLATE, DECK HEIGHT- INNER -RED
(Superseded to 5400370DYP)

$14.99

$

Usually ships in 2-12 days

0
