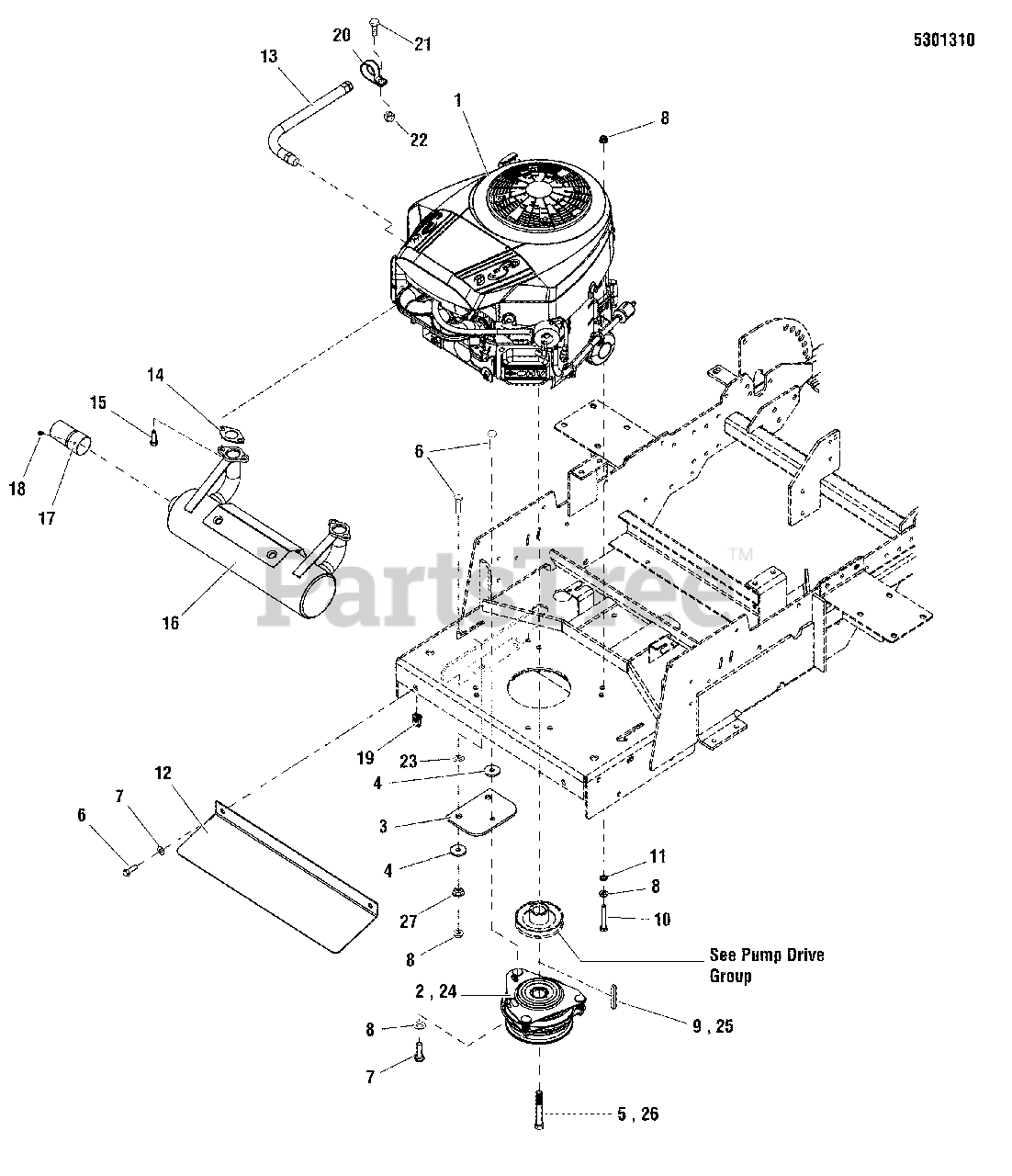

355Z (B 2654 DLR) (5900768) - Snapper 54" Zero-Turn Mower, 26hp Engine & PTO Group Parts Diagram

54" Zero-Turn Mower, 26hp

Engine & PTO Group Parts Diagram

  • Title

1

Snapper 44P777-0133-G1

* ENGINE, 26HP ELS BRIGGS, Mod. 44P777-0133-G1

$

$

Currently unavailable

2

Snapper 7075672

CLUTCH, ELECTRIC, OGURA GT2.5, NZM
(Superseded to 7075672YP)

$501.99

$

Usually ships in 2-12 days

0

3

Snapper 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

4

Snapper 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

5

Snapper 5047632

BOLT, CRANKSHAFT, 7/16X2-3/4, PATCH YZ
(Superseded to 5102865)

$5.49

$

In Stock, only 1 left!

0

6

Snapper 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 5050407X24

KEY, 1/4" SQ. X 3.00
(Superseded to 5050407X24YP)

$6.49

$

Usually ships in 2-12 days

0

10

Snapper 5025011X18

BOLT, 5/16-18 X 2-1/4" GD5 YZ
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

11

Snapper 5025188

WASHER, 5/16" INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 5403059D

PLATE, HEAT SHIELD - RED
(Superseded to 5403059DYP)

$47.99

$

Usually ships in 2-12 days

0

13

Snapper 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

14

Snapper 273485

GASKET, EXHAUST
(Superseded to 690970)

$4.99

$

In Stock, Qty 20+

0

15

Snapper 690341

SCREW

$5.99

$

In Stock, only 2 left!

0

16

Snapper 5100907

MUFFLER, B&S-ELS 22-26HP
(Superseded to 5100907SM)

$

$

Not available

17

Snapper 5100969

EXTENSION, TAILPIPE, 3"
(Superseded to 5100969SM)

$20.99

$

Usually ships in 2-12 days

0

18

Snapper 5021808X8

SCREW
(Superseded to 5021808X8SM)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper 5022308

BODY CLIP, 5/16-18 X 1/2 DEEP
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 9

0

20

Snapper 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

22

Snapper 5025391

NUT, 1/4-20 HEX NYLON FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

24

Snapper 5101529

CLUTCH, WARNER ELECTRIC, I-5219-104
(Superseded to 5101529YP)

$336.99

$

Usually ships in 2-12 days

0

25

Snapper 5050407X8

KEY, 1/4 SQ. X 1.00
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 2 left!

0

26

Snapper 5025055X16

BOLT, 5/16-18 X 2 GD5 TFL
(Superseded to 5025055X16SM)

$3.99

$

Usually ships in 2-12 days

0

27

Snapper 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, only 2 left!

0
