355Z (B 2654 DLR) (5900768) - Snapper 54" Zero-Turn Mower, 26hp Fuel Tank & Mount Group Parts Diagram

54" Zero-Turn Mower, 26hp

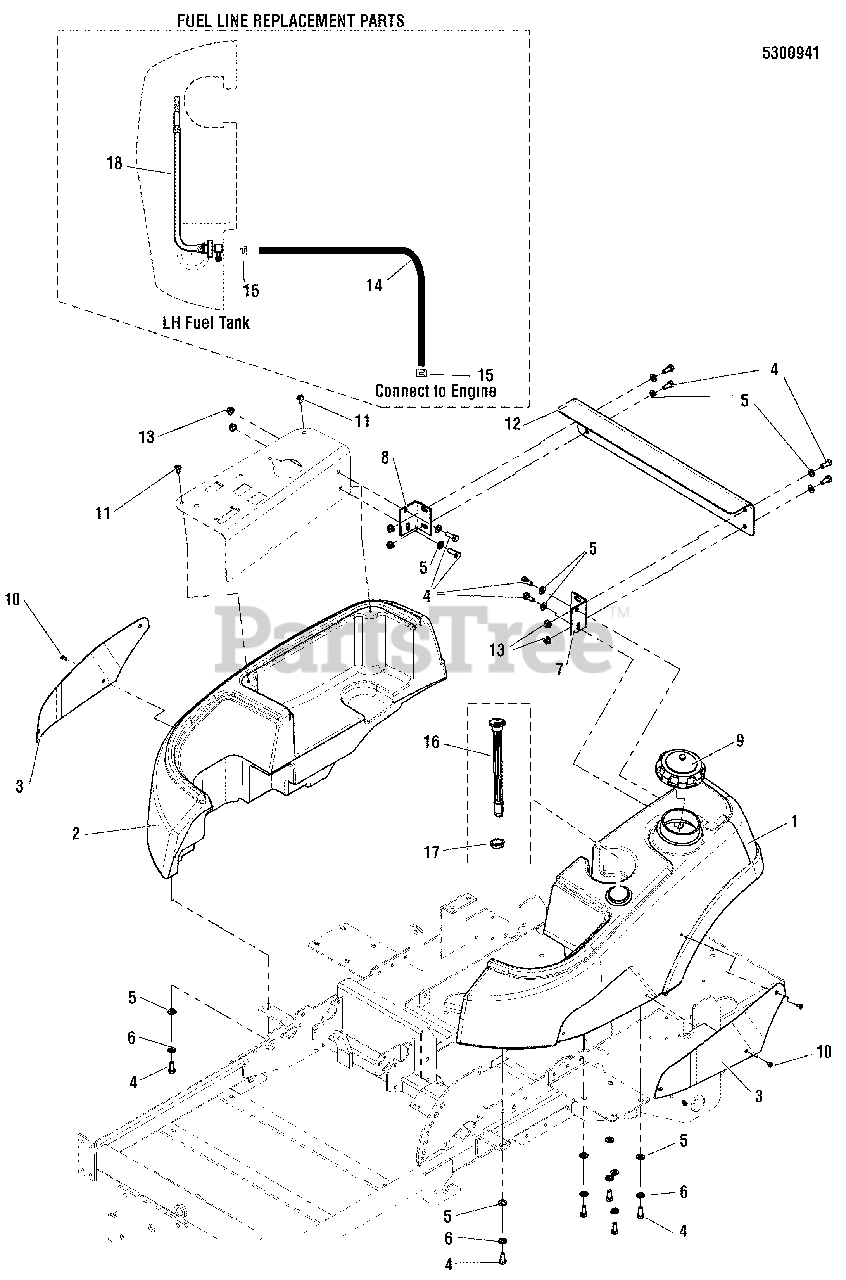

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Snapper 5102544

TANK, FUEL, LH
(Superseded to 5102544YP)

Note: (S/N: 2014648789 - 2014923025)

$530.99

$

Usually ships in 2-12 days

0

1

Snapper 5101181

TANK, FUEL, LH
(Superseded to 5102544YP)

Note: (S/N: 2014648788 & BELOW)

$530.99

$

Usually ships in 2-12 days

0

1

Snapper 5102988

TANK, FUEL, LH
(Superseded to 5102988YP)

Note: (S/N: 2014923026 & ABOVE)

$422.99

$

Usually ships in 2-12 days

0

2

Snapper 5048752

TANK, FUEL, RH
(Superseded to 5048752SM)

$296.99

$

Usually ships in 2-12 days

0

3

Snapper 5048909D

PLATE, FUEL TANK BADGE
(Superseded to 5048909DYP)

$30.99

$

In Stock, only 2 left!

0

4

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

5

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Snapper 5025170

WASHER, 5/16 LOCK YZ
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

7

Snapper 5400836D

BRACKET, REAR SUPPORT - LH - RED
(Superseded to 5400836DYP)

$8.99

$

Usually ships in 2-12 days

0

8

Snapper 5048763D

BRACKET, REAR SUPPORT - RH
(Superseded to 5048763DYP)

$6.99

$

Usually ships in 2-12 days

0

9

Snapper 5101272

FUEL CAP, 3.5", VENTED
(Superseded to 5101651SM)

Note: (S/N: 2014923025 & BELOW)

$26.99

$

In Stock, only 4 left!

0

10

Snapper 5025386

SCREW, #10-24 X 3/8 ALLEN BHBZ
(Superseded to 5025386SM)

$3.99

$

In Stock, only 2 left!

0

11

Snapper 5025299X4

SCREW, 1/4-20 X 1/2 ALLEN BH
(Superseded to 5106469)

$2.99

$

Usually ships in 2-12 days

0

12

Snapper 5403004D

PLATE, SUPPORT, REAR TANK - SNP RED
(Superseded to 5403004DYP)

$47.99

$

Usually ships in 2-12 days

0

13

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 5050831X28

HOSE, 1/4 FUEL 28" LONG
(Superseded to 5050831X28SM)

$12.99

$

Usually ships in 2-12 days

0

15

Snapper 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 5023197

FUEL GAUGE (SV)
(Superseded to 5023197SM)

$49.99

$

Usually ships in 2-12 days

0

17

Snapper 5022917X1

GROMMET (SV)
(Superseded to 5022917X1SM)

$7.49

$

In Stock, Qty 8

0

18

Snapper 5101190

PICK UP TUBE ASSM, FUEL TANK (SV)
(Superseded to 5101190SM)

$36.99

$

Usually ships in 2-12 days

0
