356442-0601-H5 - Briggs & Stratton Horizontal Engine Fuel Supply Group Parts Diagram

Horizontal Engine

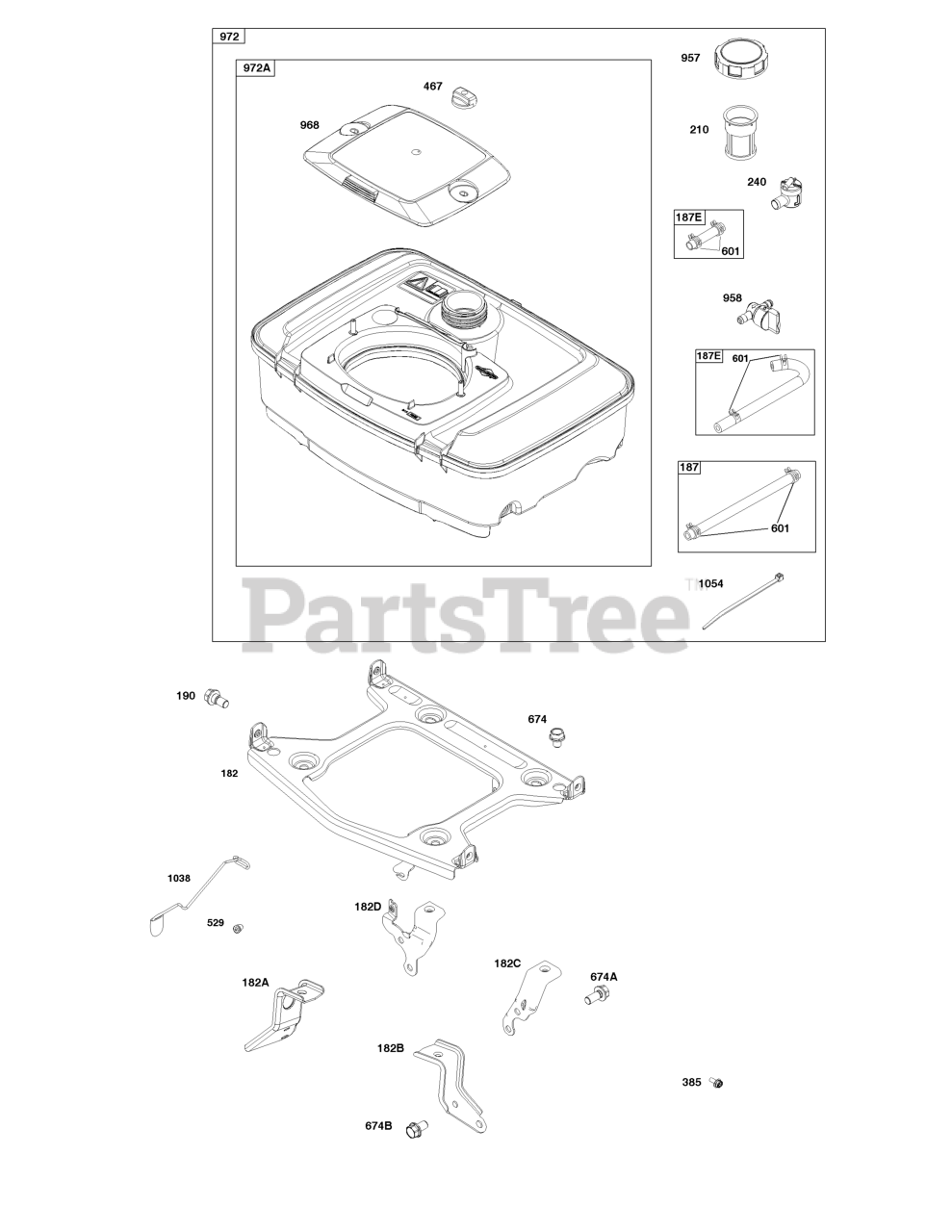

Fuel Supply Group Parts Diagram

  • Title

182

Briggs & Stratton 841601

BRACKET, Fuel Tank

$118.99

$

Usually ships in 2-12 days

0

182A

Briggs & Stratton 841600

BRACKET, Fuel Tank

$28.99

$

In Stock, only 1 left!

0

182B

Briggs & Stratton 691524

BRACKET, Fuel Tank

$38.99

$

Usually ships in 2-12 days

0

182C

Briggs & Stratton 691525

BRACKET, Fuel Tank

$22.99

$

Usually ships in 2-12 days

0

182D

Briggs & Stratton 691520

BRACKET, Fuel Tank

$38.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 844556

LINE, Fuel

$28.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 844557

LINE, Fuel

$23.99

$

Usually ships in 2-12 days

0

187E

Briggs & Stratton 692106

LINE, Fuel

Note: (0.50 ID x 2.25 Lg)

$13.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 692199

SCREW

Note: (Fuel Tank) (1/4-20 x 0.62 )

$3.49

$

In Stock, only 3 left!

0

210

Briggs & Stratton 691370

STRAINER, Fuel

$8.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 844545

FILTER, Fuel

$13.99

$

In Stock, Qty 7

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump) (M6x14mm)

$3.49

$

In Stock, Qty 12

0

467

Briggs & Stratton 844618

KNOB, Air Cleaner Cover

$7.99

$

In Stock, only 2 left!

0

529

Briggs & Stratton 691527

GROMMET

$7.49

$

In Stock, only 2 left!

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 20+

0

674

Briggs & Stratton 845964

SCREW

Note: (Fuel Tank Bracket) (M8x10mm)

$4.49

$

In Stock, only 4 left!

0

674A

Briggs & Stratton 692062

SCREW

Note: (Fuel Tank Bracket) (M8x18mm)

$3.49

$

In Stock, only 3 left!

0

674B

Briggs & Stratton 692056

SCREW

Note: (Fuel Tank Bracket) (M8x14mm)

$5.99

$

In Stock, Qty 5

0

957

Briggs & Stratton 846987

CAP, Fuel Tank

$21.99

$

In Stock, Qty 5

0

958

Briggs & Stratton 692008

VALVE, Fuel Shut Off
(Superseded to 698183)

$8.49

$

In Stock, Qty 12

0

968

Briggs & Stratton 844559

COVER, Air Cleaner

$61.99

$

Usually ships in 2-12 days

0

972

Briggs & Stratton 845137

TANK, Fuel

$399.99

$

In Stock, only 2 left!

0

972A

Briggs & Stratton 844558

TANK, Fuel

$464.99

$

Usually ships in 2-12 days

0

1038

Briggs & Stratton 844555

ROD, Fuel Shut Off

$14.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

TIE, Cable

$4.49

$

Usually ships in 2-12 days

0
