356447-0036-B5 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump and Lubrication Group Parts Diagram

Horizontal Engine

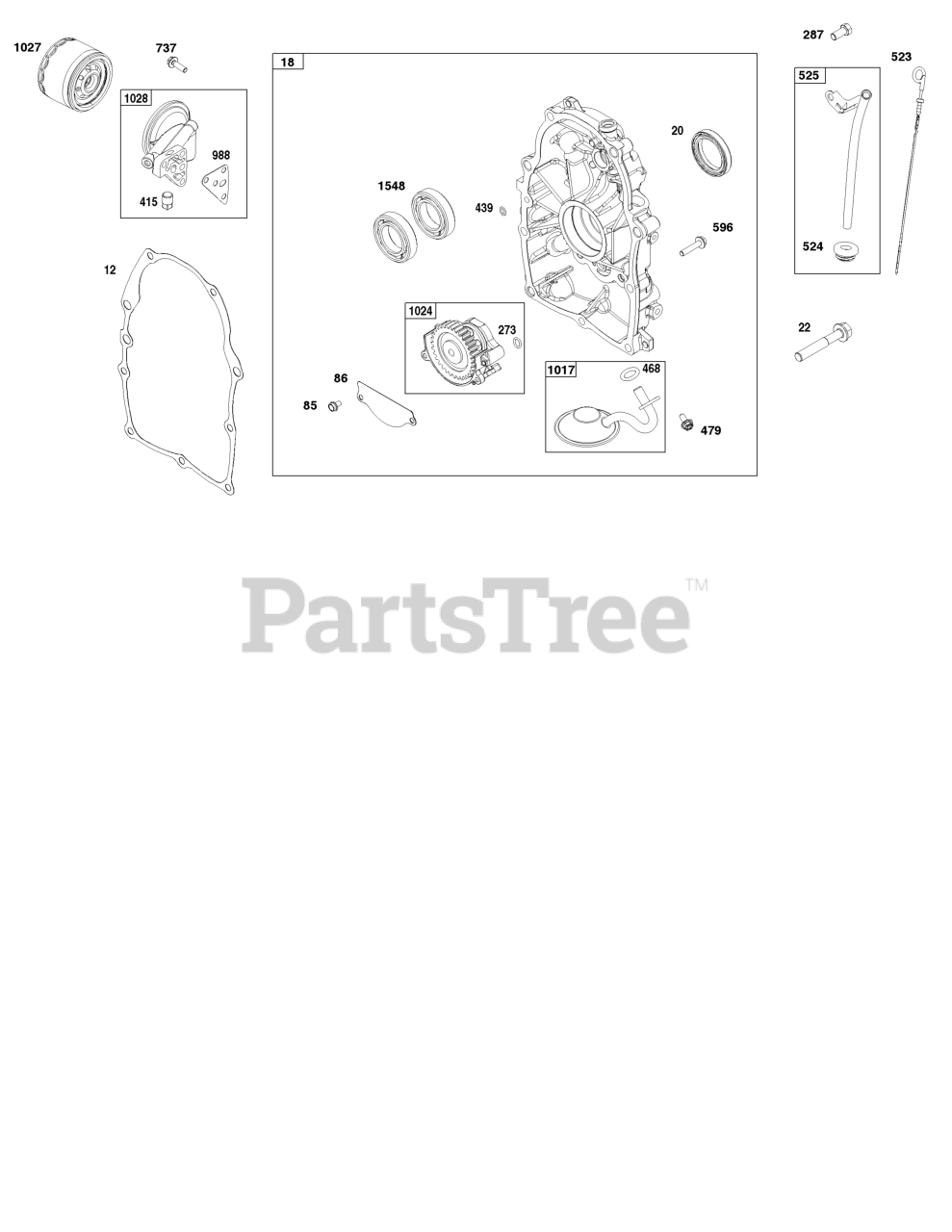

Crankcase Cover/Sump and Lubrication Group Parts Diagram

  • Title

12

Briggs & Stratton 846487

GASKET, Crankcase

$43.99

$

In Stock, Qty 20+

0

18

Briggs & Stratton 844734

COVER, Crankcase

$256.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 805049S

SEAL, Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 807362

SCREW

Note: (Crankcase Cover/Sump)

$3.99

$

In Stock, Qty 5

0

85

Briggs & Stratton 841233

SCREW

Note: (Gear Cover)

$3.99

$

In Stock, Qty 7

0

86

Briggs & Stratton 690745

COVER, Gear

$6.99

$

Usually ships in 2-12 days

0

273

Briggs & Stratton 690681

SEAL, O-Ring

Note: (Oil Pump Screen)

$6.49

$

In Stock, only 2 left!

0

287

Briggs & Stratton 806660

SCREW

Note: (Dipstick Tube)

$4.49

$

In Stock, only 1 left!

0

415

Briggs & Stratton 794903

PLUG

Note: (1/8"-27 NPTF - EXTERNAL SQ)

$5.99

$

In Stock, Qty 6

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

In Stock, only 3 left!

0

468

Briggs & Stratton 690690

SEAL, O-Ring

Note: (Oil Pump Screen)

$6.49

$

Usually ships in 2-12 days

0

479

Briggs & Stratton 807084

SCREW

Note: (Oil Pump Screen)

$3.99

$

In Stock, Qty 20+

0

523

Briggs & Stratton 693175

DIPSTICK

$25.99

$

In Stock, only 3 left!

0

524

Briggs & Stratton 693172

SEAL, O-Ring

Note: (Dipstick Tube)

$5.99

$

In Stock, Qty 7

0

525

Briggs & Stratton 693174

TUBE, Dipstick

$23.99

$

In Stock, only 2 left!

0

596

Briggs & Stratton 691492

SCREW

Note: (Oil Pump)

$4.49

$

In Stock, Qty 12

0

737

Briggs & Stratton 690679

SCREW

Note: (Oil Filter Adapter)

$3.99

$

Usually ships in 2-12 days

0

737

Briggs & Stratton 690679

SCREW

Note: (Oil Filter Adapter)

$3.99

$

Usually ships in 2-12 days

0

988

Briggs & Stratton 692063

GASKET, Oil Adapter

$4.49

$

In Stock, Qty 5

0

1017

Briggs & Stratton 690900

SCREEN, Oil Pump

$32.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 843825

PUMP, Oil

$119.99

$

Usually ships in 2-12 days

0

1027

Briggs & Stratton 842921

FILTER, Oil

$14.99

$

In Stock, Qty 20+

0

1028

Briggs & Stratton 808033

ADAPTER, Oil Filter

$115.99

$

Usually ships in 2-12 days

0

1548

Briggs & Stratton 843827

BEARING, Ball

Note: (Crankcase Cover/Sump)

$38.99

$

In Stock, Qty 7

0
