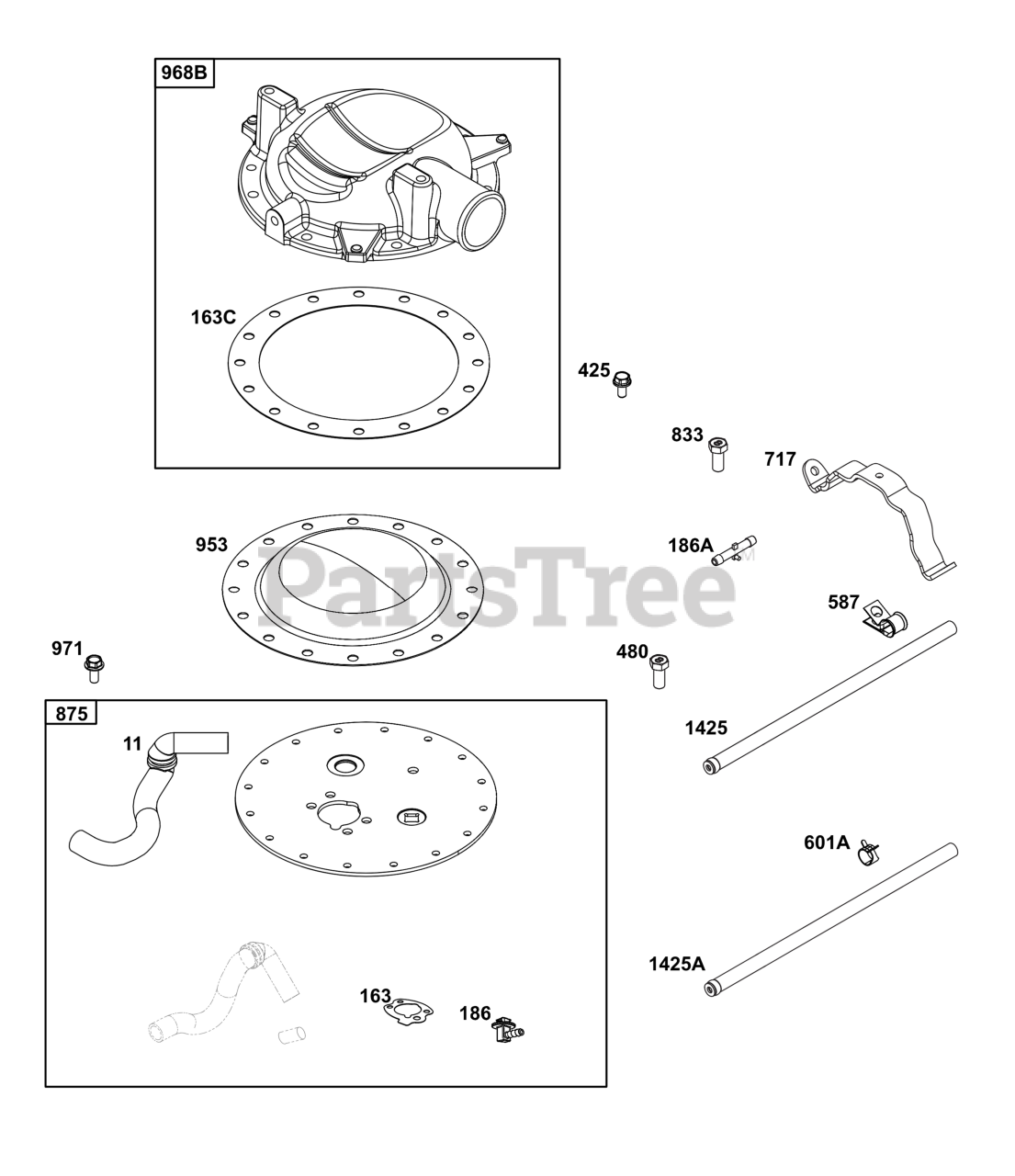

356447-0053-G1 - Briggs & Stratton Horizontal Engine Air Cleaner Group Parts Diagram

Horizontal Engine

Air Cleaner Group Parts Diagram

  • Title

11

Briggs & Stratton 844976

TUBE, Breather

$28.99

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

163C

Briggs & Stratton 841823

GASKET, Air Cleaner

$6.99

$

In Stock, only 2 left!

0

186

Briggs & Stratton 845141

CONNECTOR, Hose

$11.99

$

In Stock, only 2 left!

0

186A

Briggs & Stratton 845121

CONNECTOR, Hose

$6.99

$

Usually ships in 2-12 days

0

425

Briggs & Stratton 847281

SCREW
(Superseded to 691593)

Note: (Air Cleaner Cover)

$3.99

$

In Stock, Qty 5

0

480

Briggs & Stratton 806660

SCREW

Note: (Tube Clamp)

$4.49

$

In Stock, only 1 left!

0

587

Briggs & Stratton 807116

CLAMP, Cable

$5.49

$

In Stock, only 1 left!

0

601A

Briggs & Stratton 845268

CLAMP, Hose

$4.99

$

Usually ships in 2-12 days

0

717

Briggs & Stratton 692153

BRACKET, Air Cleaner

$9.49

$

In Stock, only 2 left!

0

833

Briggs & Stratton 847281

SCREW
(Superseded to 691593)

Note: (Air Cleaner Mounting Strap/Stud)

$3.99

$

In Stock, Qty 5

0

875

Briggs & Stratton 847245

BASE-AIR CLEANER

$69.99

$

Usually ships in 2-12 days

0

953

Briggs & Stratton 845030

SCREEN, Air Cleaner

$86.99

$

Usually ships in 2-12 days

0

968B

Briggs & Stratton 841822

COVER, Air Cleaner

$54.99

$

Usually ships in 2-12 days

0

971

Briggs & Stratton 807084

SCREW

Note: (Air Cleaner Base to Carburetor/Throttle Body)

$3.99

$

In Stock, only 1 left!

0

1425

Briggs & Stratton 844712

HOSE, Purge Line

$32.99

$

Usually ships in 2-12 days

0

1425A

Briggs & Stratton 845717

HOSE-PURGE LINE

$32.99

$

Usually ships in 2-12 days

0
